System Diagram

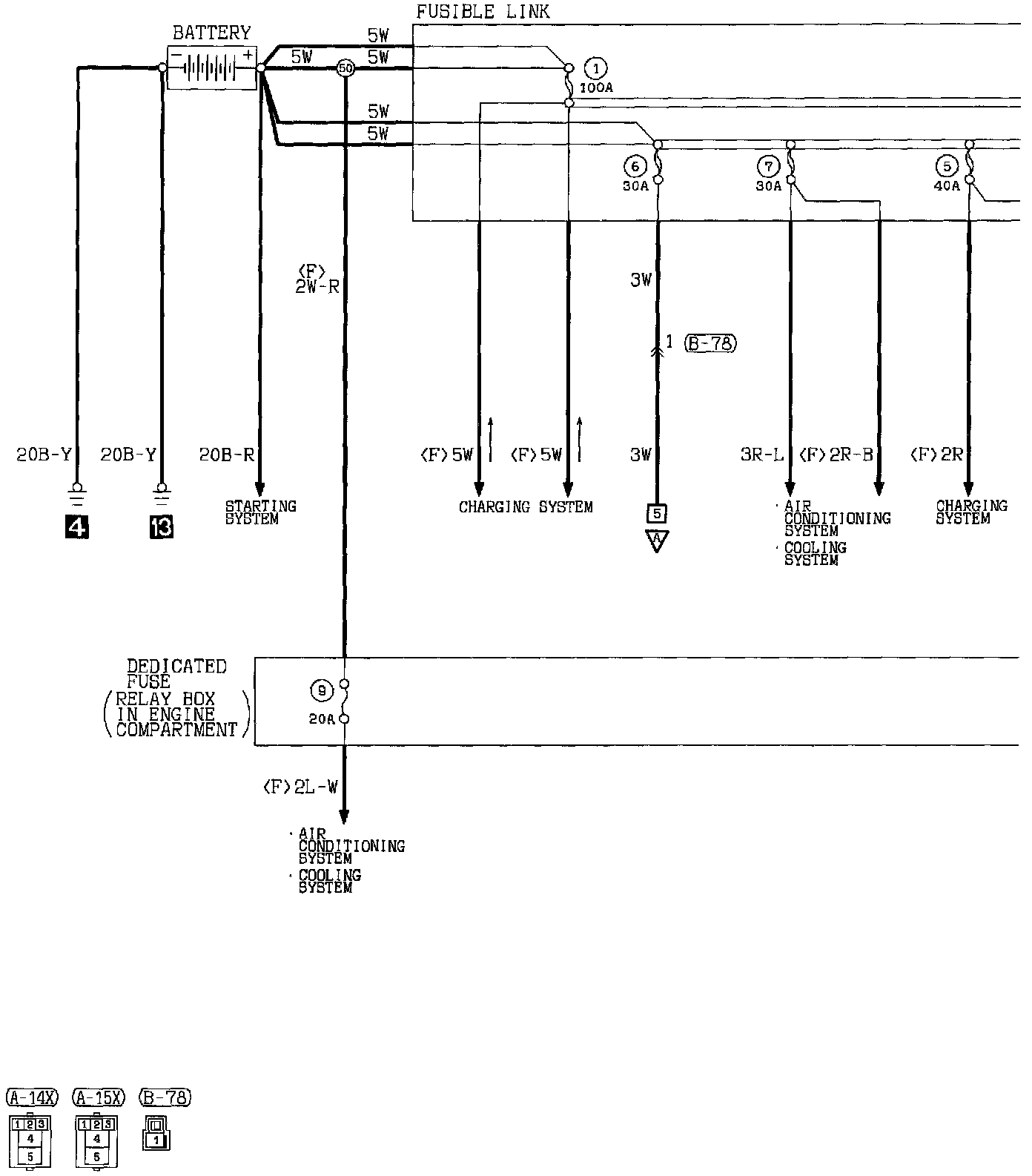

Power Distribution System (Part 1 Of 6):

Battery
Dedicated Fuse (Relay Box In Engine Compartment)
Fusible Link

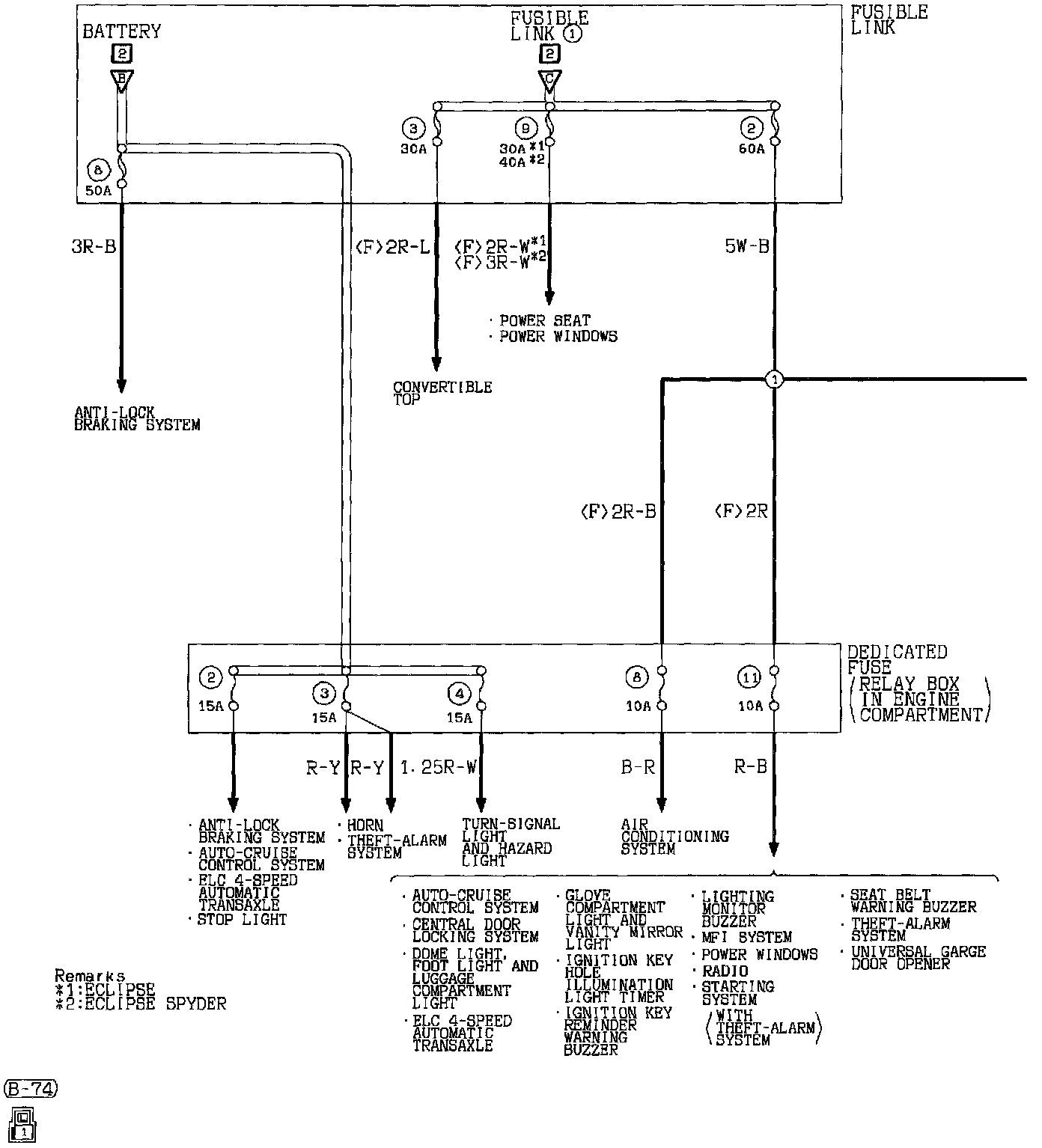

Power Distribution System (Part 2 Of 6):

Dedicated Fuse (Relay Box In Engine Compartment)
Fusible Link
Headlight Relay
Taillight Relay

Power Distribution System (Part 3 Of 6):

Dedicated Fuse (Relay Box In Engine Compartment)
Fusible Link

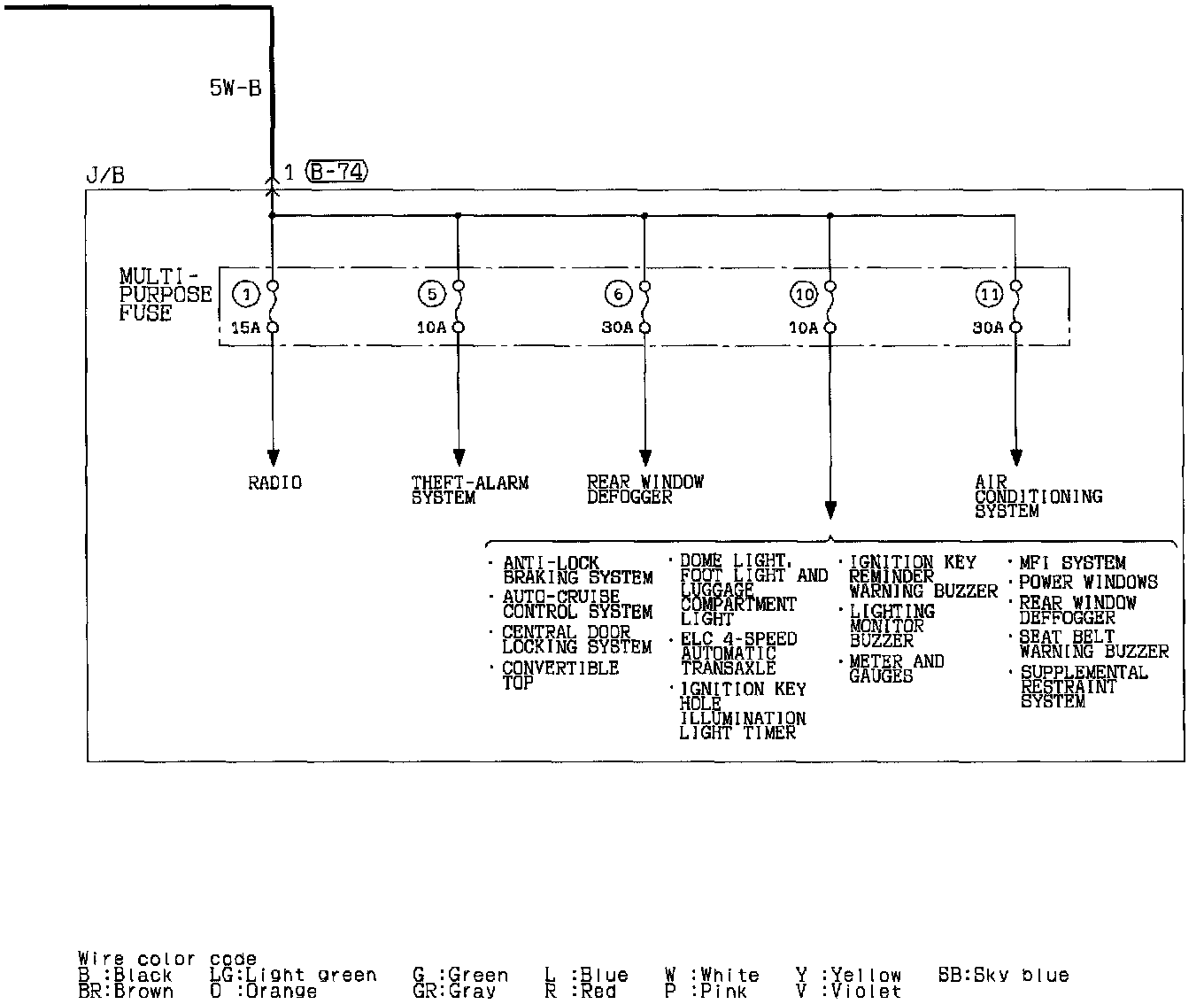

Power Distribution System (Part 4 Of 6):

J/B
- Multi-Purpose Fuse

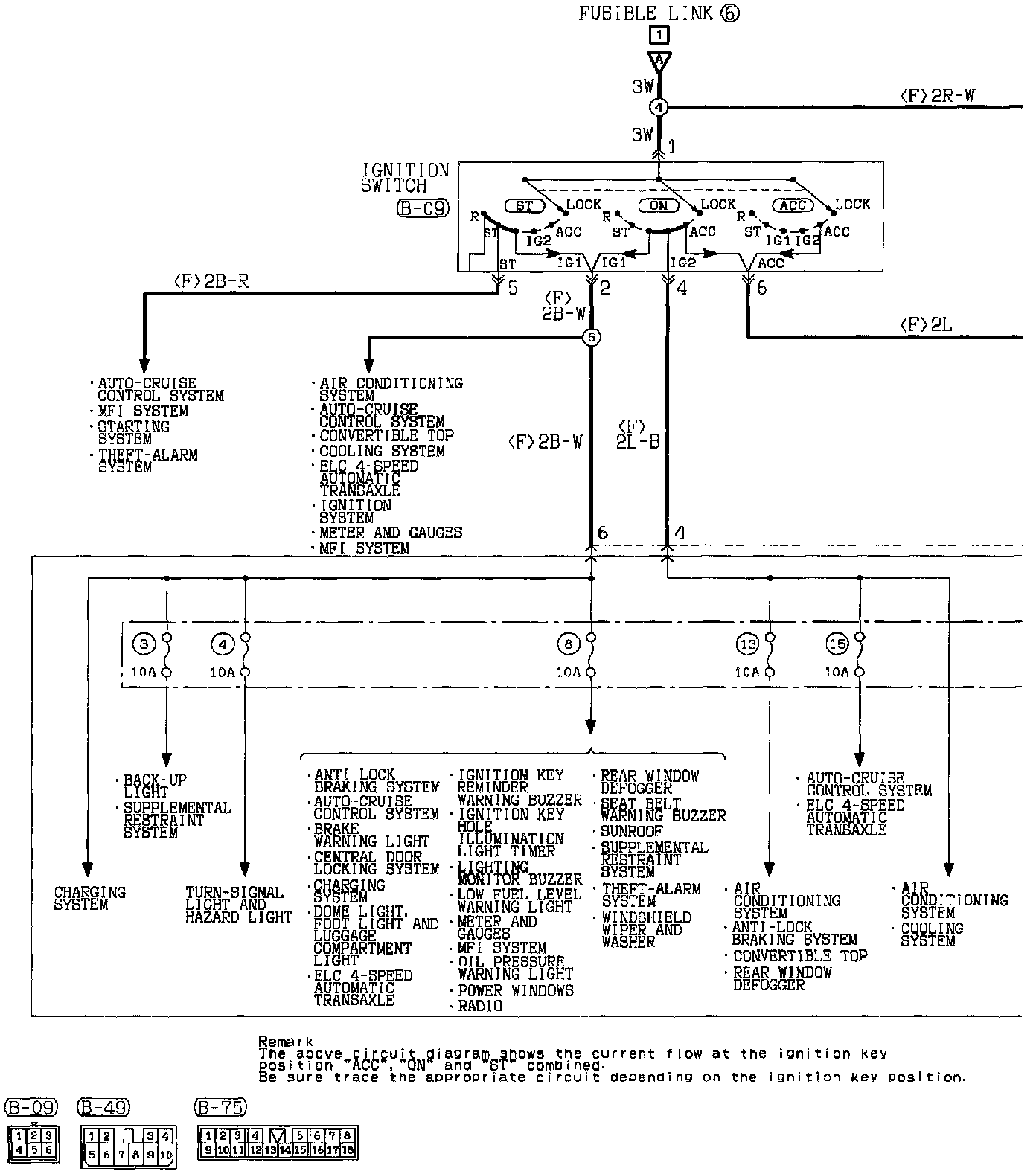

Power Distribution System (Part 5 Of 6):

Ignition Switch
J/B

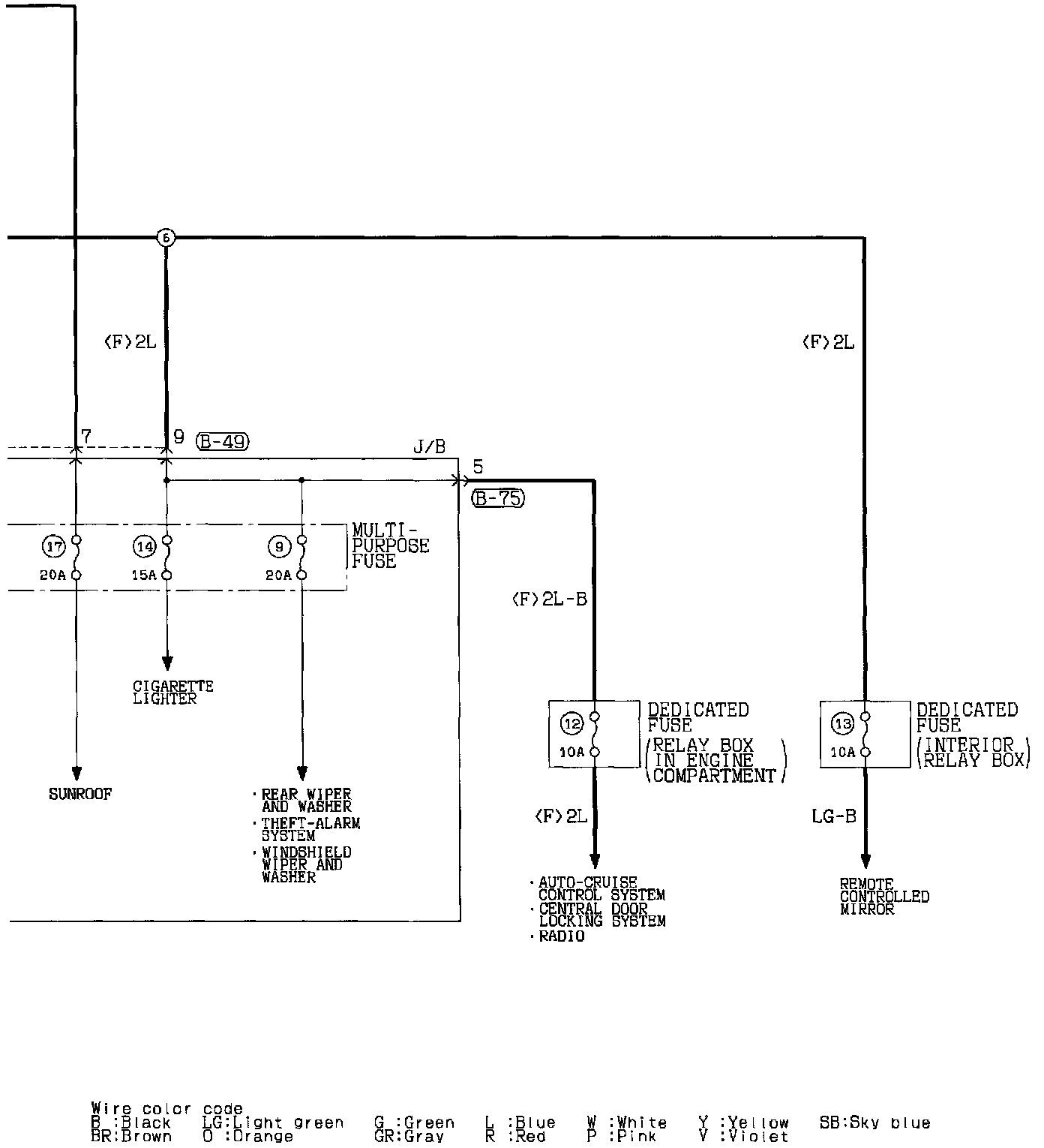

Power Distribution System (Part 6 Of 6):

Dedicated Fuse (Relay Box In Engine Compartment)
Dedicated Fuse (Interior Relay Box)
J/B
