System Diagram

Meter And Gauges (Part 1 Of 3):

Combination Meter
Dedicated Fuse
Engine Control Module
J/B
Oil Pressure Gauge Unit (2.0L Engine)
Rheostat

Meter And Gauges (Part 2 Of 3):

Combination Meter
Engine Coolant Temperature Gauge Unit
Fuel Gauge Unit
J/B
Sub Fuel Gauge Unit

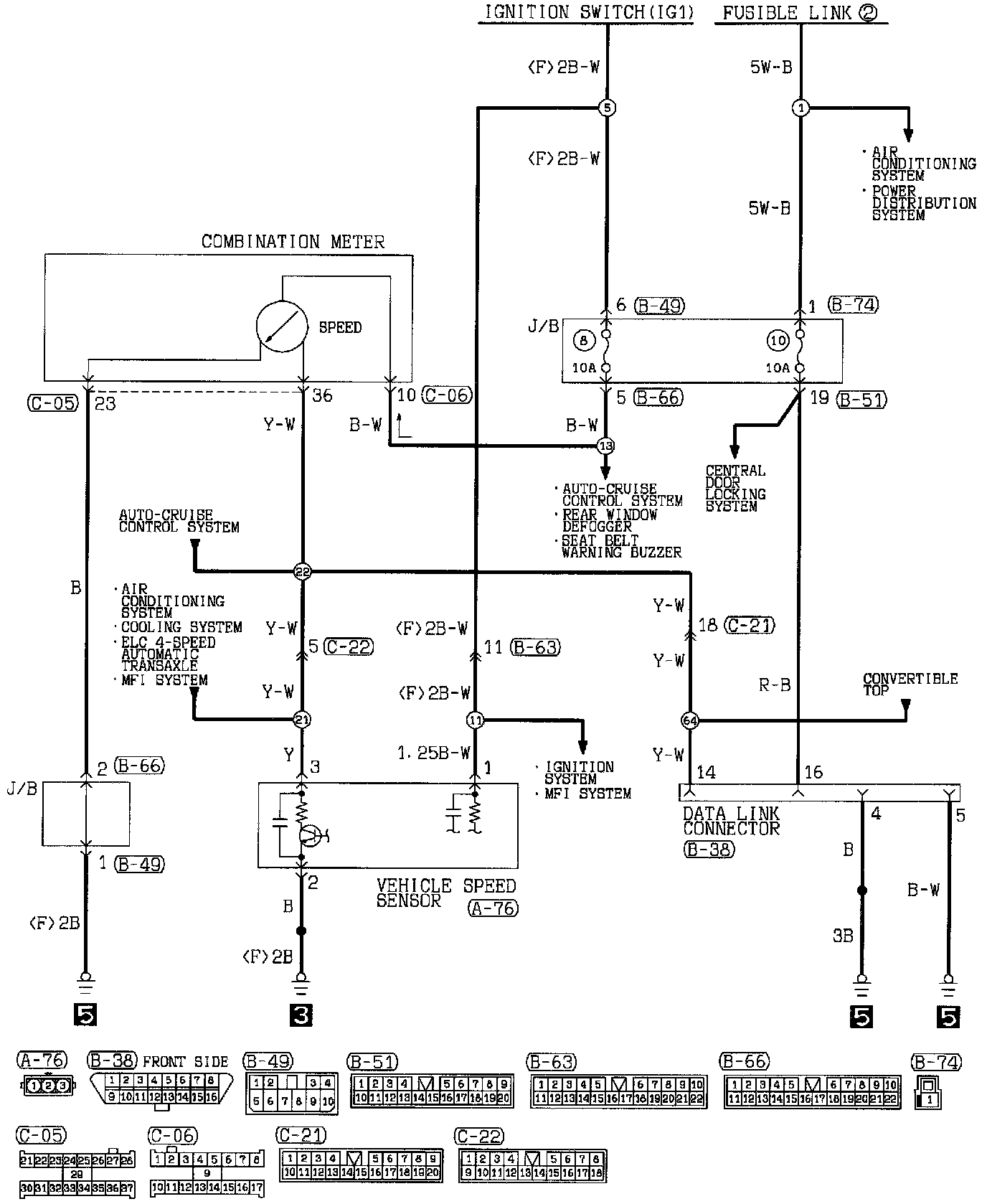

Meter And Gauges (Part 3 Of 3):

Combination Meter
Data Link Connector
Dedicated Fuse
J/B
Vehicle Speed Sensor
