Audible Warning Device
>>
Ignition Key Reminder Warning Buzzer
Ignition Key Reminder Warning Buzzer

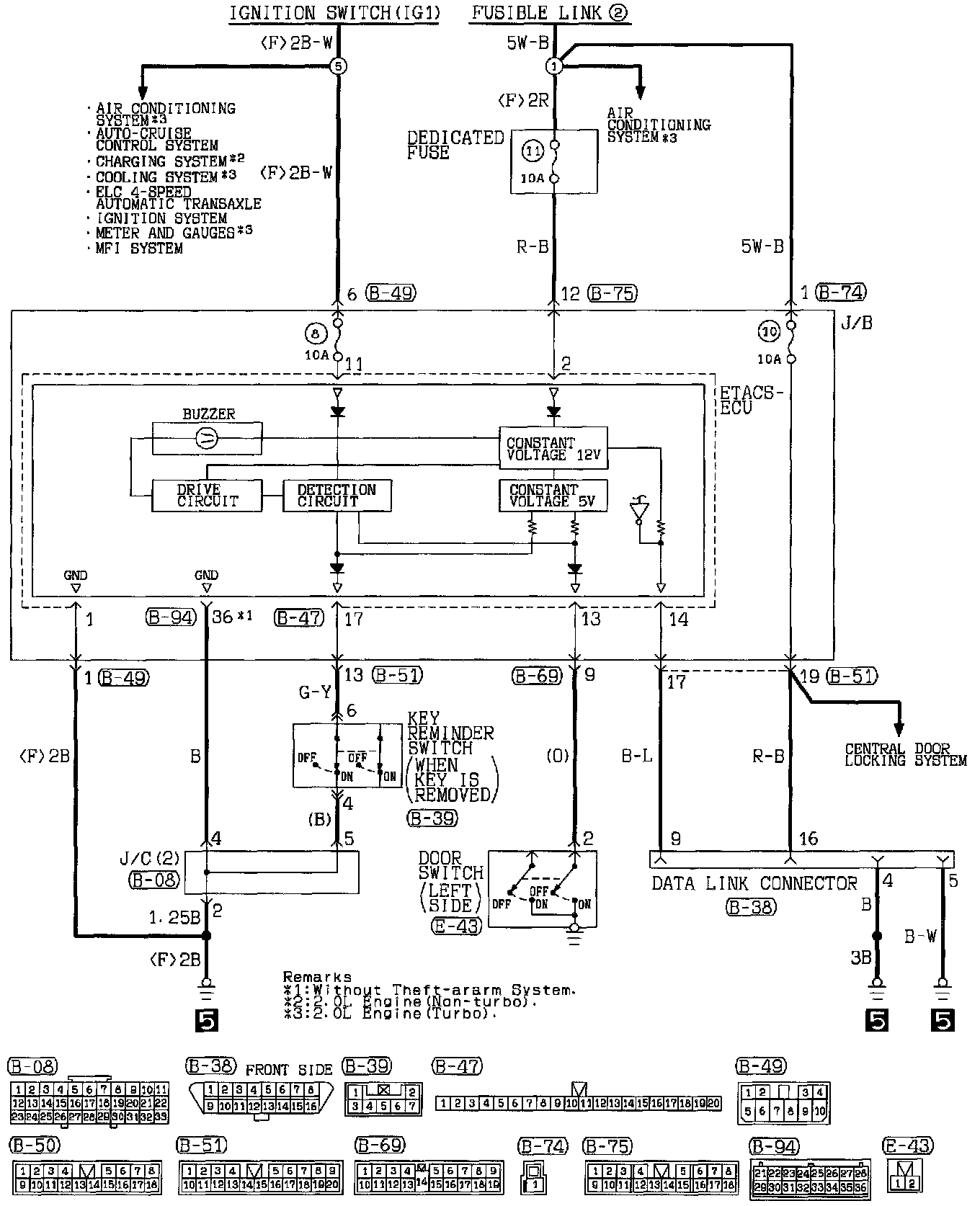

Ignition Key Reminder Warning Buzzer:
