Automatic Transmission

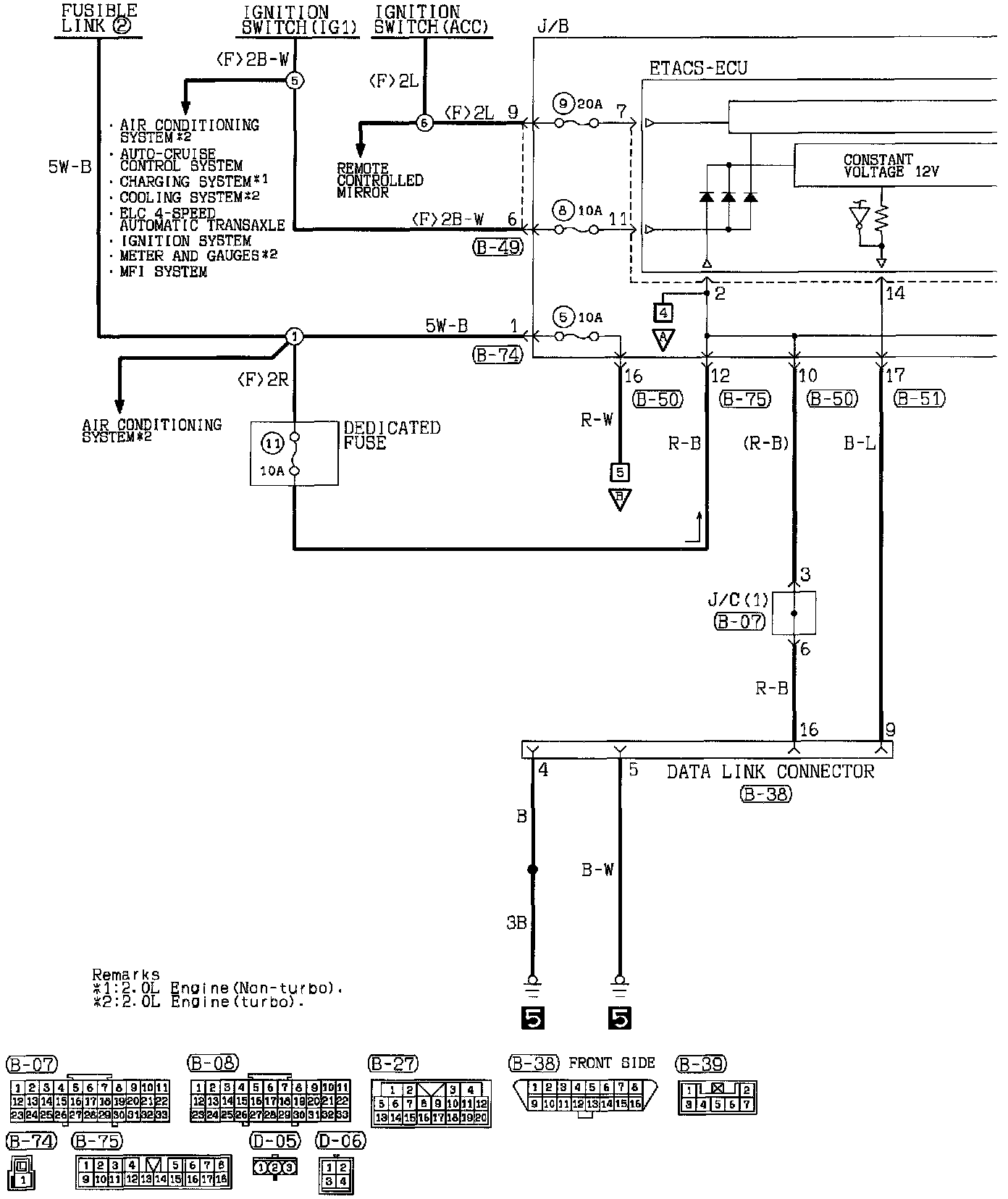

Theft-Alarm System (Part 1 Of 9):

Data Link Connector
Dedicated Fuse
J/B
- ETACS-ECU
J/C (1)

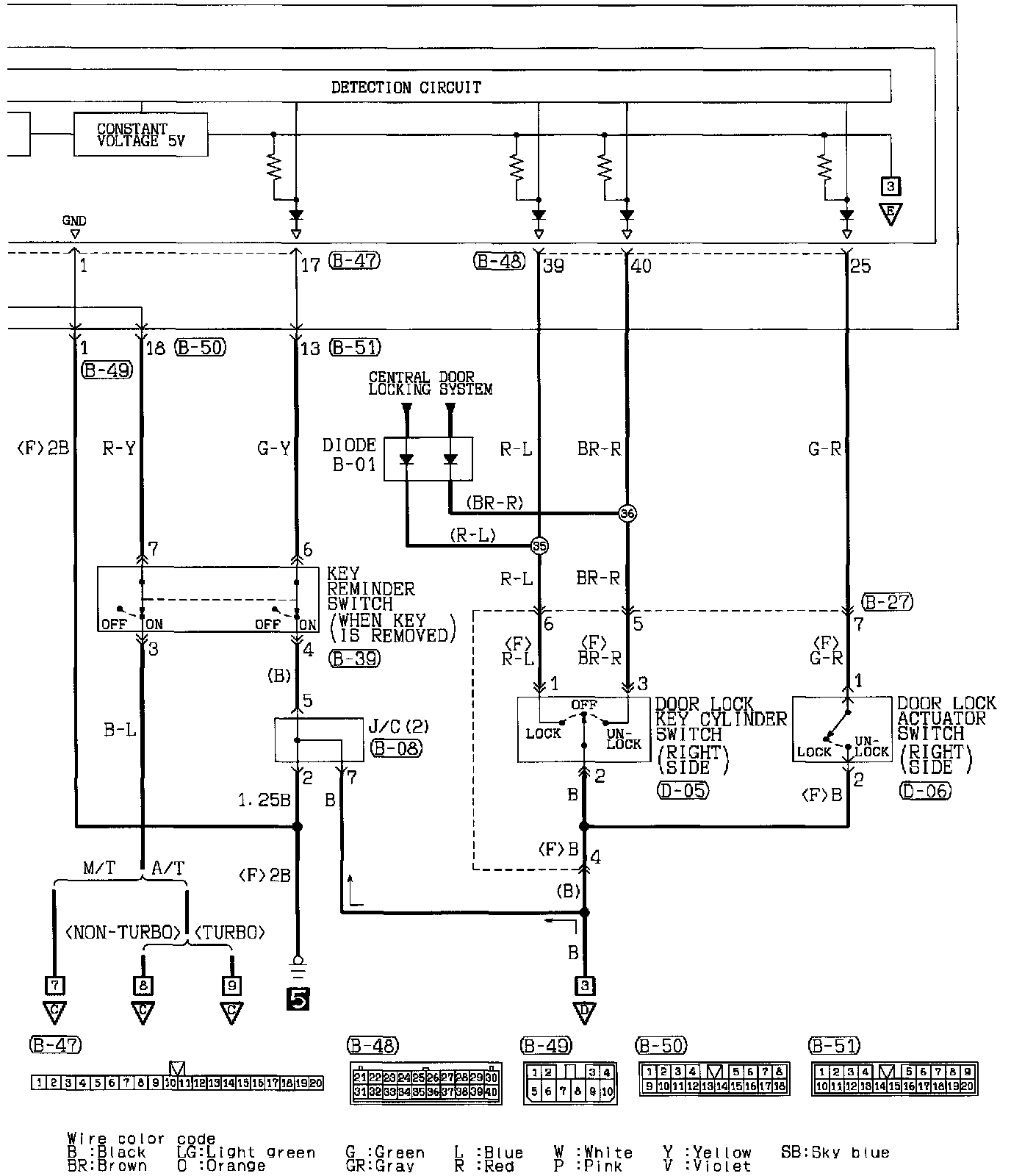

Theft-Alarm System (Part 2 Of 9):

Diode
Door Lock Actuator Switch (Right Side)
Door Lock Key Cylinder Switch (Right Side)
J/B
J/C (2)
Key Reminder Switch (When Key is Removed)

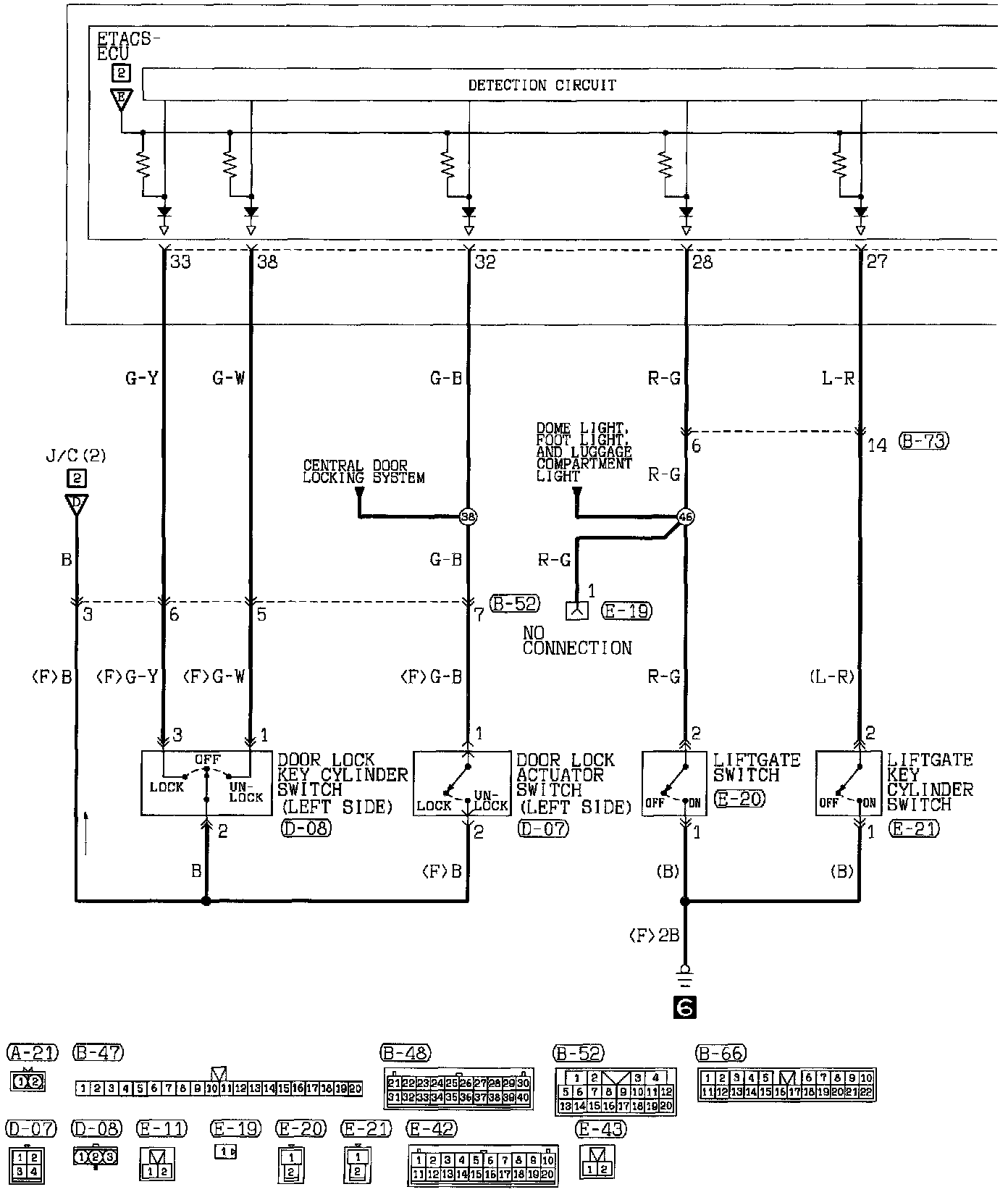

Theft-Alarm System (Part 3 Of 9):

Door Lock Actuator Switch (Left Side)
Door Lock Key Cylinder Switch (Left Side)
J/B
- ETACS-ECU
Liftgate Key Cylinder Switch
Liftgate Switch

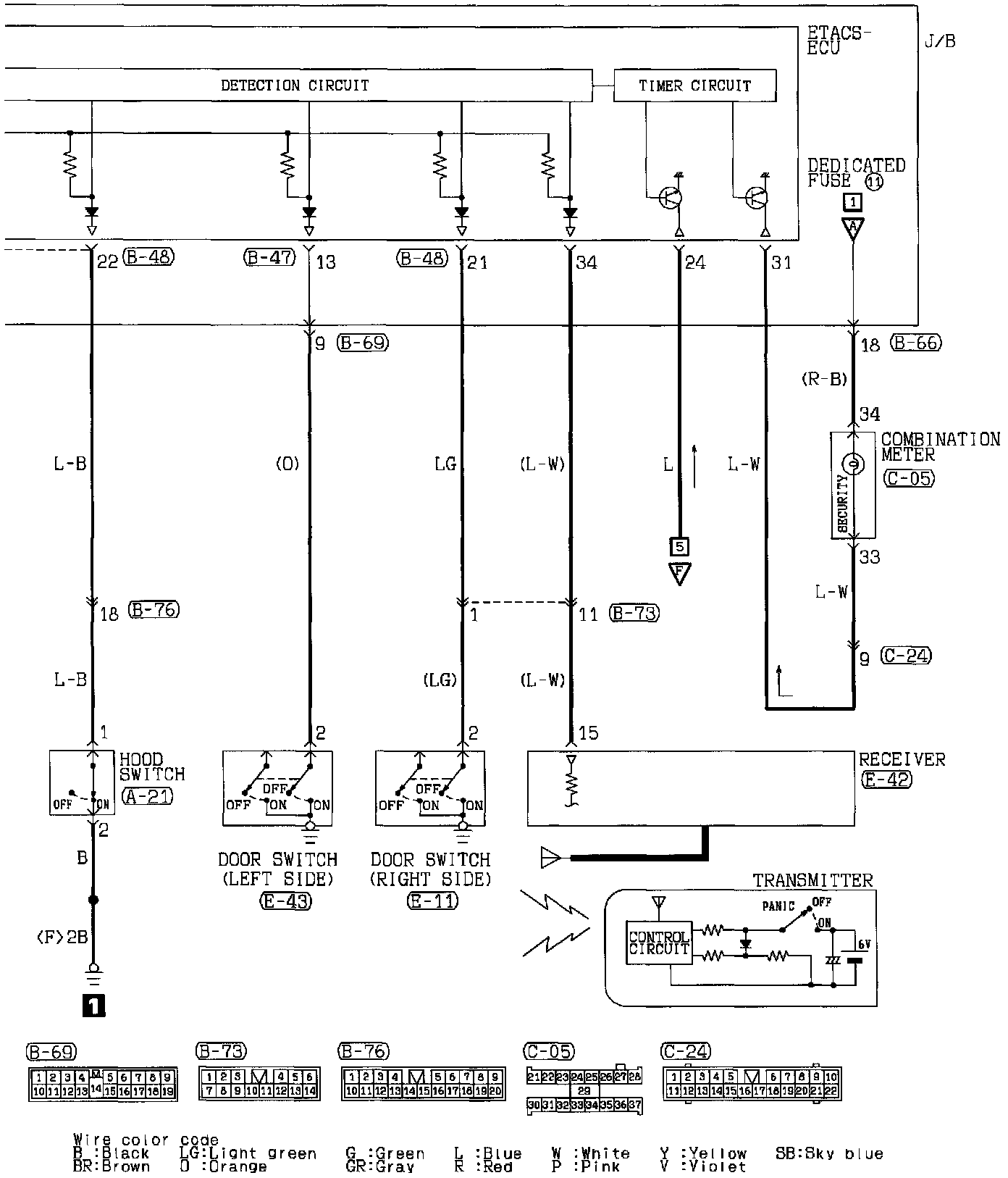

Theft-Alarm System (Part 4 Of 9):

Combination Meter
Door Switch (Left & Right Side)
Hood Switch
J/B
- ETACS-ECU
Receiver

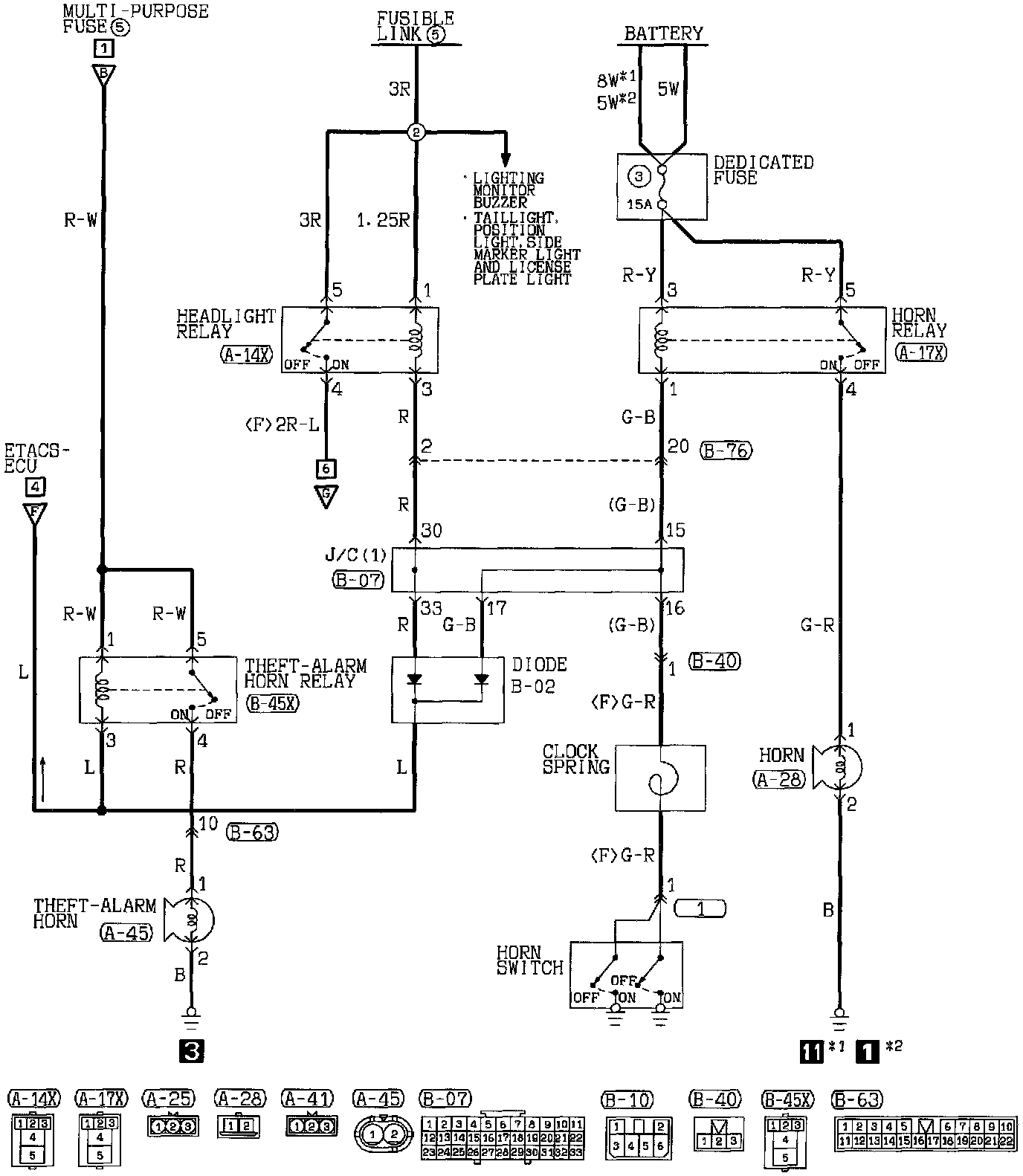

Theft-Alarm System (Part 5 Of 9):

Clock Spring
Dedicated Fuse
Diode
Headlight Relay
Horn
Horn Relay
Horn Switch
J/C (1)
Theft-alarm Horn
Theft-alarm Horn Relay

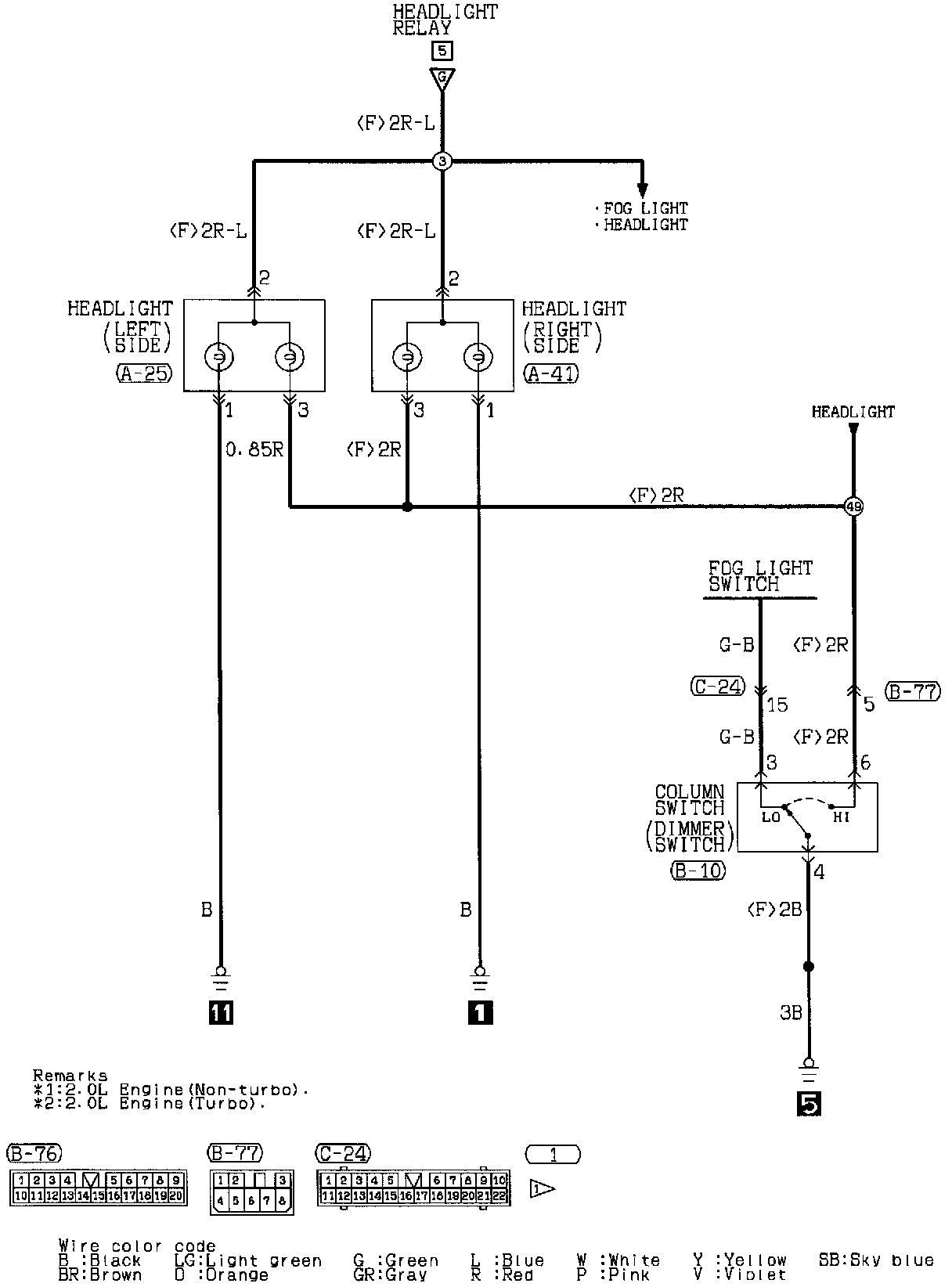

Theft-Alarm System (Part 6 Of 9):

Column Switch (Dimmer Switch)
Headlight (Left and Right Side)

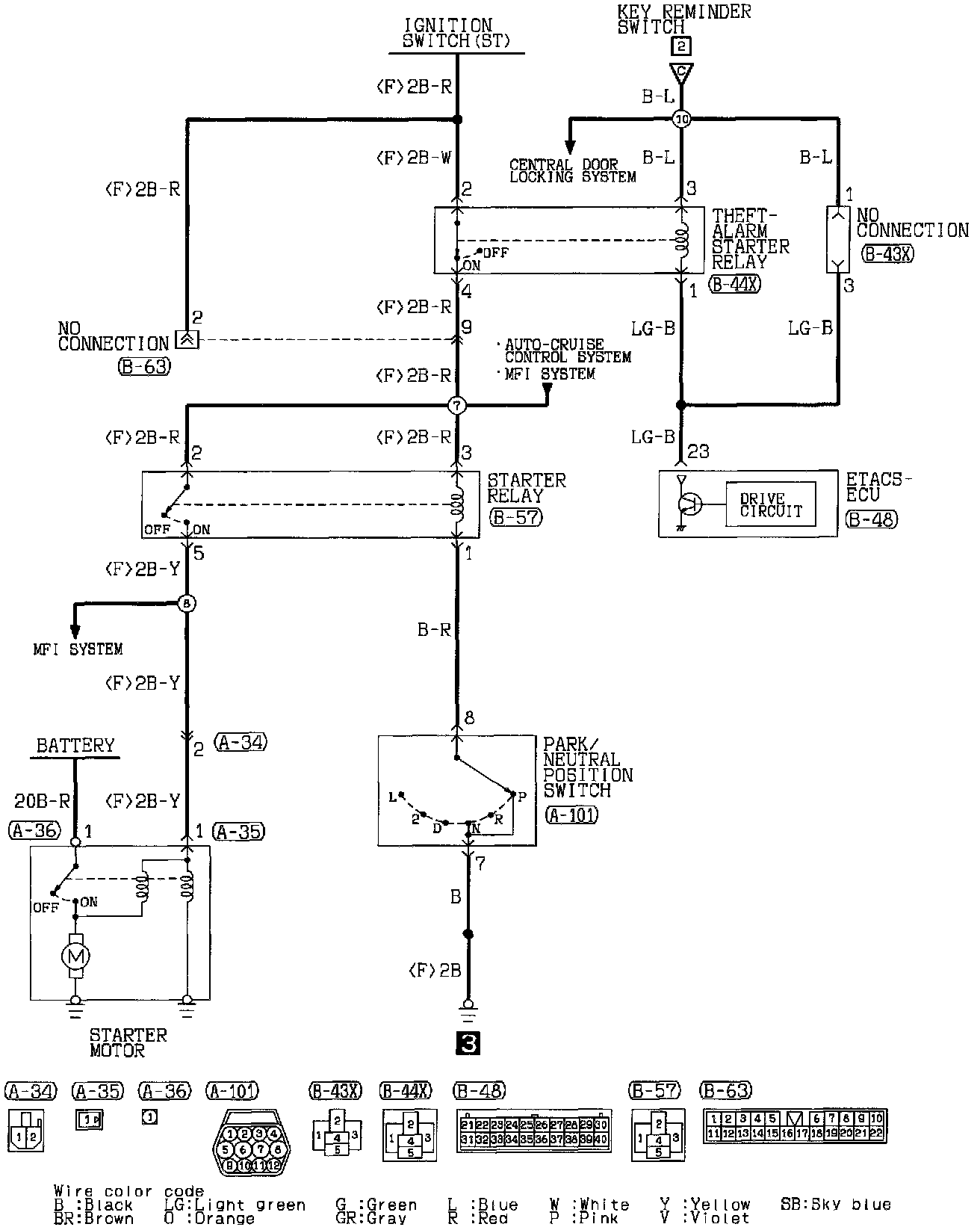

Theft-Alarm System (Part 9 Of 9):

ETACS-ECU
Park/Neutral Position Switch
Starter Motor
Starter Relay
Theft-Alarm Starter Relay
