Antilock Brakes / Traction Control Systems

Anti-Lock Braking System (Part 1 Of 5):

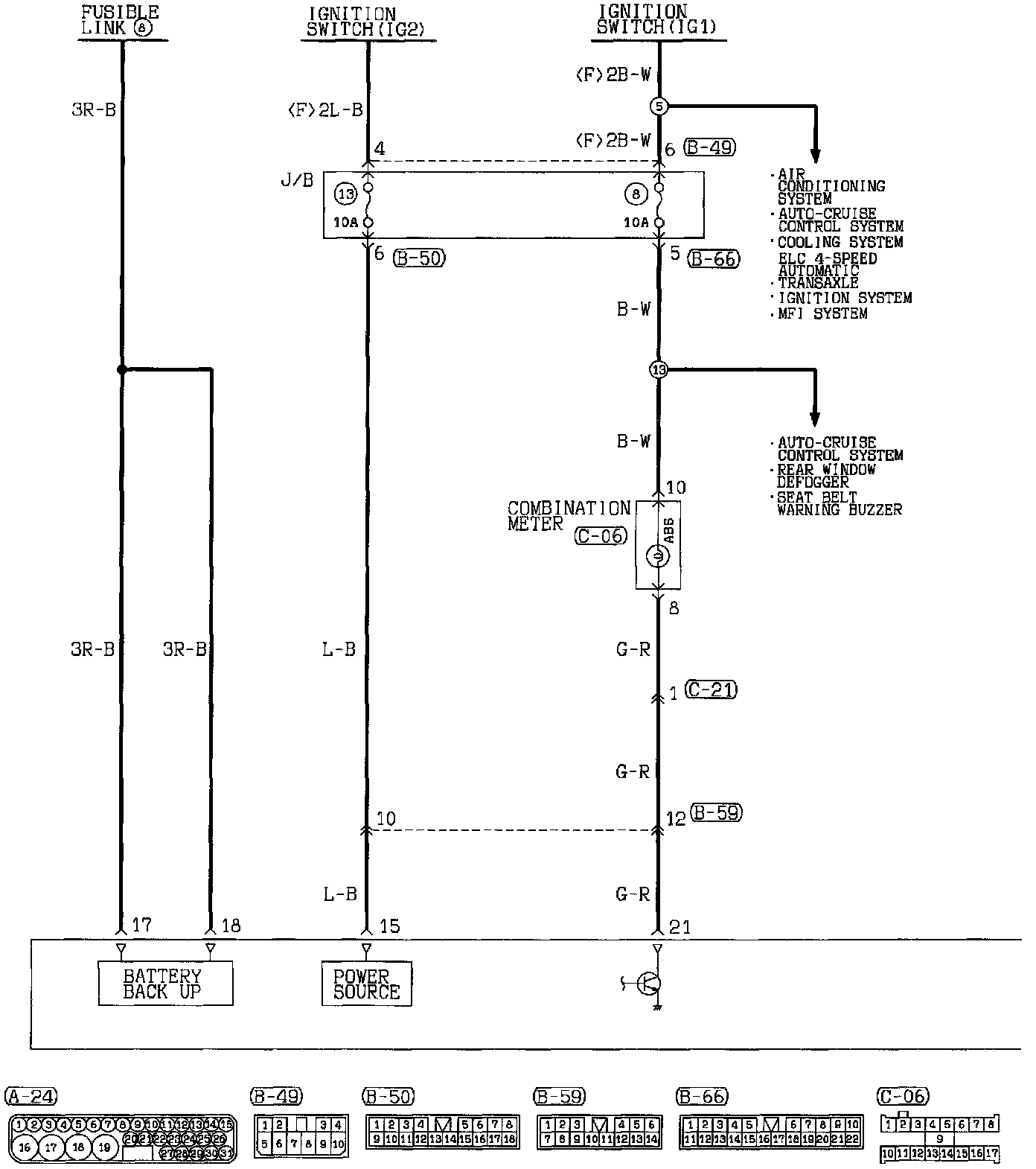

ABS-ECU
- Battery Back Up
- Power Source
J/B

Anti-Lock Braking System (Part 2 Of 5):

ABS-ECU

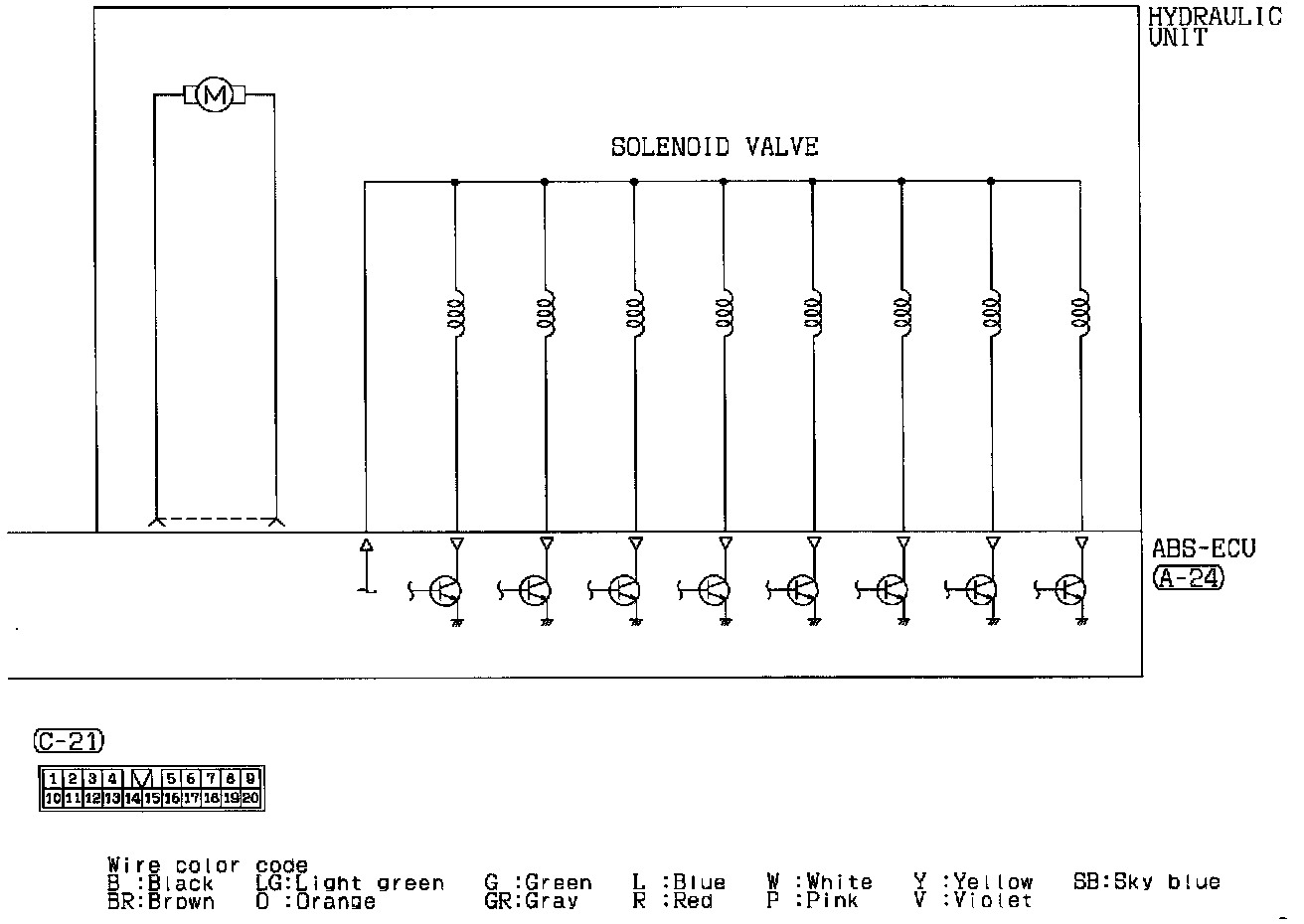

Hydraulic Unit

Anti-Lock Braking System (Part 3 Of 5):

ABS-ECU

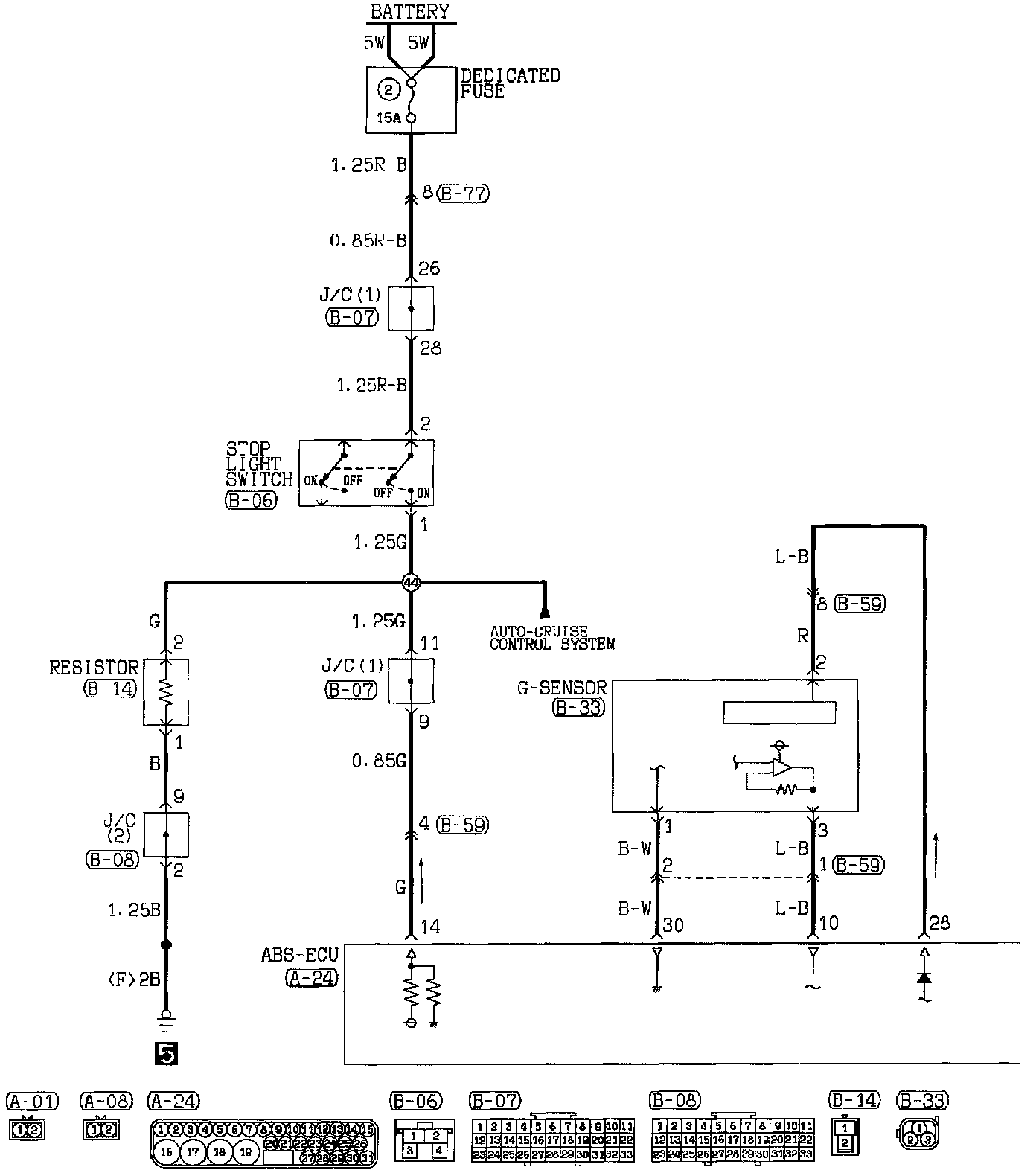

Dedicated Fuse
G-Sensor
J/C (1, 2)
Resistor
Stop Light Switch

Anti-Lock Braking System (Part 4 Of 5):

ABS-ECU

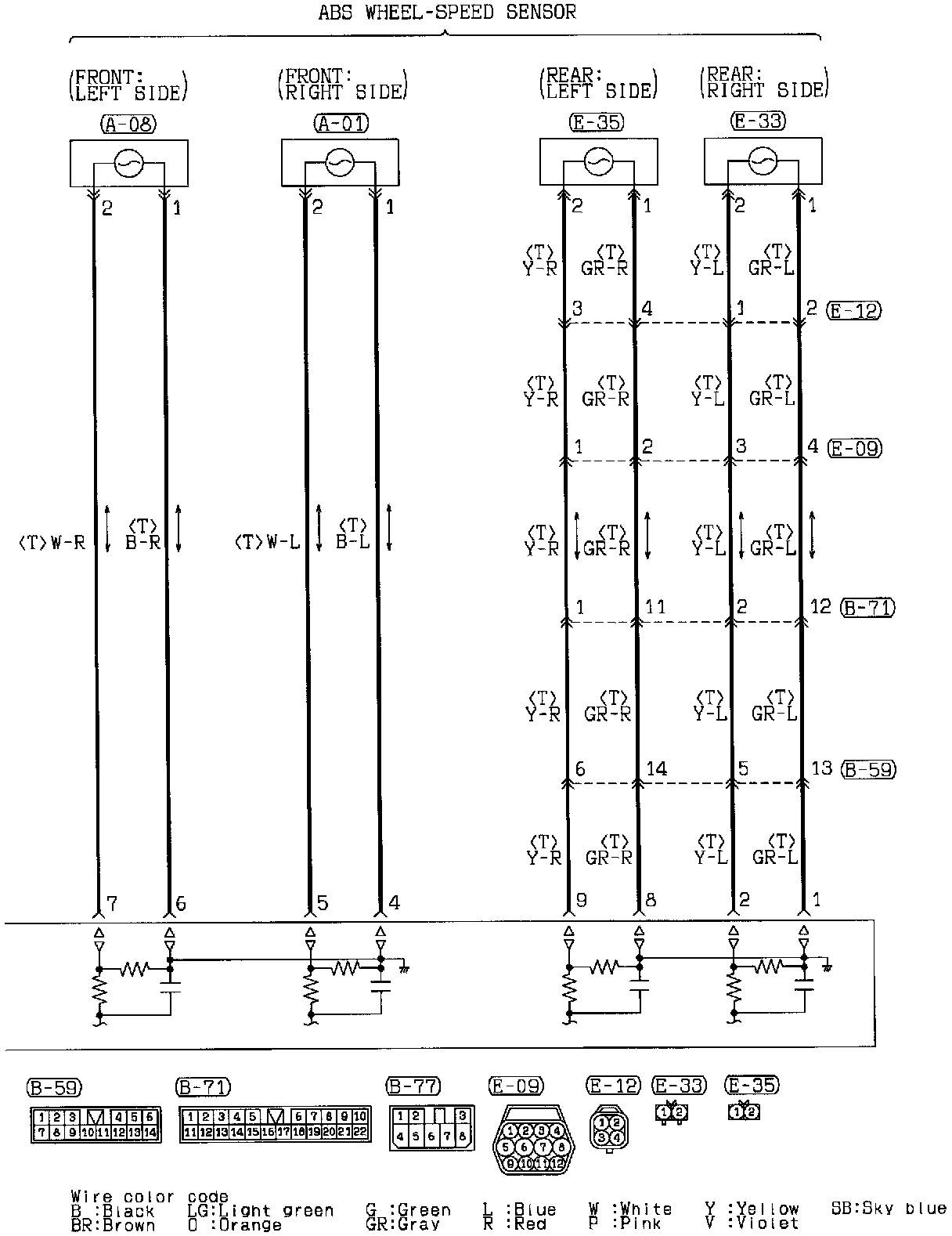

ABS Wheel Speed Sensor
- Front : Left & Right Side
- Rear : Left & Right Side

Anti-Lock Braking System (Part 5 Of 5):

ABS-ECU
Data Link Connector
Dedicated Fuse
J/B
J/C (2)
