E Connectors - Interior Harness
E Connectors - Interior Harness

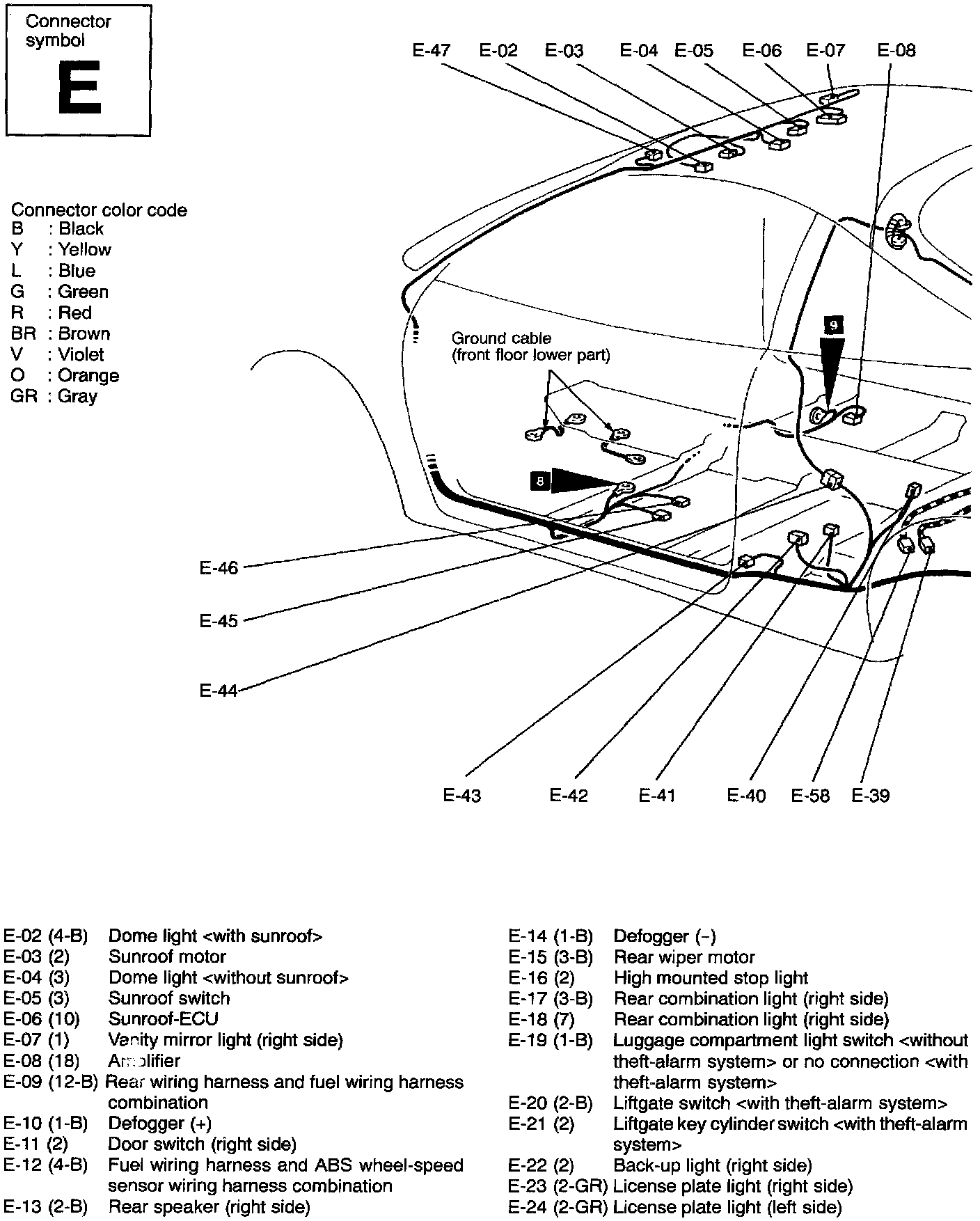

Interior - E Connector (02 (4-B) Thru 24 (2-GR)):
Interior - E Connector (25 (3-B) Thru 59 (6)):
