Home >> Mitsubishi >> 1999 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Diagrams >> Connectors >> C Connectors - Instrument Panel and Floor Console Harness

C Connectors - Instrument Panel and Floor Console Harness

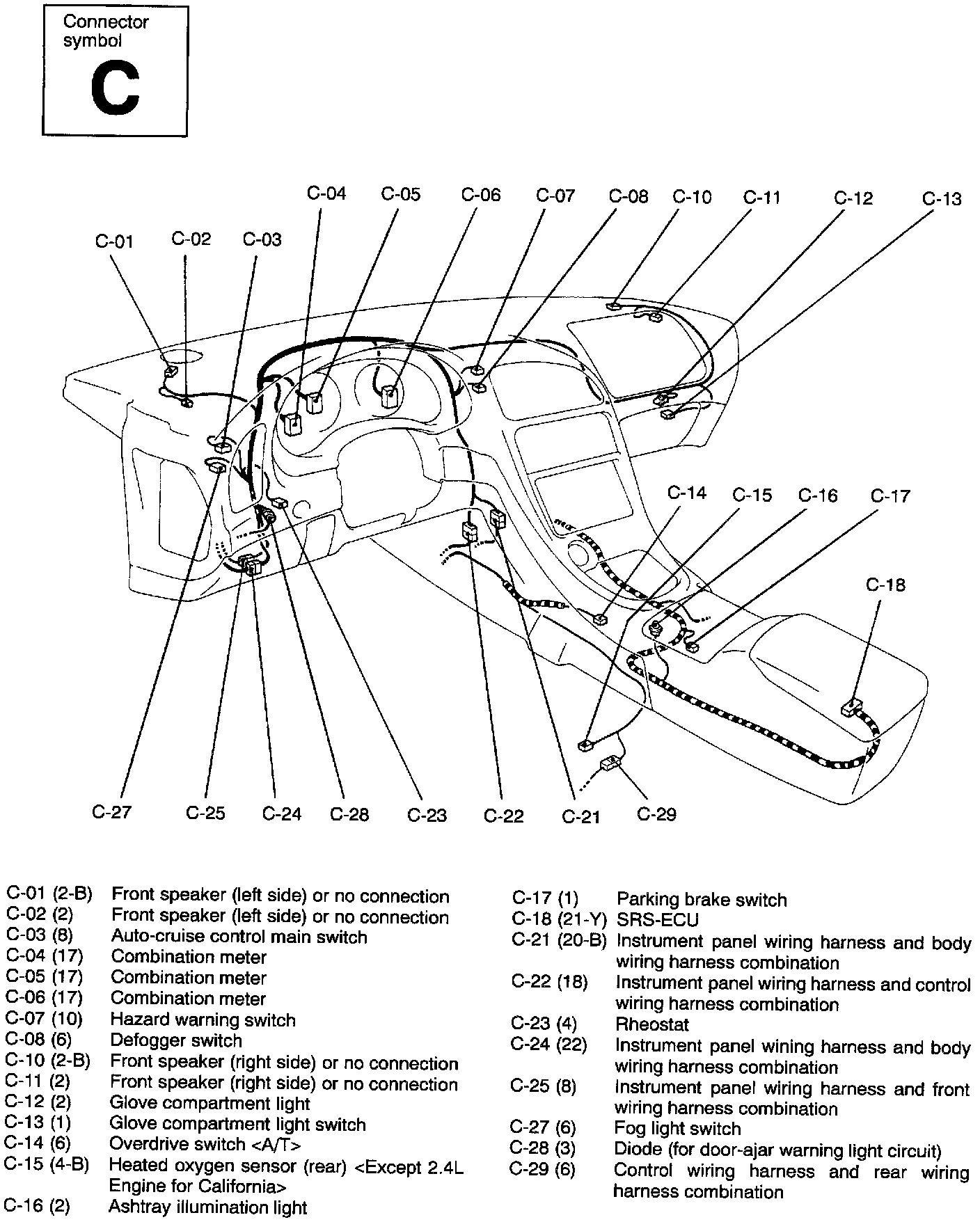

Instrument Panel - C Connector (01 (2-B) Thru 29 (6)):
