B Connectors - Instrument Panel Harness

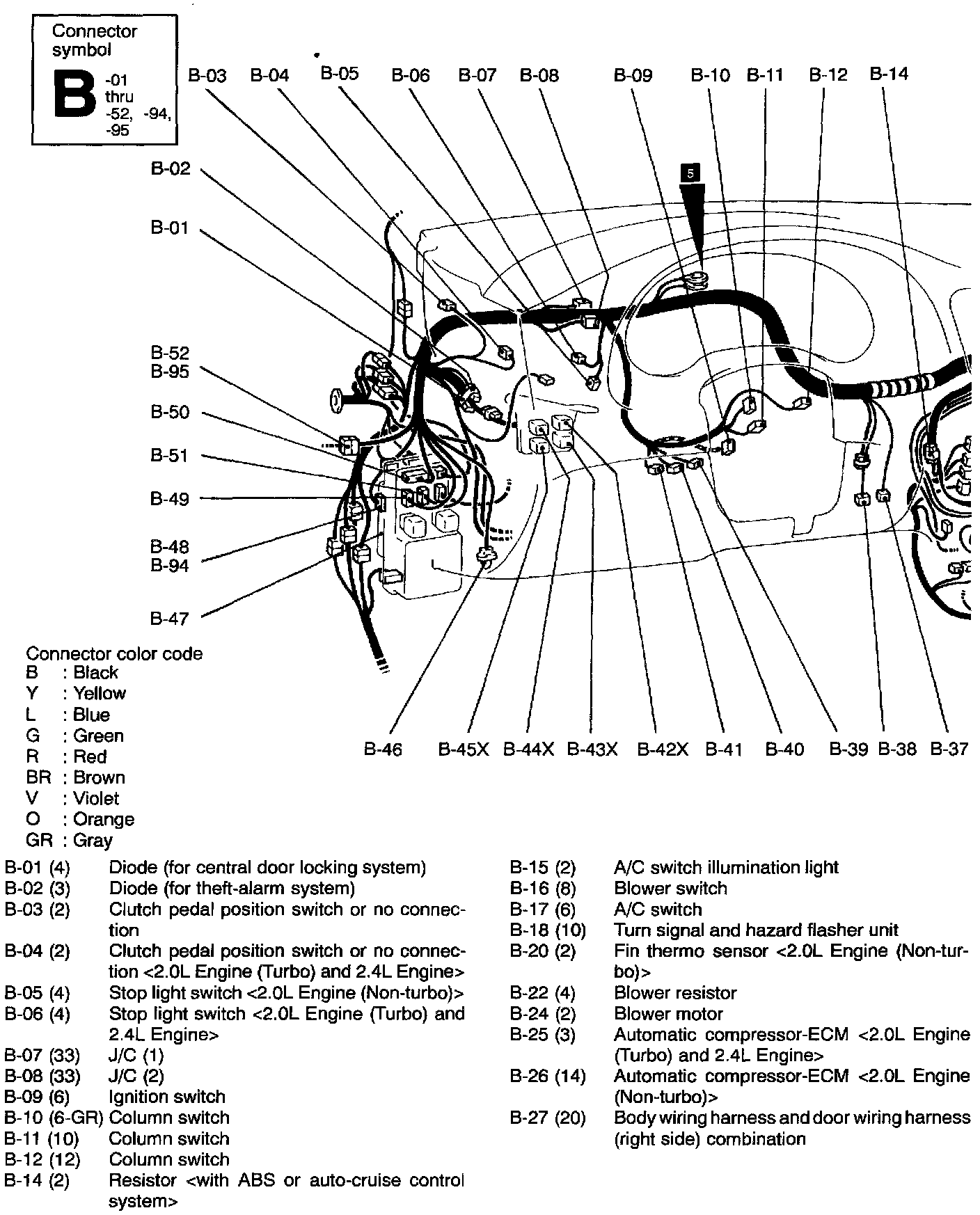

Dash Panel - B Connector (01 (4) Thru 27 (20)):

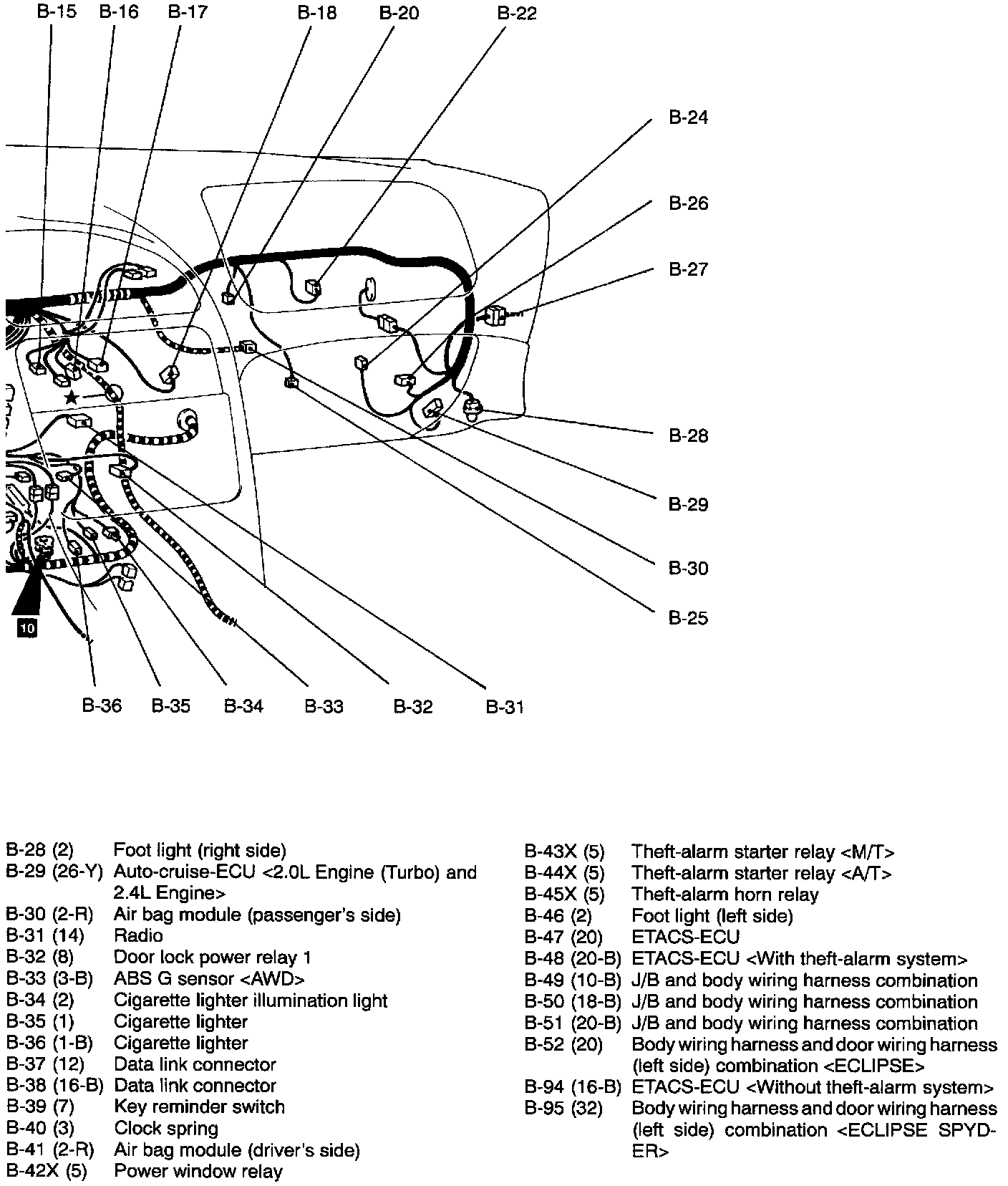

Dash Panel - B Connector (28 (2) Thru 95 (32)):

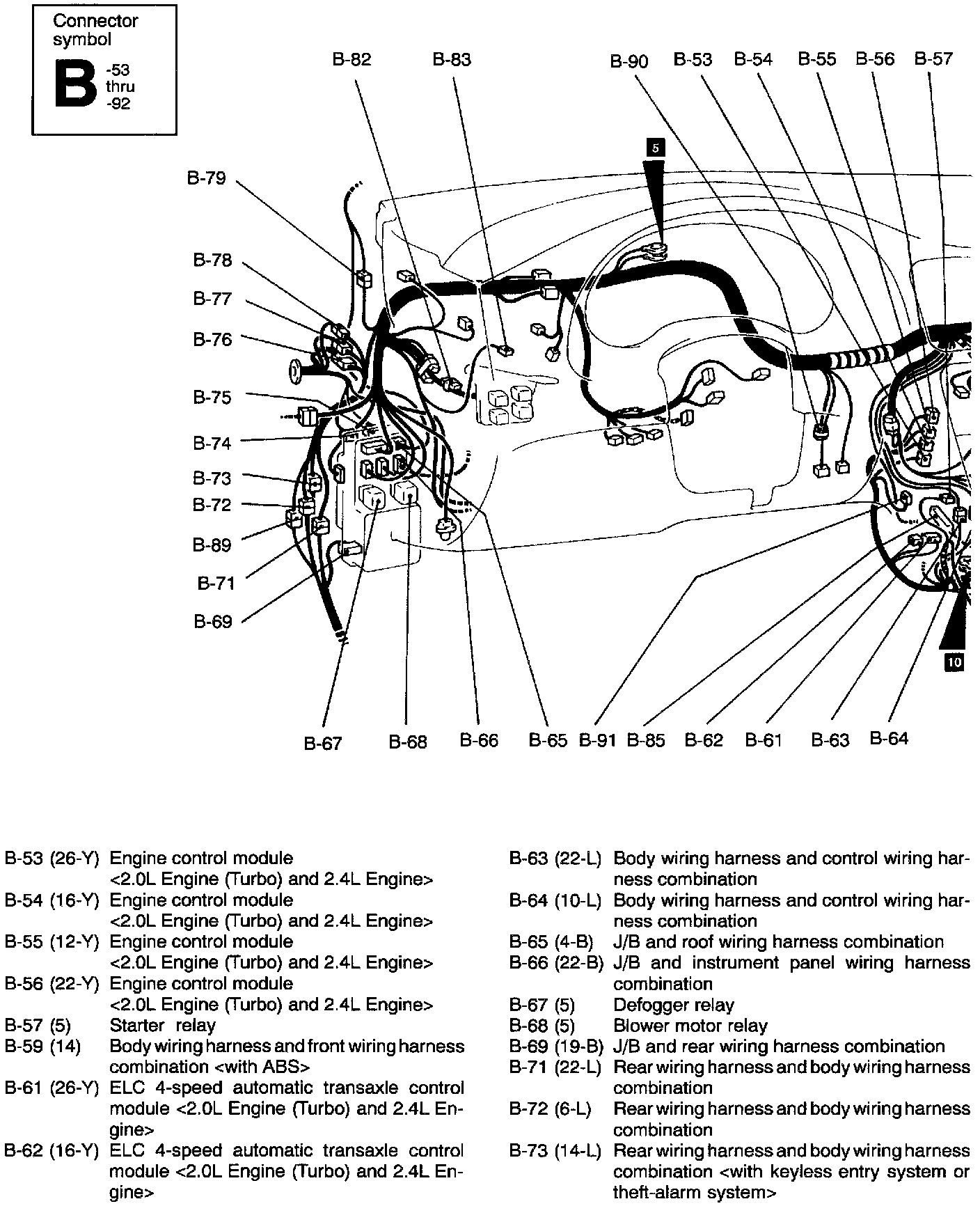

Dash Panel - B Connector (53 (26-Y) Thru 73 (14-L)):

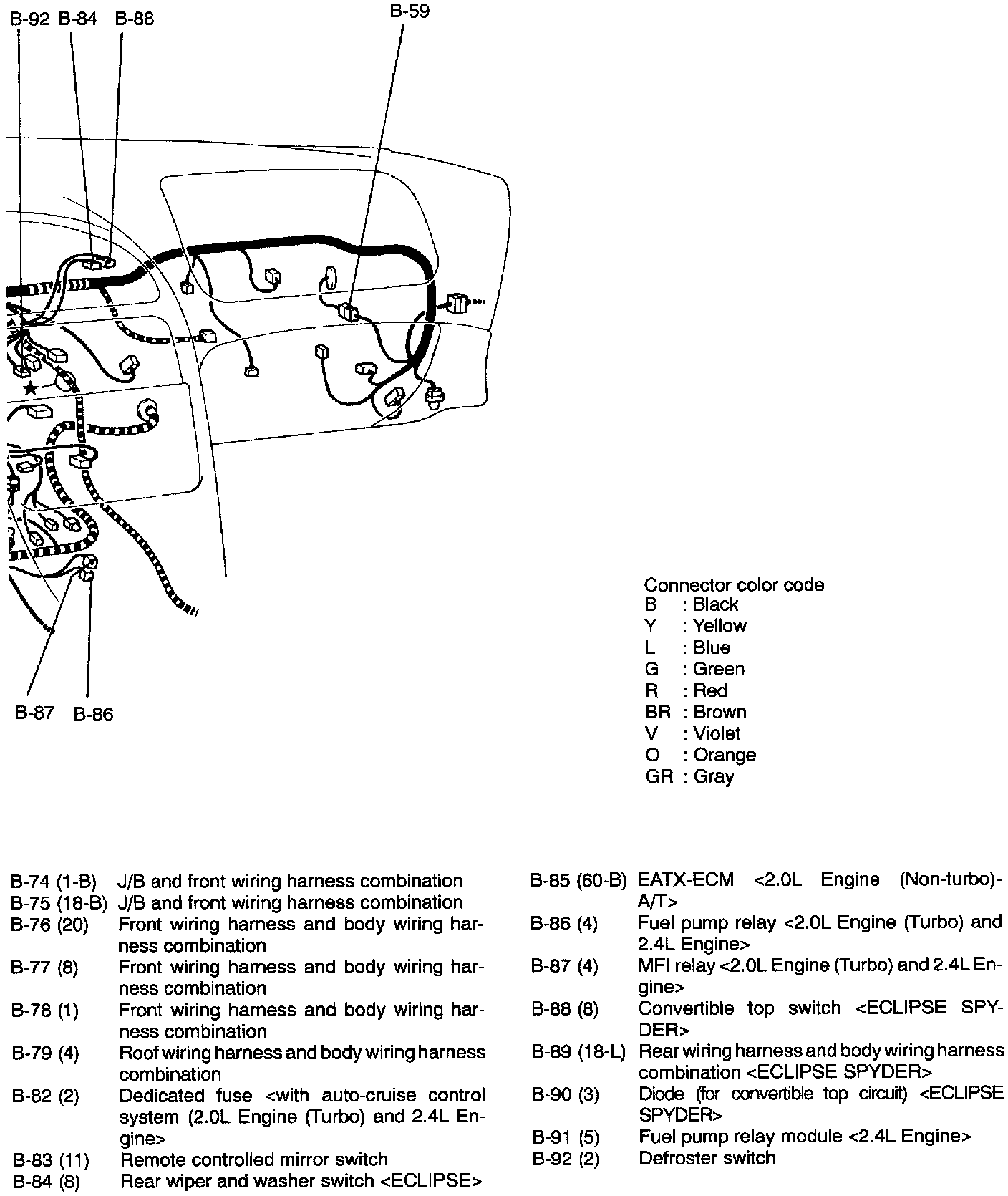

Dash Panel - B Connector (74 (1-B) Thru 92 (2)):
