A Connectors - Engine Compartment Harness

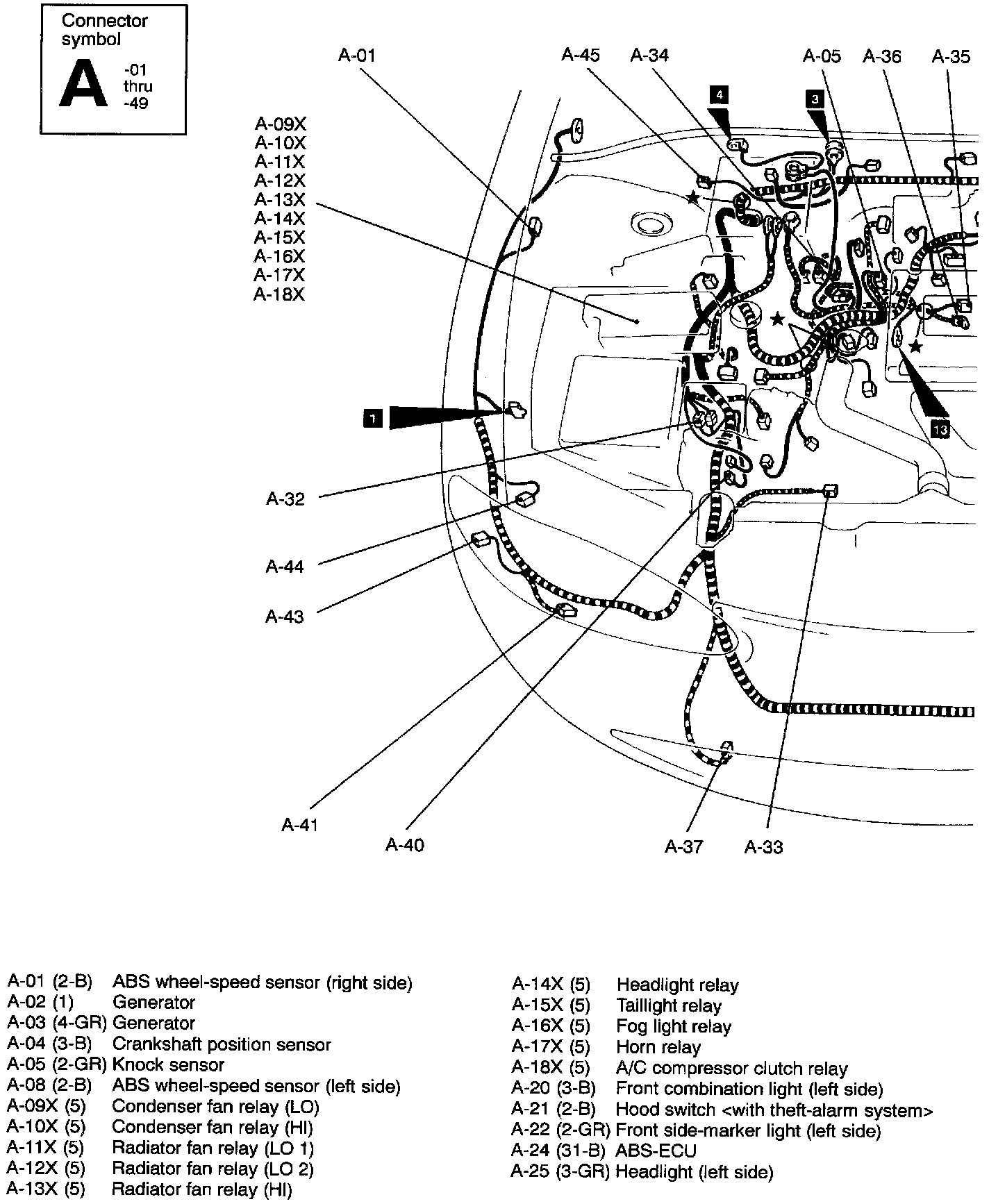

Engine Compartment - A Connector (01 (2-B) Thru 25 (3-GR)):

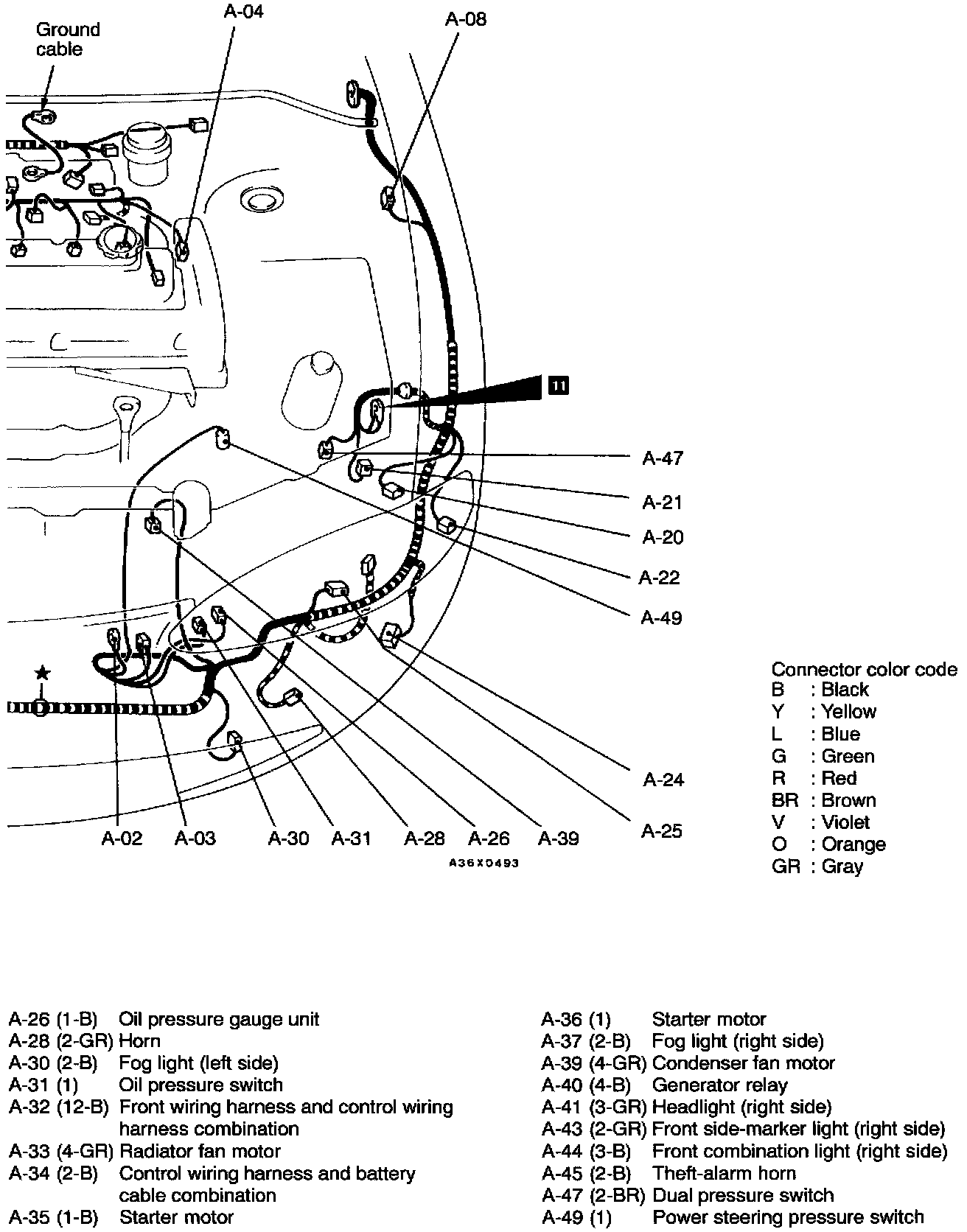

Engine Compartment - A Connector (26 (1-B) Thru 49 (1)):

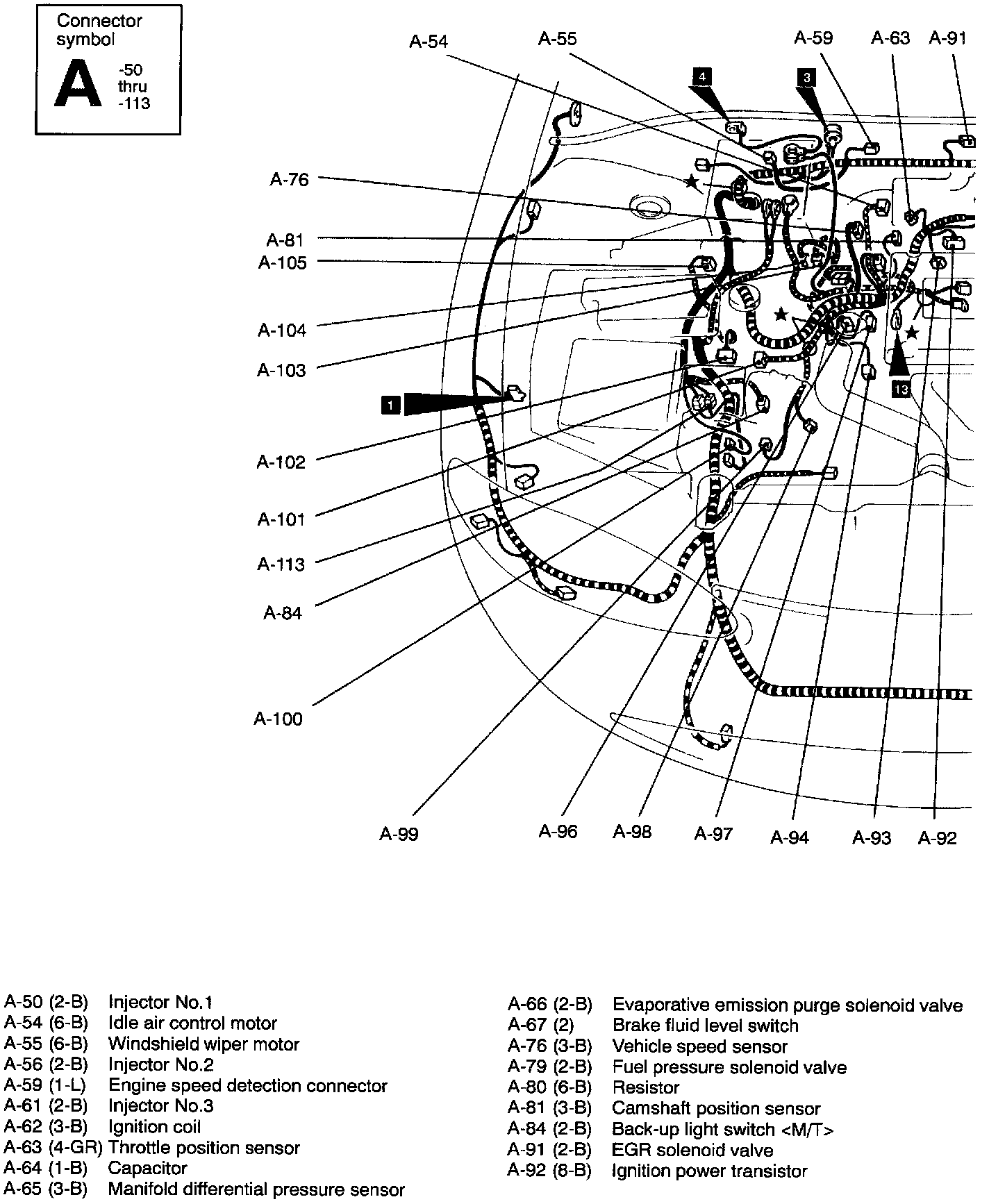

Engine Compartment - A Connector (50 (2-B) Thru 92 (8-B)):

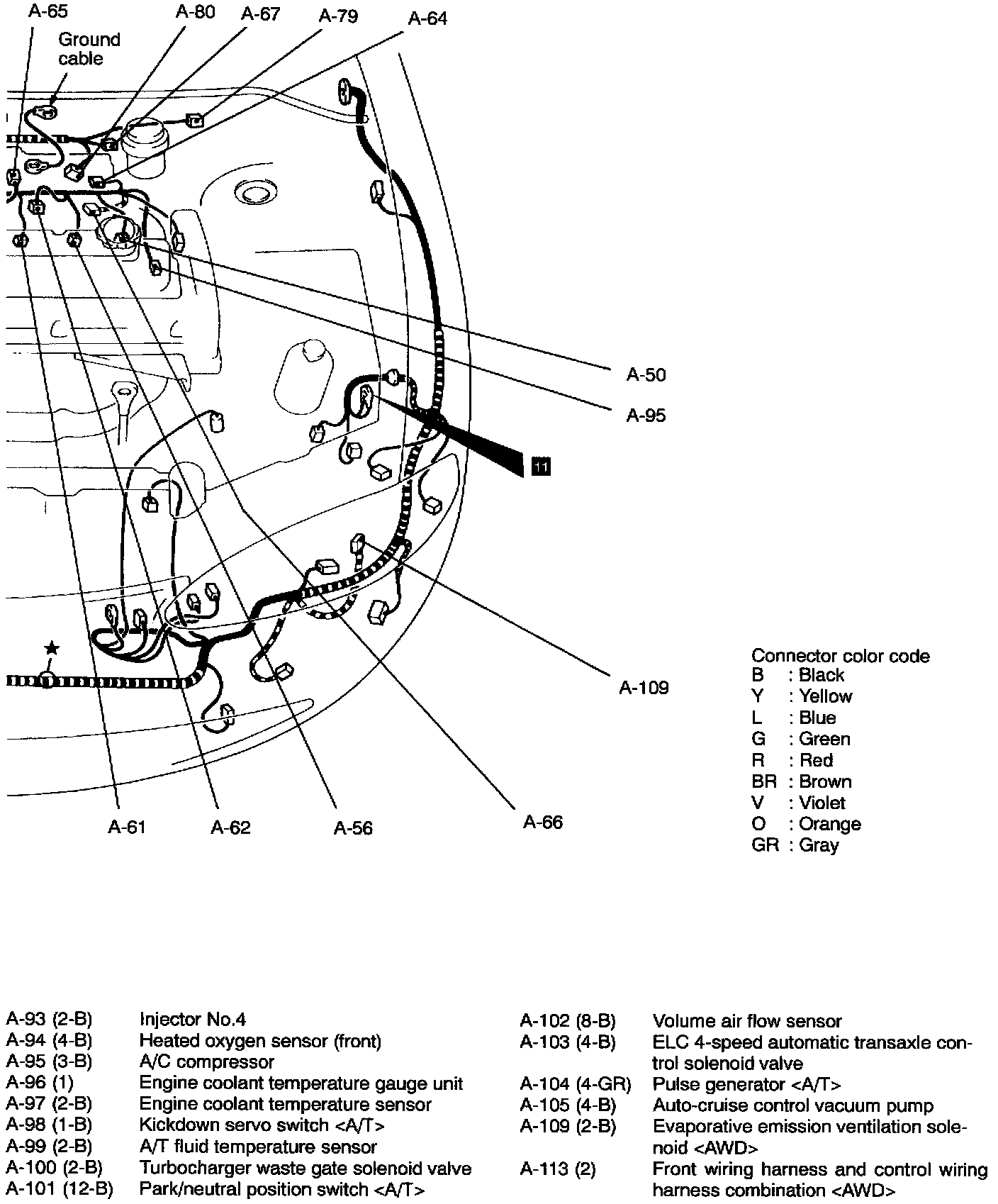

Engine Compartment - A Connector (93 (2-B) Thru 113 (2)):
