Solenoids and Solenoid Valves
Solenoid And Solenoid Valve Locations Overall View C-G,I,J,L,M:

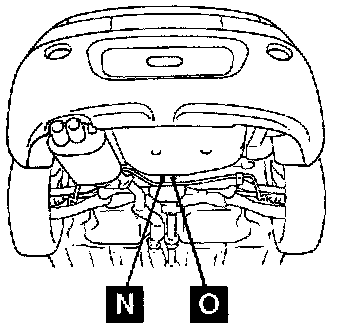

Solenoid And Solenoid Valve Locations Overall View N,O:
Solenoid And Solenoid Valve Location Views A-J:
Solenoid And Solenoid Valve Location Views K-O:
Name Symbol
Auto-Cruise Control Vacuum Pump
(with built-in control and release valve) C
EGR Solenoid Valve E
ELC 4-Speed Automatic Transaxle Control
Solenoid Valve J
Evaporative Emission Purge Solenoid Valve F
Evaporative Emission Ventilation Solenoid(FWD) O
Fuel Pressure Solenoid Valve G
Hydraulic Unit
(with built-in solenoid valve)
Turbocharger Waste Gate Solenoid Valve I
