Sensors

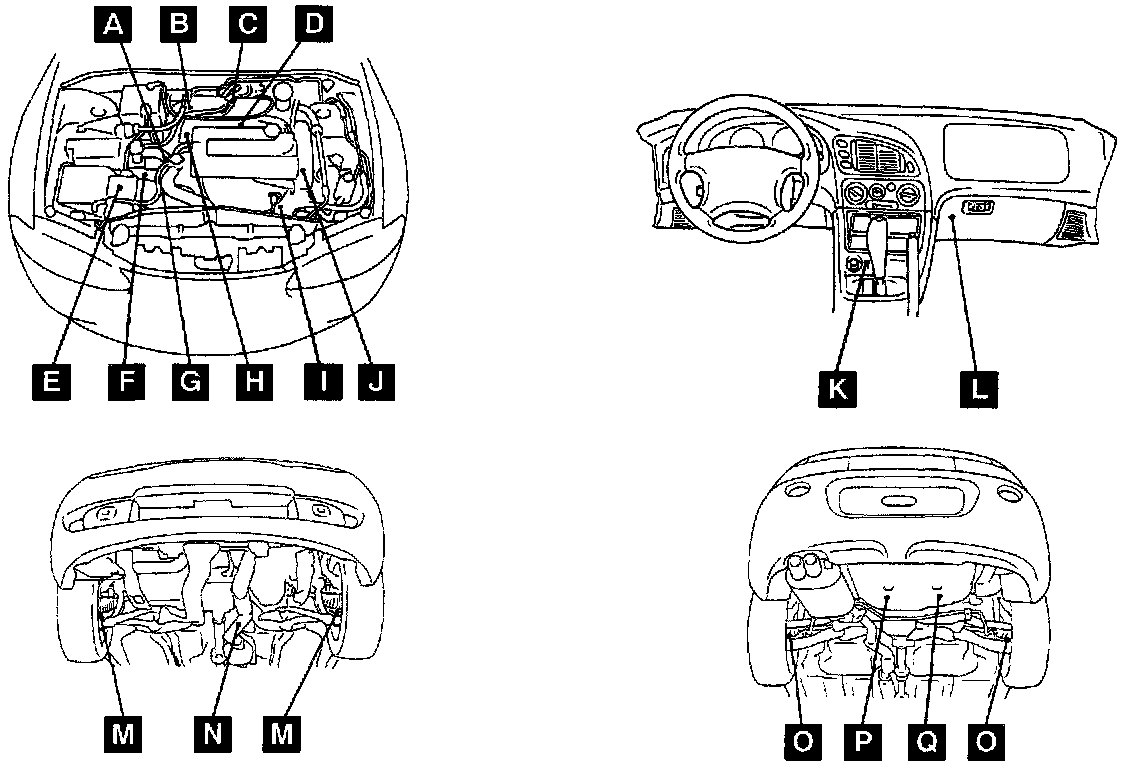

Sensor Locations Overall View:

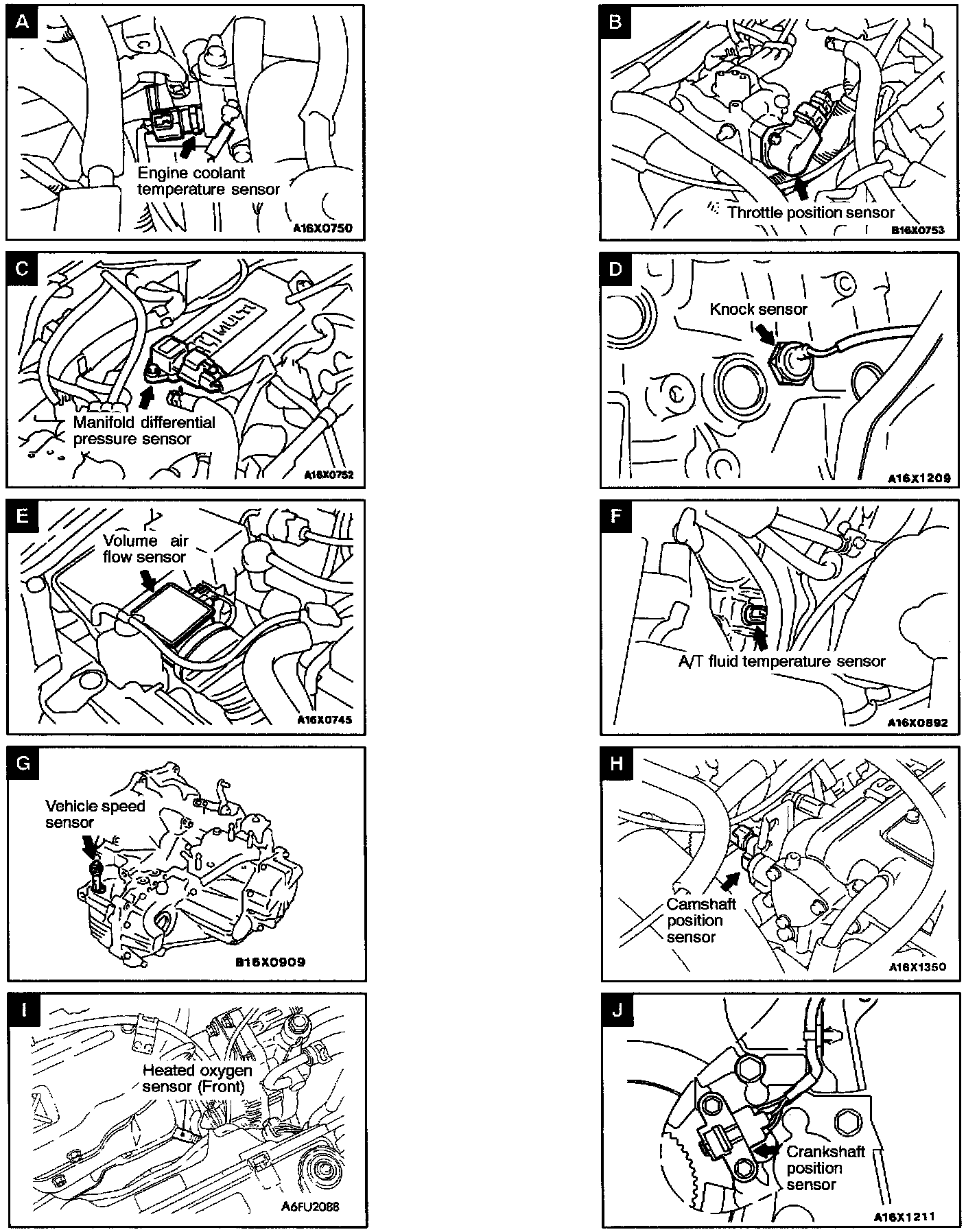

Sensor Location Views A-J:

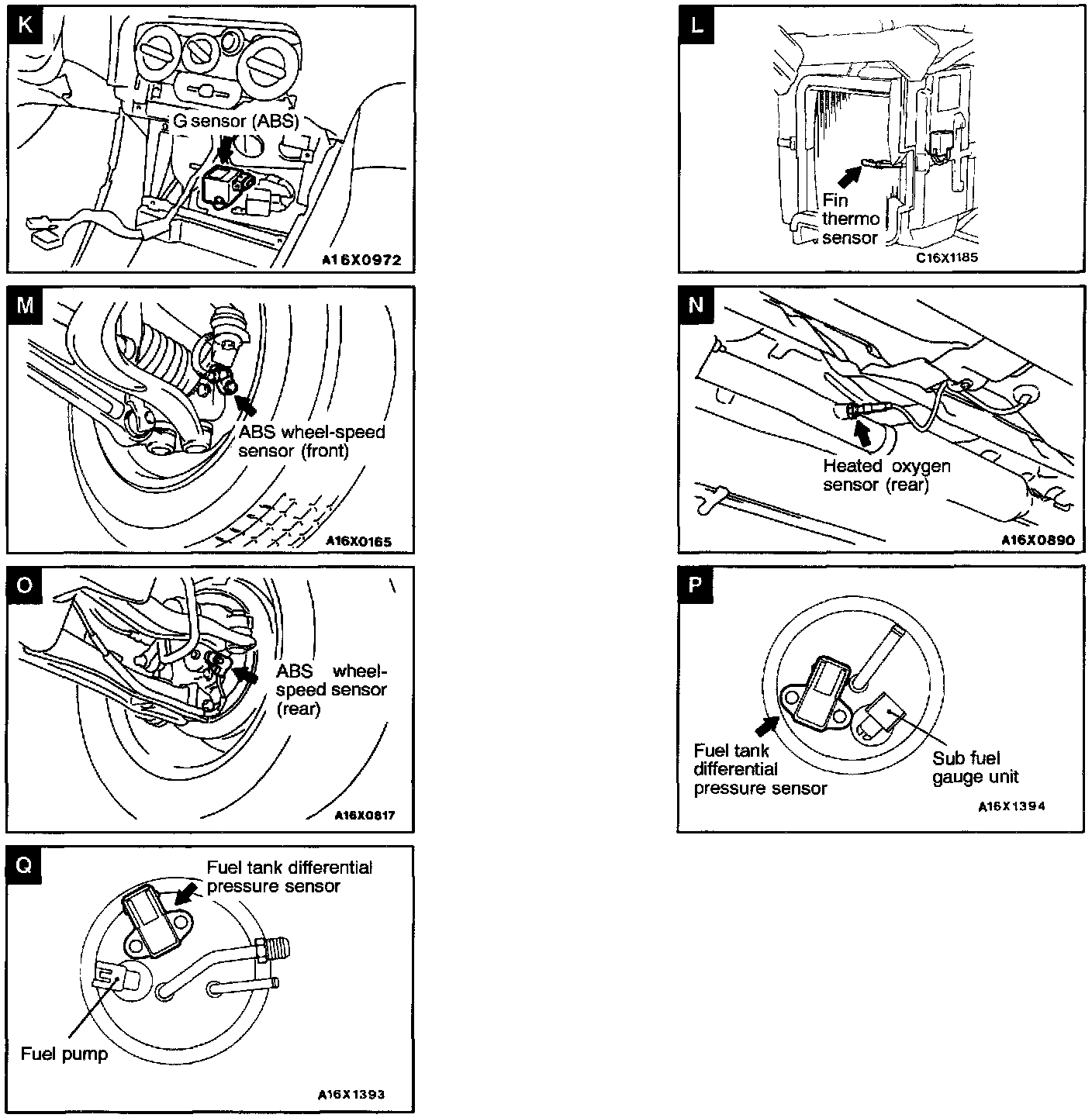

Sensor Location Views K-Q:

Name Symbol
ABS Wheel Speed Sensor (front) M
ABS Wheel Speed Sensor (rear) O
A/T Fluid Temperature Sensor F
Camshaft Position Sensor H
Crankshaft Position Sensor J
Engine Coolant Temperature Sensor A
Fin Thermo Sensor (A/C) L
Fuel Tank Differential Pressure Sensor P (AWD)
Fuel Tank Differential Pressure Sensor Q (FWD)
G Sensor (ABS) K
Heated Oxygen Sensor (front) I
Heated Oxygen Sensor (rear) N
Knock Sensor D
Manifold Differential Pressure Sensor C
Throttle Position Sensor B
Vehicle Speed Sensor (M/T) G
Volume Air Flow Sensor E
