Misc. Relays

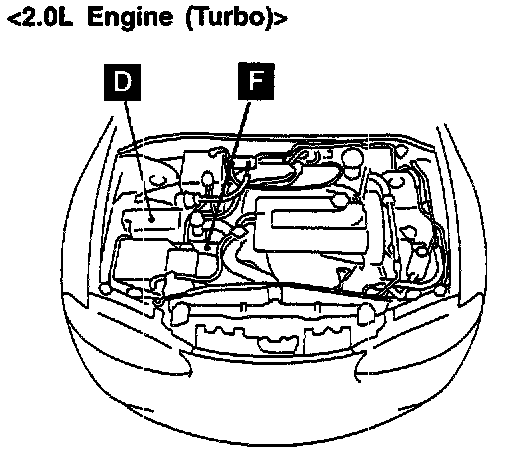

Relay Locations Overall View:

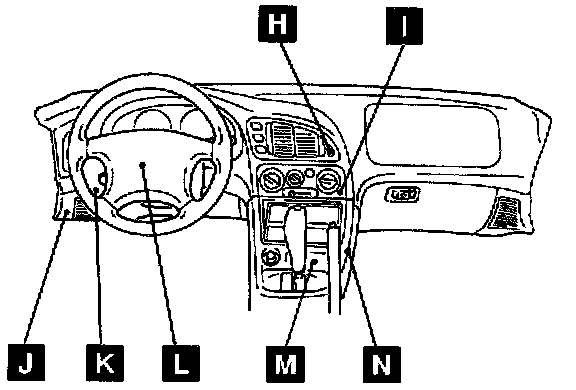

Relay Locations Overall Views H-N:

Relay Locations Overall Views O,P:

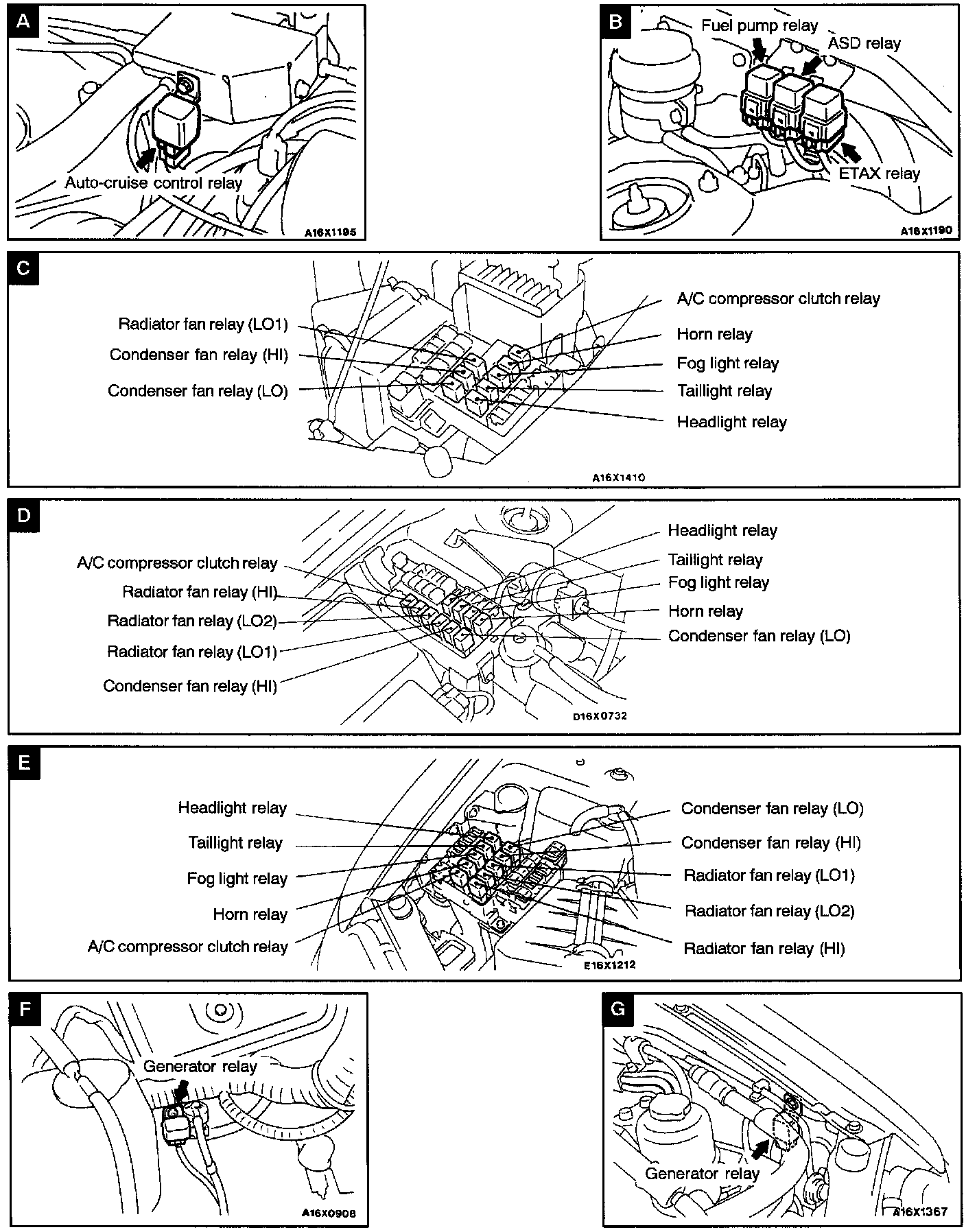

Relay Location Views A-G:

Relay Location Views H-Q:

Name Symbol
A/C Compressor Clutch Relay D
Blower Motor Relay J
Condenser Fan Relay(HI),(LO) D
Defogger Relay J
Door Lock Power Relay 1 M
Door Lock Power Relay 2 O
(for keyless entry system)
Fog Light Relay D
Fuel Pump Relay N
Generator Relay F
Headlight Relay D
Horn Relay D
MFI Relay N
Motor Antenna Control Relay P
Power Window Relay K
Radiator Fan Relay (HI),(LO1)(LO2) D
Rear Intermittent Wiper Relay H
Starter Relay M
Taillight Relay D
Theft-Alarm Horn Relay K
Theft-Alarm Starter Relay K
Turn Signal and Hazard Flasher Unit I
Windshield Intermittent Wiper Relay L
