List of Miscellaneous Components

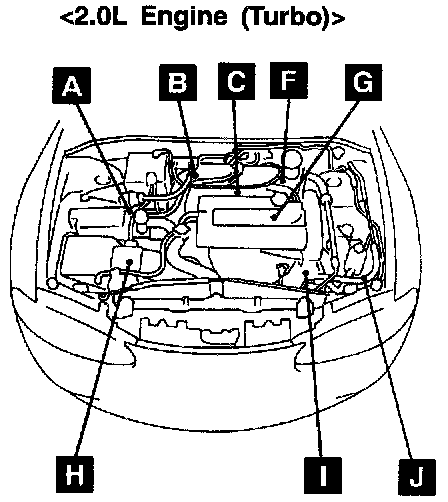

Other Devices Locations Overall View A,B,C,F,G,H,I,J:

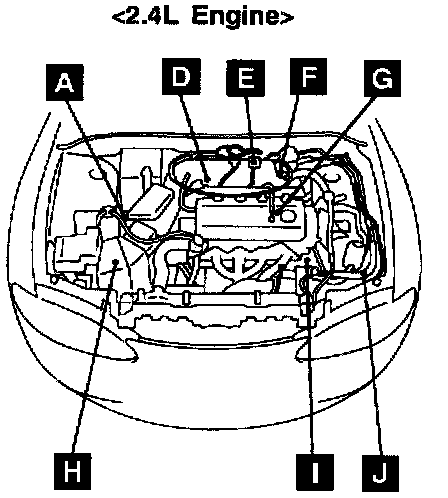

Other Devices Locations Overall View A,D,E,F,G,H,I,J:

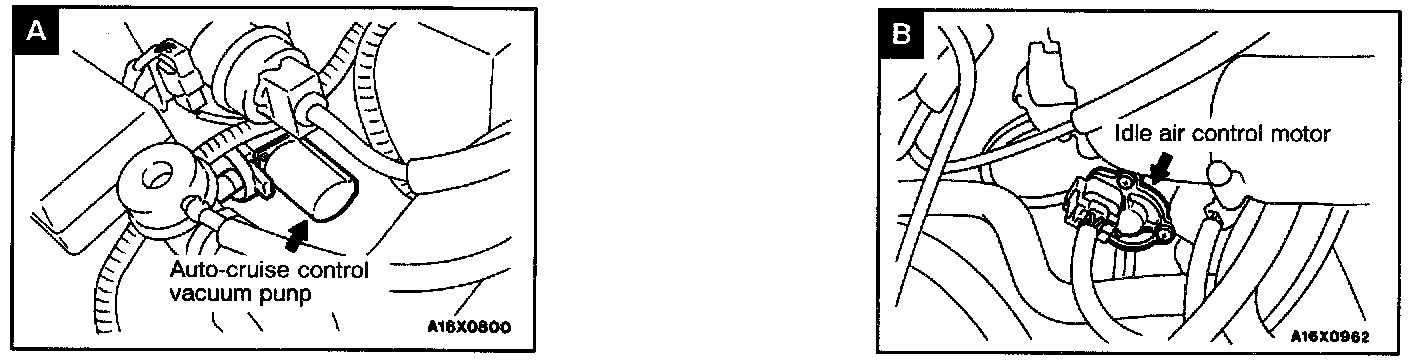

Other Devices Location Views A-B:

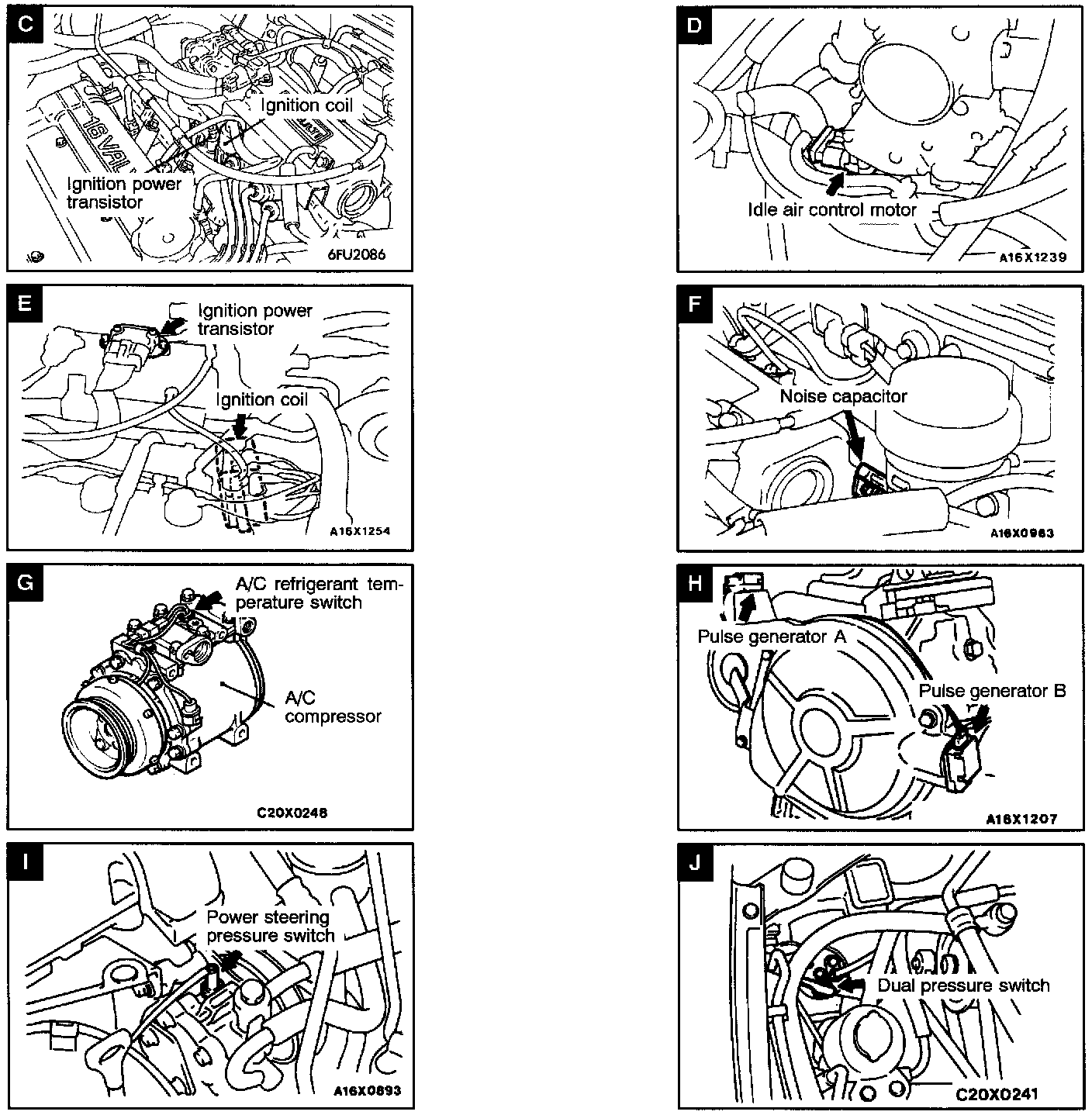

Other Devices Location Views C-J:

Name Symbol
A/C Refrigerant Temperature Switch G
Auto Cruise Control Vacuum Pump A
Dual Pressure Switch J
Idle Air Control Motor B*1,D*2
Ignition Coil C*1,E*2
Ignition Power Transistor C*1,E*2
Noise Capacitor F
Power Steering Pressure Switch I
Pulse Generator A,B H

NOTE:
*1: 2.0L Engine (Turbo)
*2: 2.4L Engine
