Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Ground Locations 1 - 14
Ground Locations 1 - 14

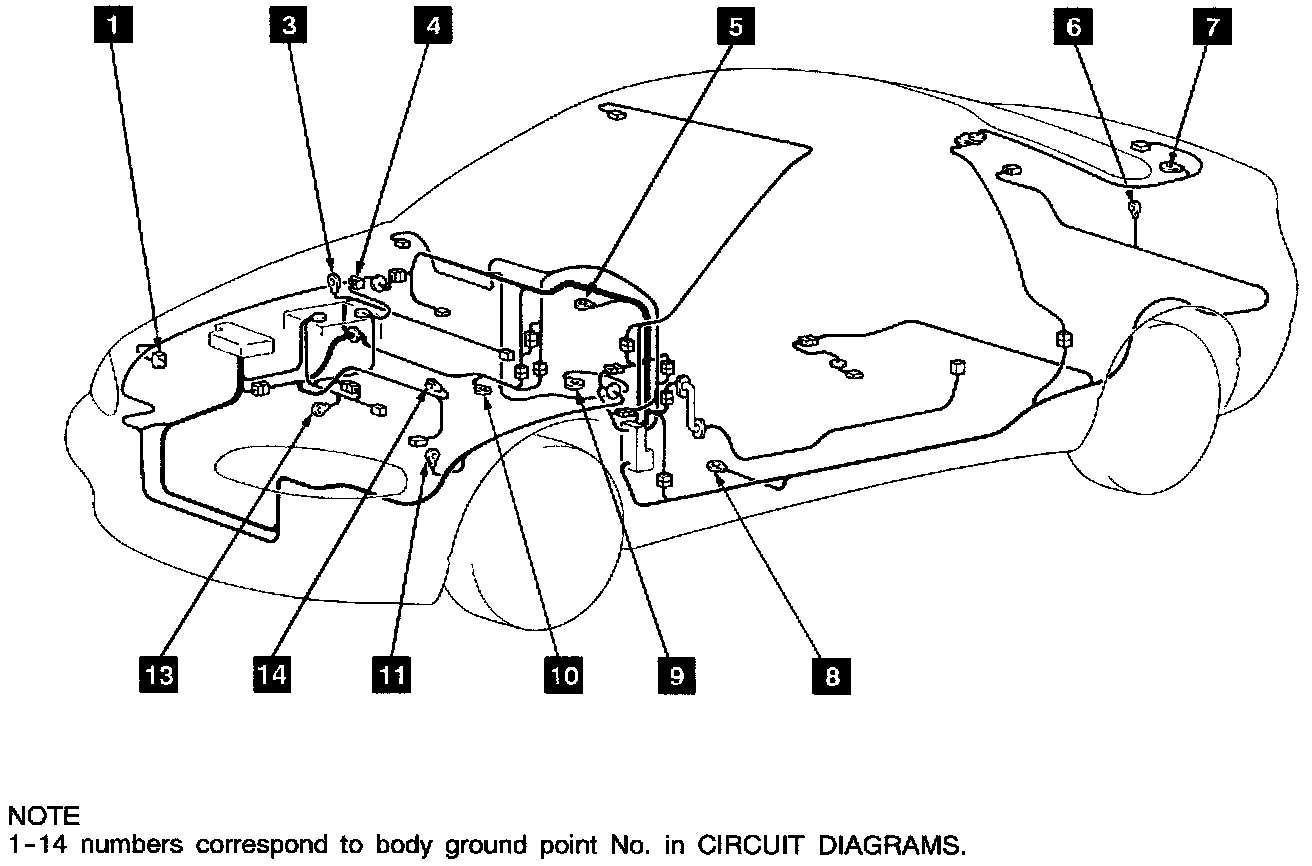

Grounding Location Overall View:

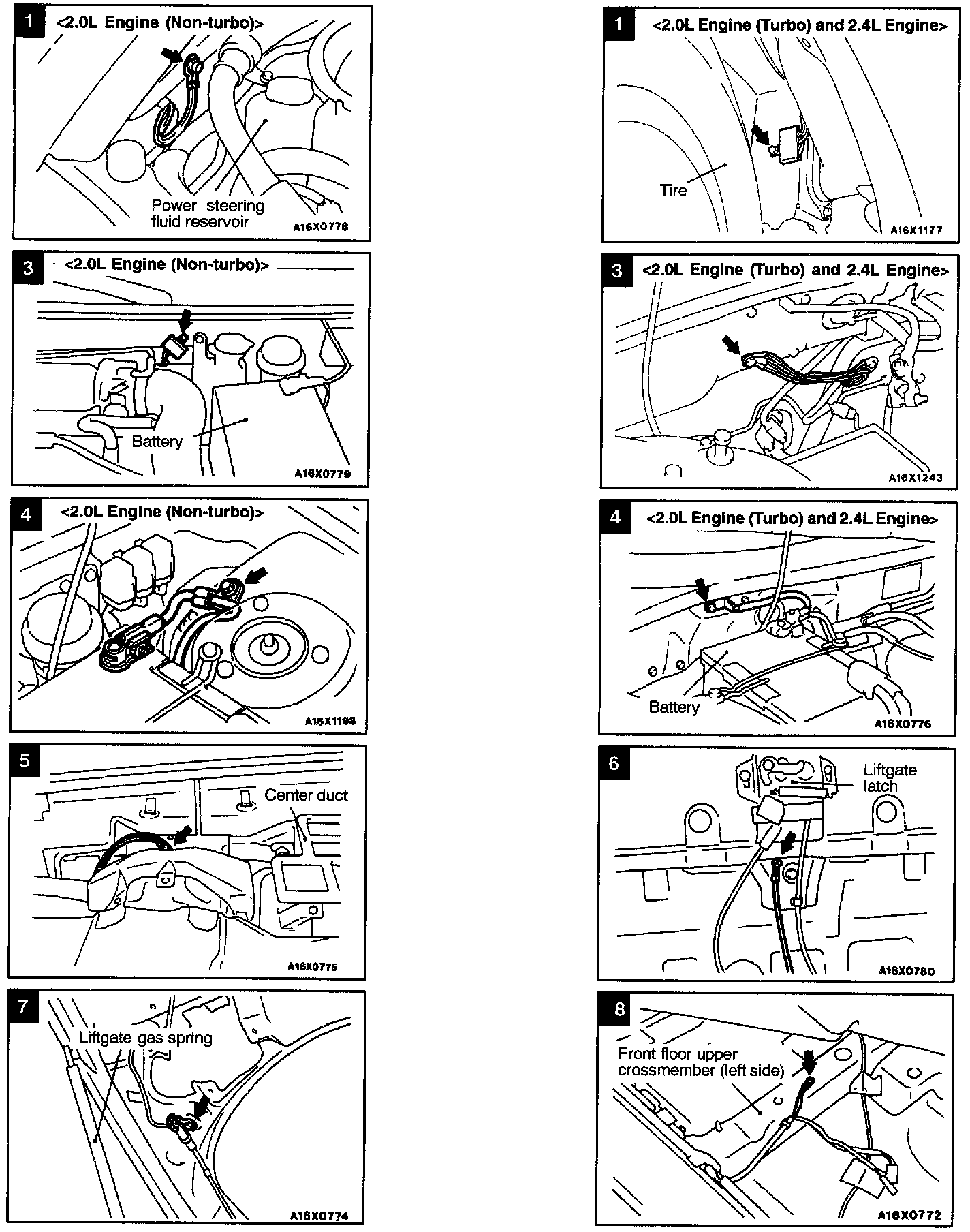

Grounding Location Views 1-8:

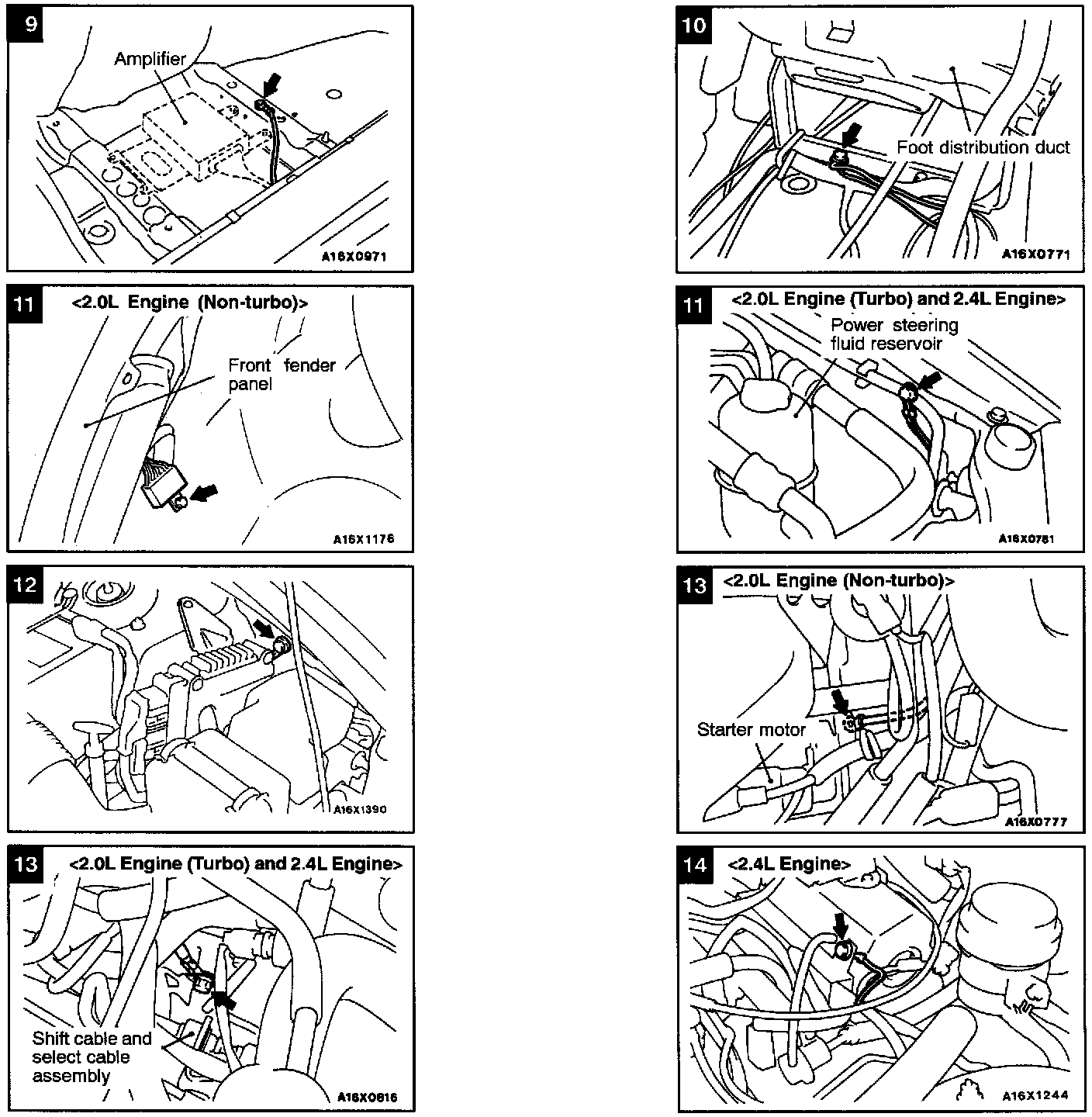

Grounding Location Views 9-14:
NOTE:
Same ground numbers are used in the circuit diagrams.
