Control Unit

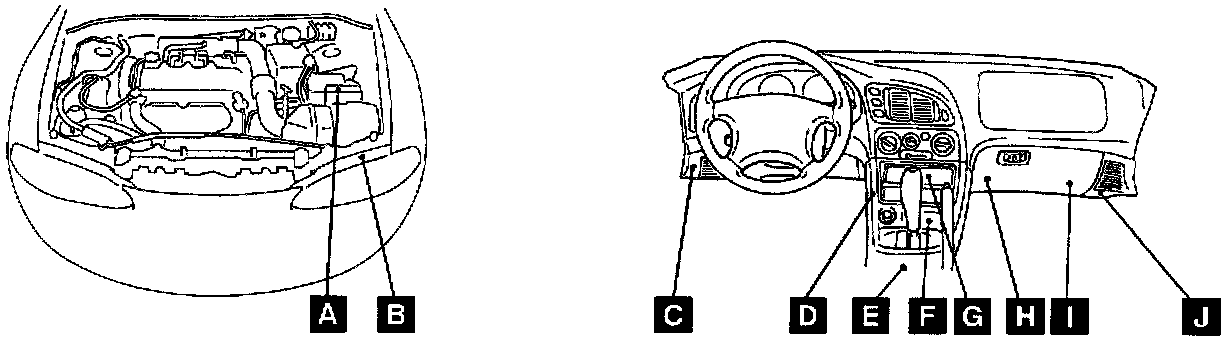

Control Unit Locations Overall View A-J:

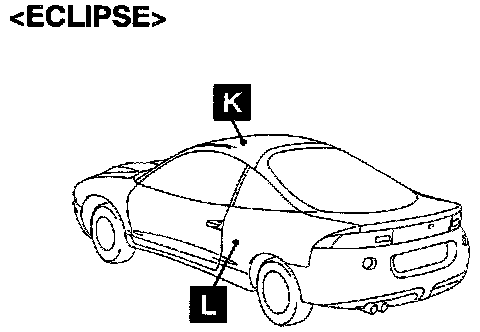

Control Unit Locations Overall View K,L:

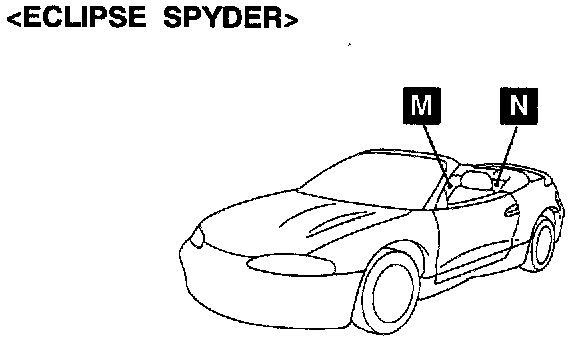

Control Unit Locations Overall View M,N:

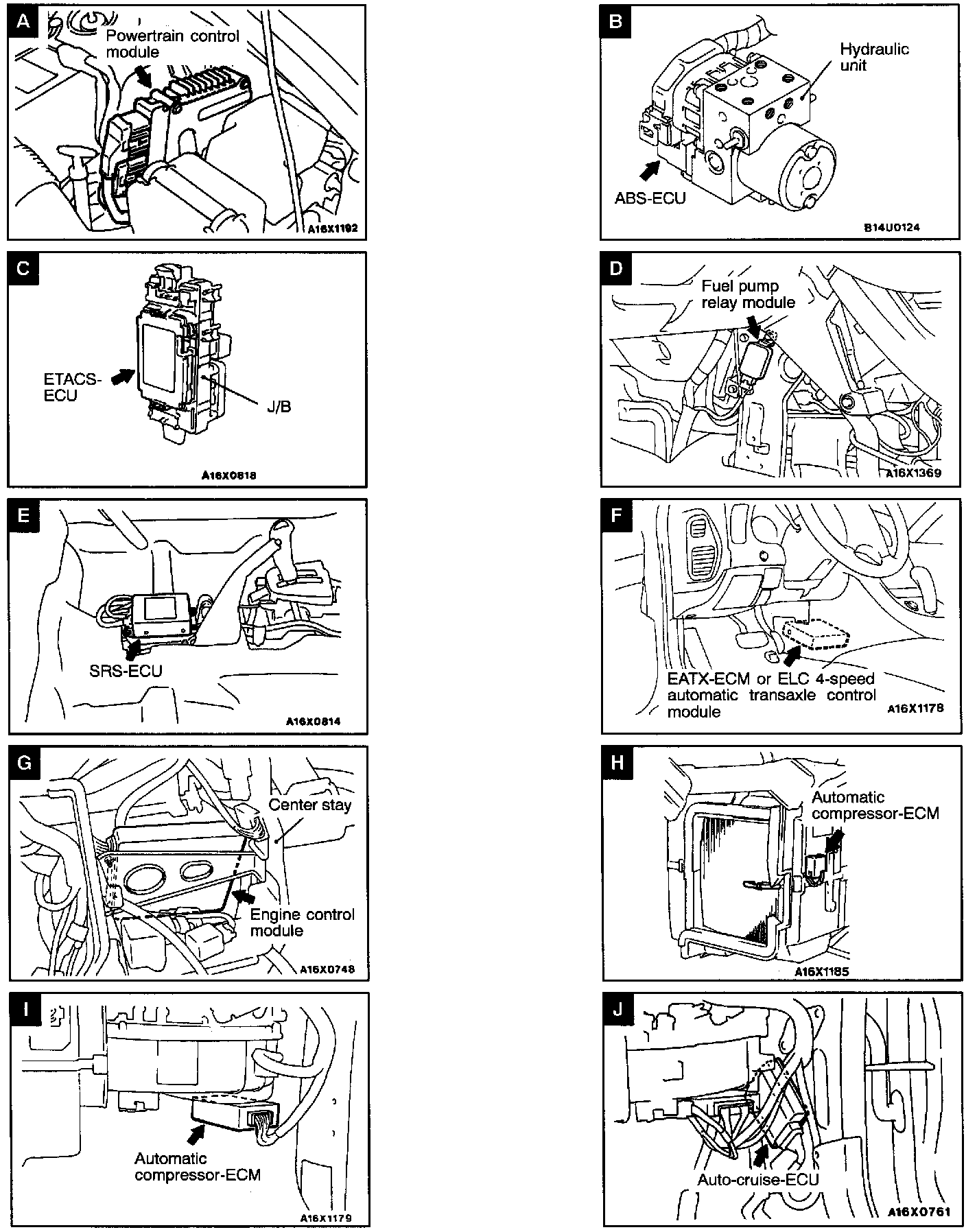

Control Unit Location Views A-J:

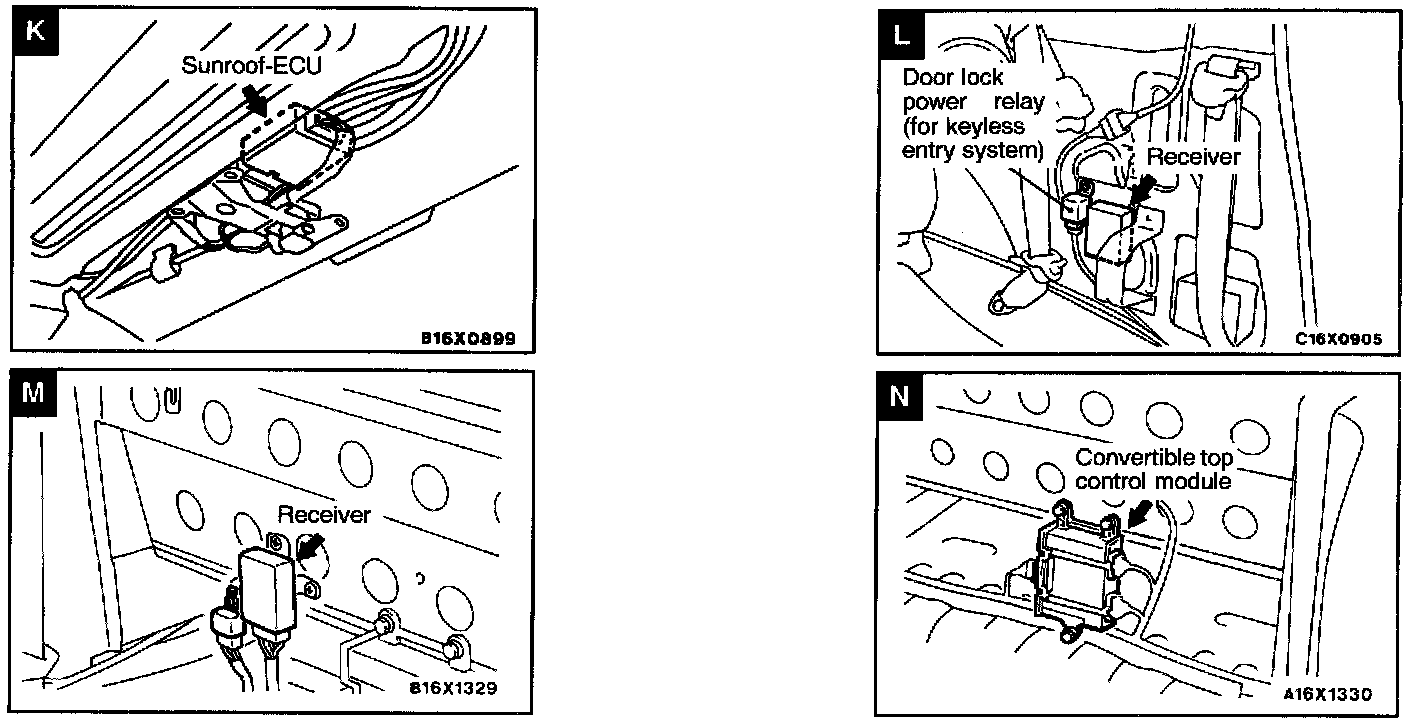

Control Unit Location Views K-N:

Name Symbol
ABS-ECU B
Automatic Compressor-ECM H
Auto-Cruise-ECU J
Convertible Top Control Module N
ELC 4-Speed Automatic Transaxle
Control Module F
Engine Control Module G
ETACS-ECU C
Fuel Pump Relay Module D
Receiver L
SRS-ECU E
Sunroof-ECU K
