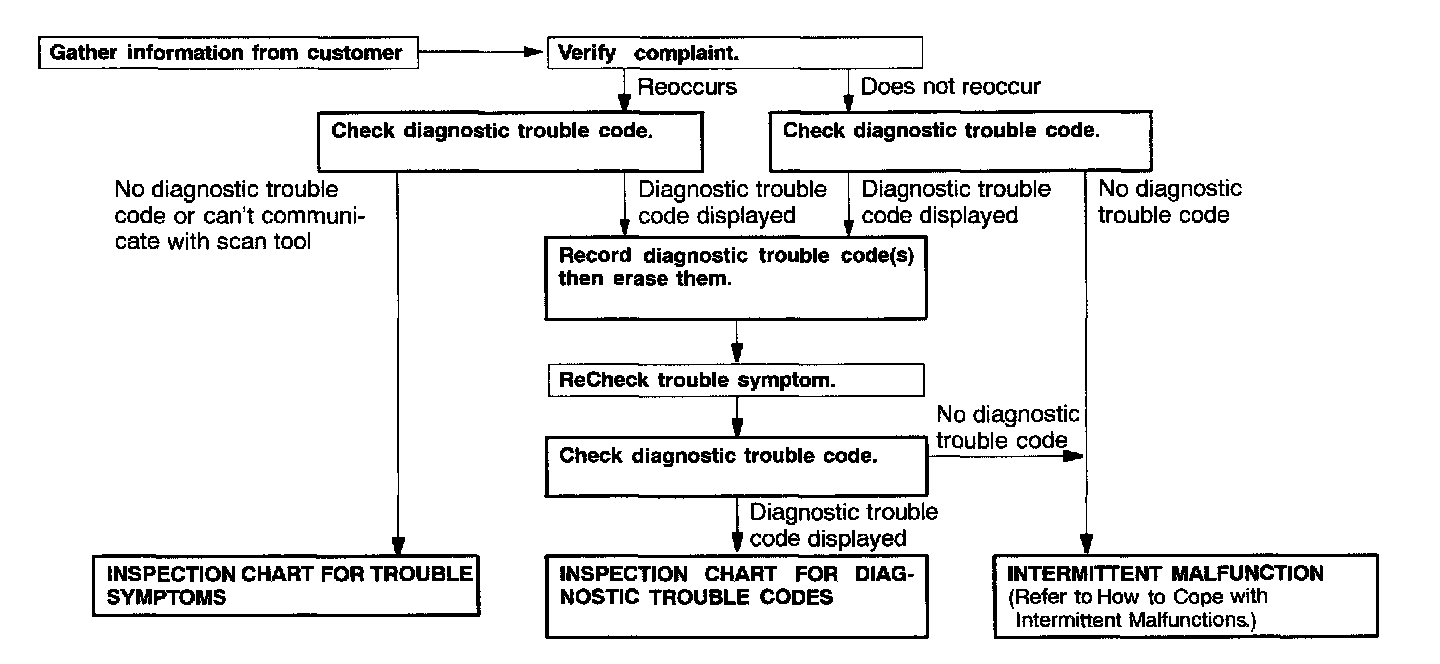

Flow of Diagnosis

NOTE: Before carrying out trouble diagnosis check to be sure that all of the following items are normal.

1. Is the vacuum hose correctly installed and undamaged?
2. Are the auto-cruise, accelerator; and throttle cables routed correctly?
3. Do the link assembly and cables move smoothly?
4. Is the each cable play at the within its standard value?
