Component Tests and General Diagnostics

HOW TO READ INPUT SWITCH CODES
1. Connect the scan tool or a voltmeter to the data link connector.

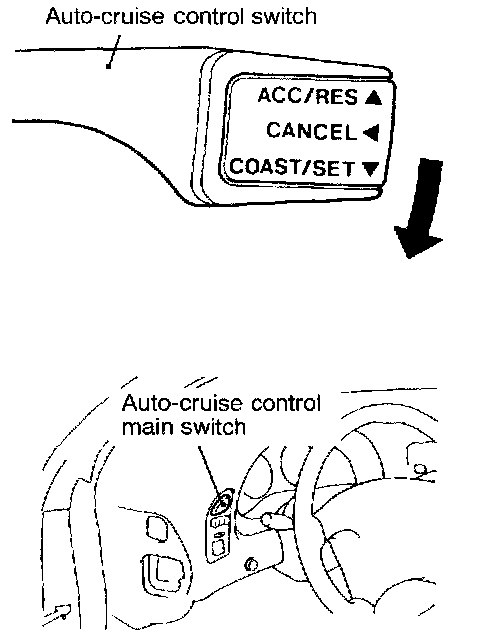

2. With the ignition switch in the ON position, turn the SET switch to the ON position.
3. Within 1 second after turning the auto-cruise control main switch to ON, turn the RESUME switch to ON.
4. Operate each switch listed in the input inspection table and take a reading of the input switch codes with the scan tool or the fluctuation of a voltmeter.

NOTE: These codes are output as voltage waveforms in the same way as above.

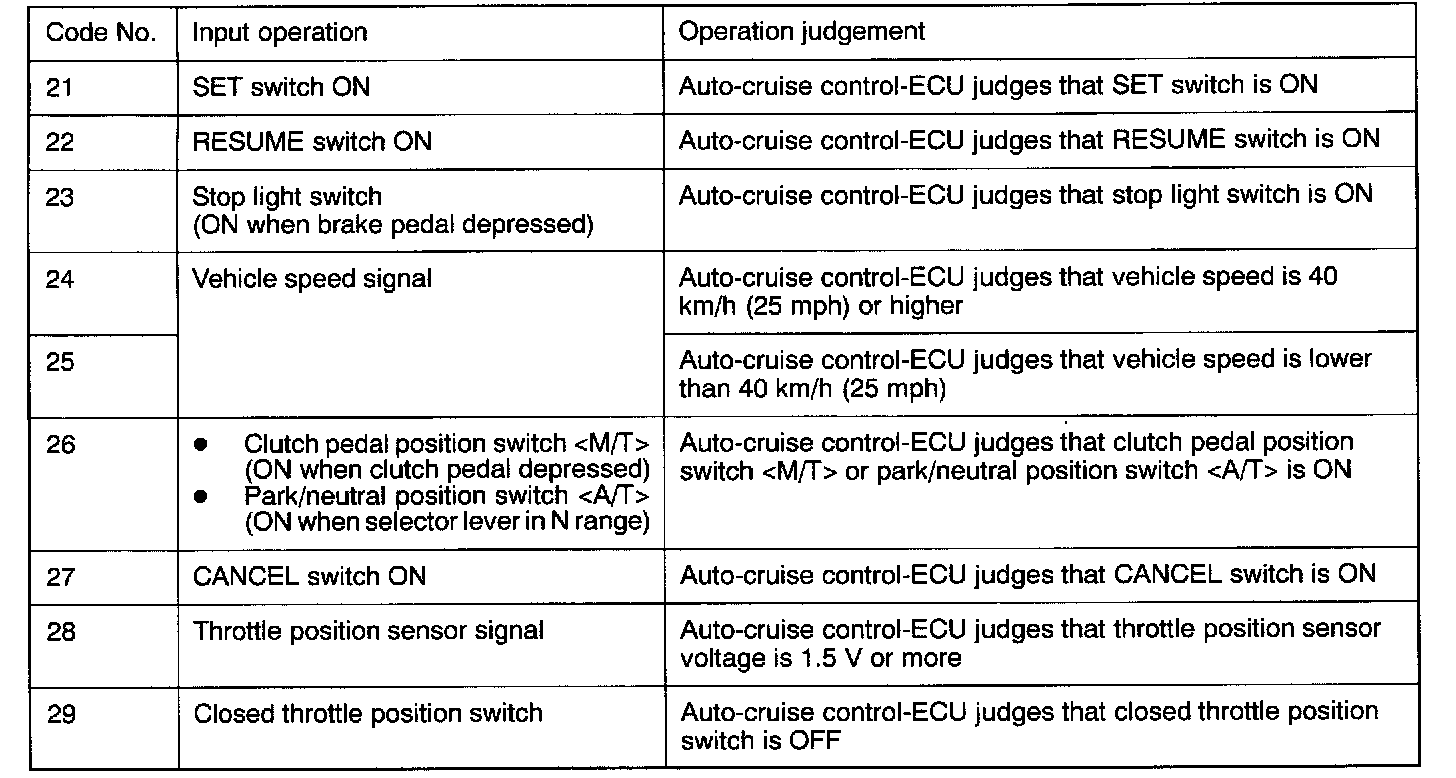

Input Inspection Table
