Parking Brake System: Description and Operation

GENERAL INFORMATION
The parking brake is of a mechanical rear-wheel brake construction in all vehicles drum-type or drum in disc-type brakes are employed depending on the vehicle model. The operation method utilizes a parking brake lever which is in an offset position at the passenger's side.

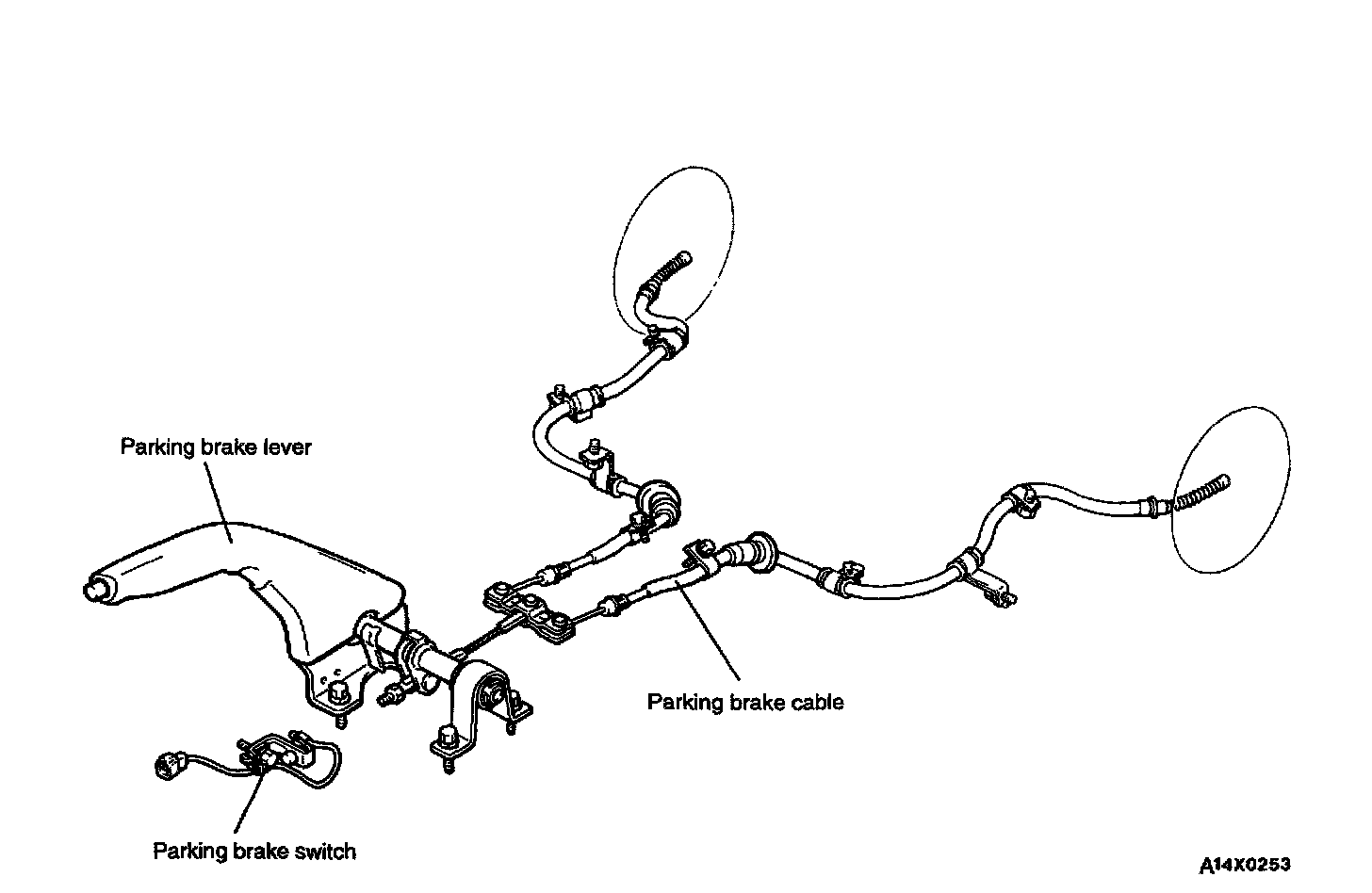

Construction Diagram
