With Antilock Brakes (ABS)

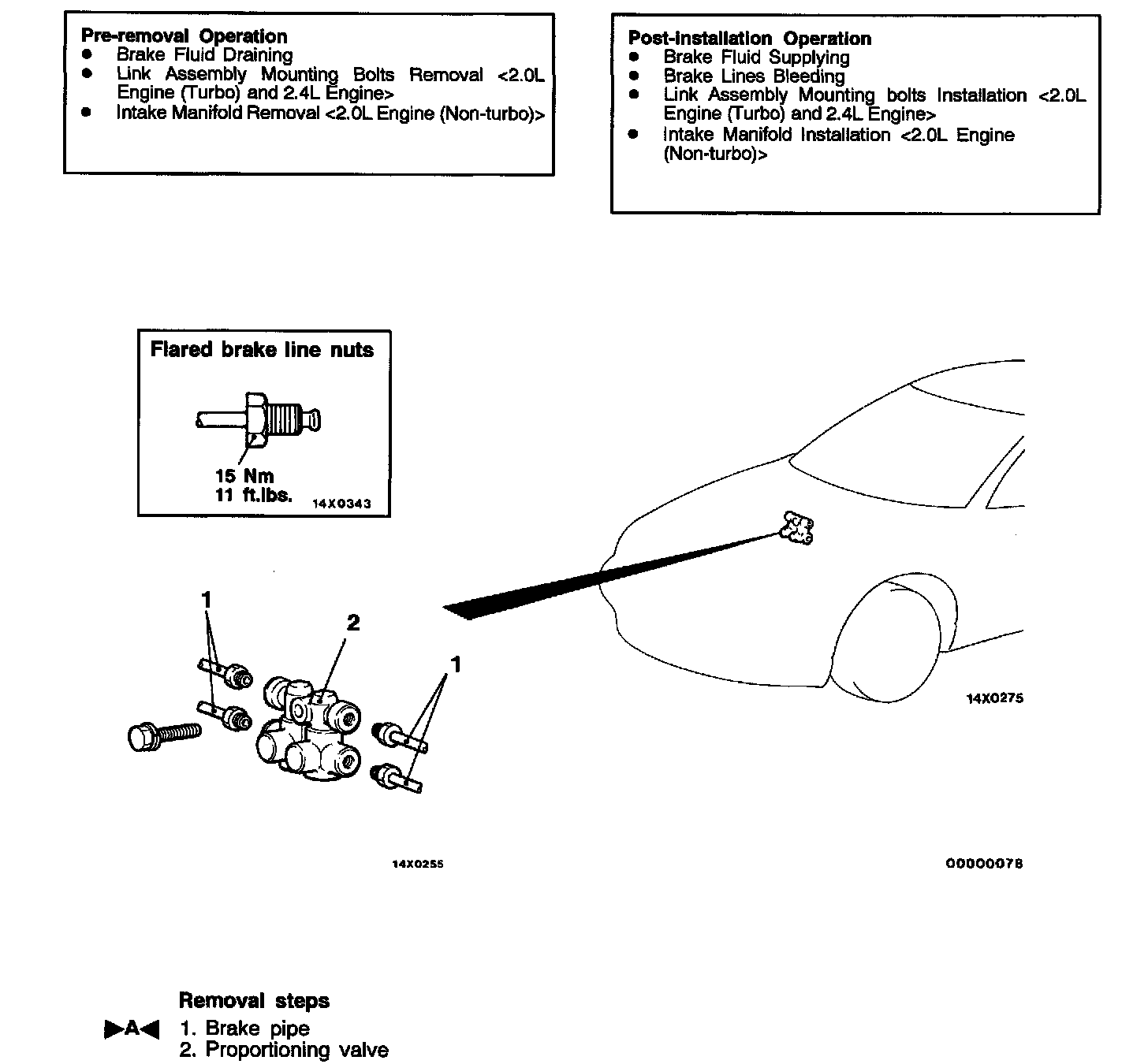

REMOVAL AND INSTALLATION

Installation Service Point
>A< Brake Pipe Connection

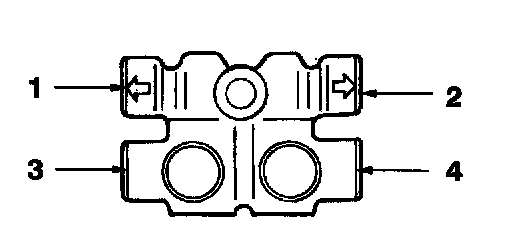

Connect the pipes to the proportioning valve as shown in the illustration.
1. Proportioning valve - Rear brake (L.H.)
2. Proportioning valve - Rear brake (R.H.)
3. Proportioning valve - Hydraulic unit
4. Proportioning valve - Hydraulic unit
