Brake Shoe: Service and Repair

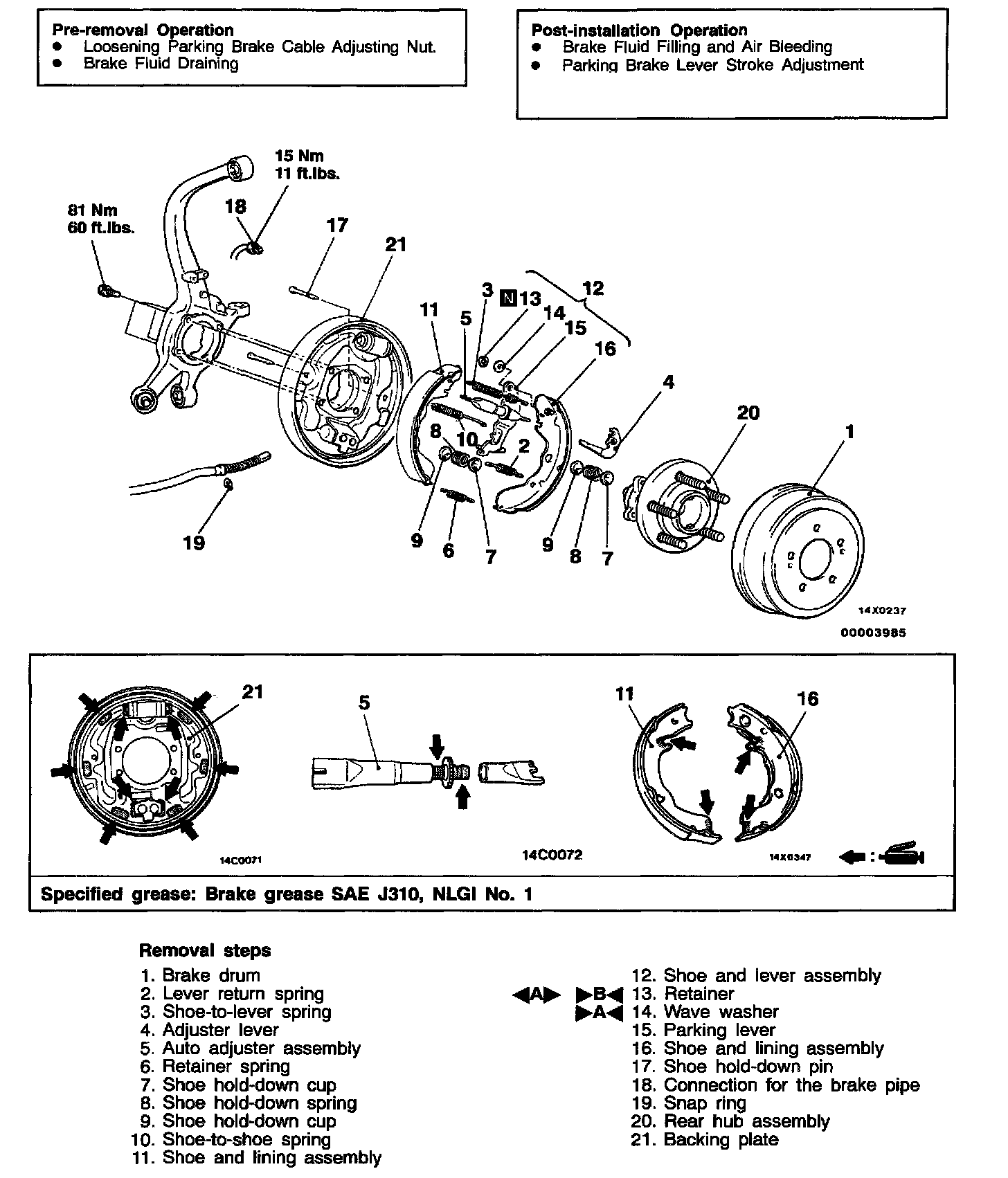

REMOVAL AND INSTALLATION
Removal Service Point
Retainer Removal
Use an flat-tipped screwdriver or the like to open up the retainer joint, and remove the retainer.
Installation Service Points

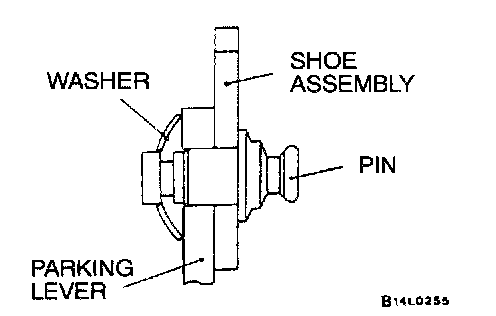

>A< Wave Washer Installation
Install the washer in the direction shown in the illustration.
>B< Retainer Installation
Use pliers or the like to install the retainer on the pin securely.
