Rear Disc Brakes

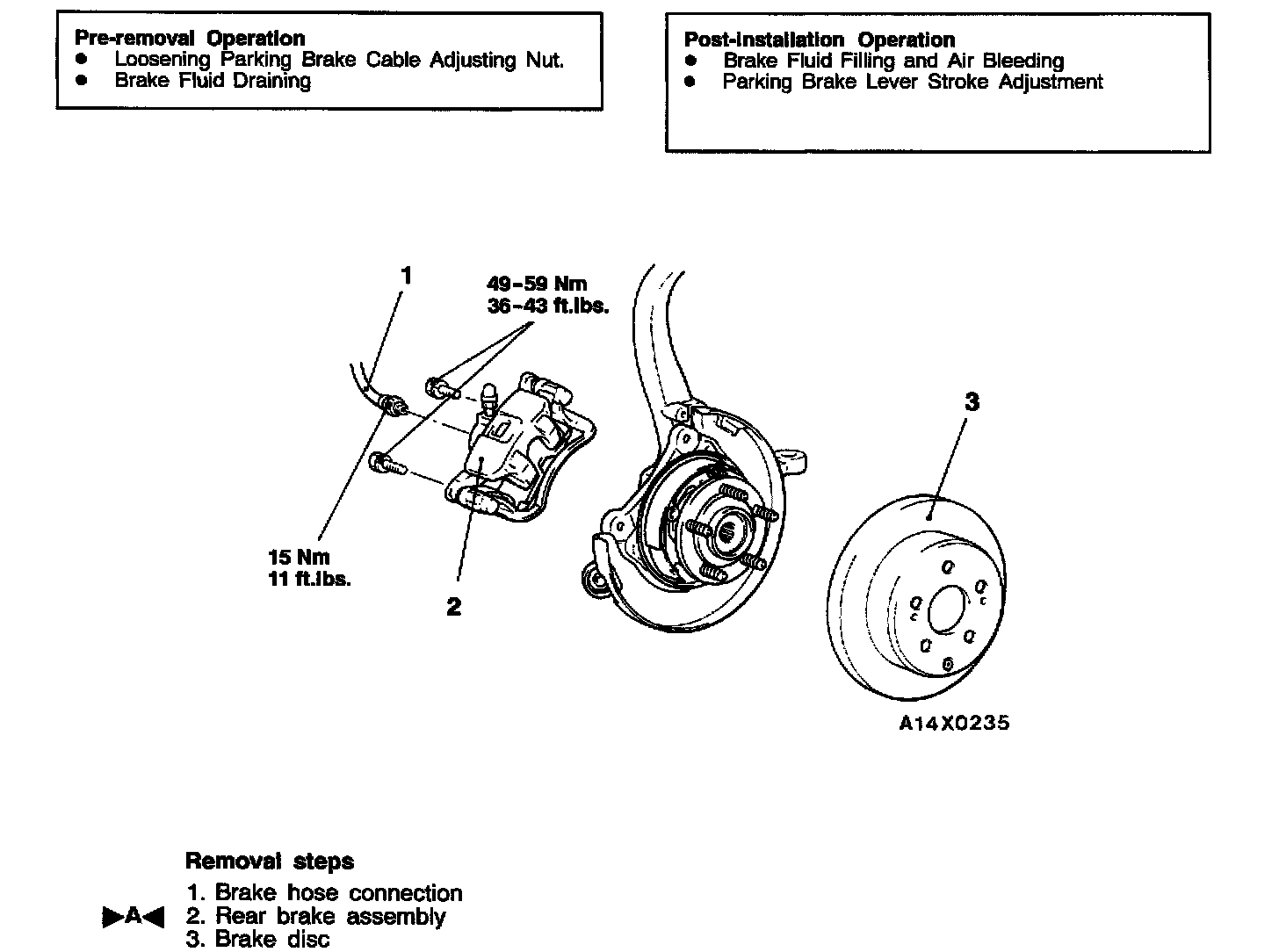

REMOVAL AND INSTALLATION

Installation Service Point
>A< Rear Brake Assembly Installation
Install the rear brake assembly and measure the disc brake drag torque.

INSPECTION
- Check the brake disc for damage.
- Check the brake disc for thickness.
- Check the brake disc for run-out.
