Front Disc Brakes

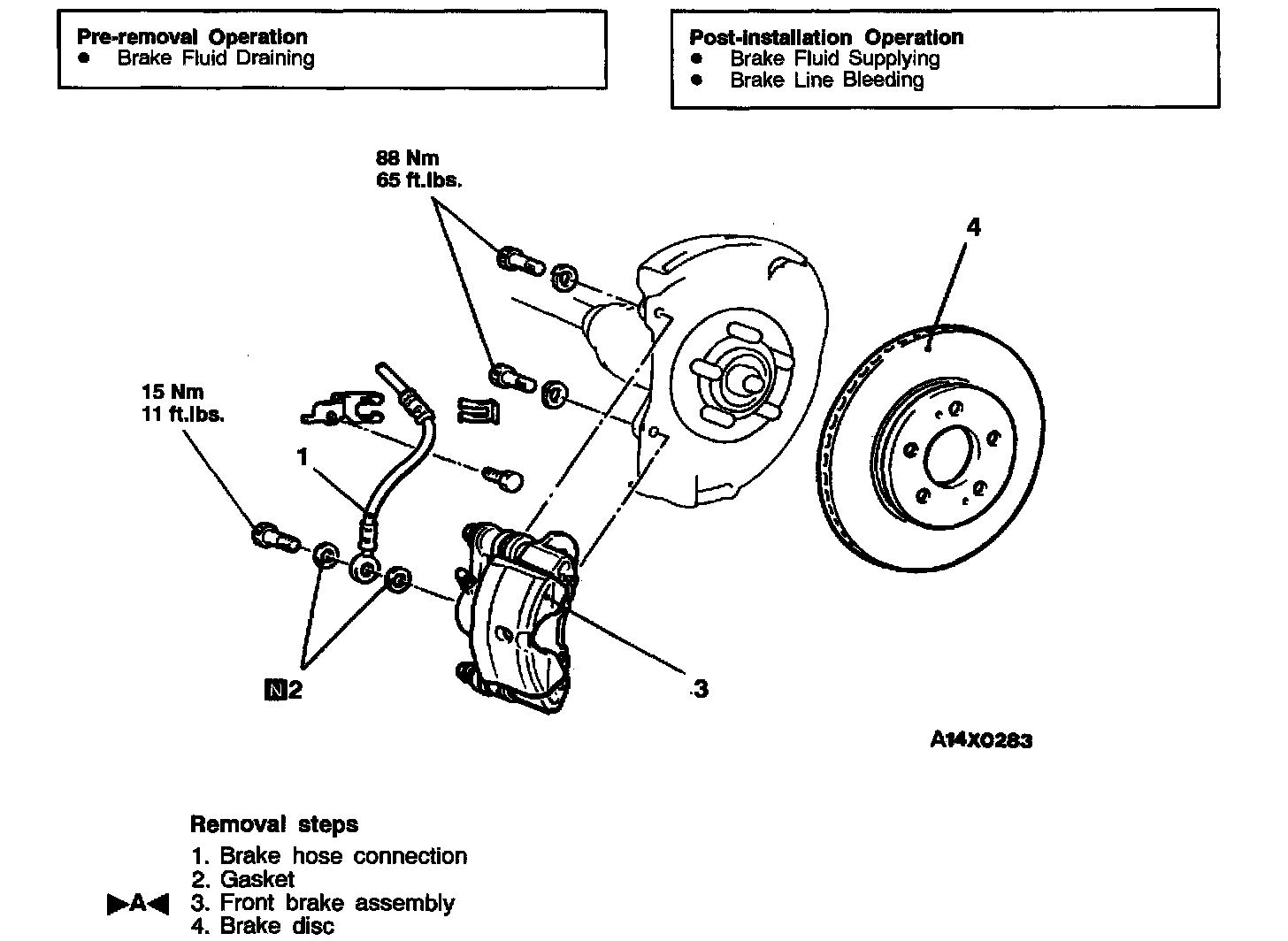

REMOVAL AND INSTALLATION

Installation Service Point
>A< Front Brake Assembly Installation
Install the front brake assembly and measure the disc brake drag torque.

INSPECTION
Check the brake disc for damage.
