Brakes and Traction Control: Description and Operation

GENERAL INFORMATION
The brake system has high reliability and durability which maintains excellent braking performance.
The main features are as follows.
- A dual type master cylinder is equipped on all models.
Both a single type and a tandem type brake booster have been adopted.
- Disc brakes has been adopted as the front brakes.
AWD: Floating caliper, double-piston and ventilated disc (M-R56W)
FWD: Floating caliper, single-piston and ventilated disc (M-R46V)
- Disc brakes has been adopted as the rear brakes. [Floating caliper, single-piston and solid disc (M-R45S)]

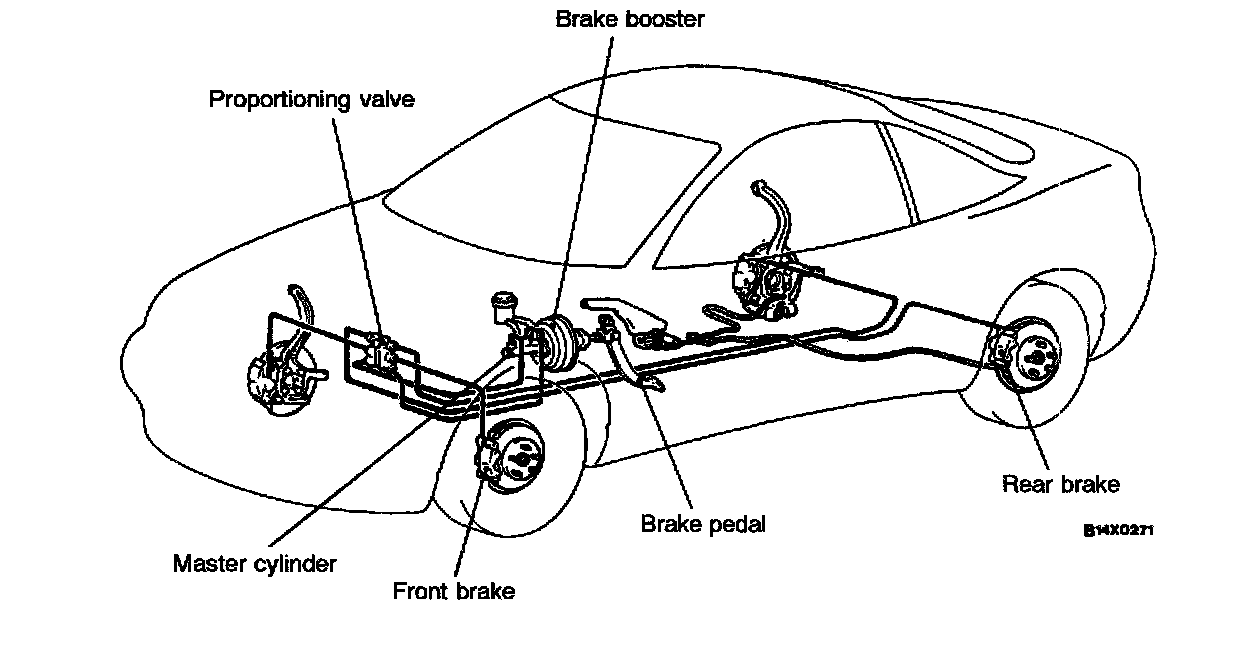

Construction Diagram
