Symptom Chart

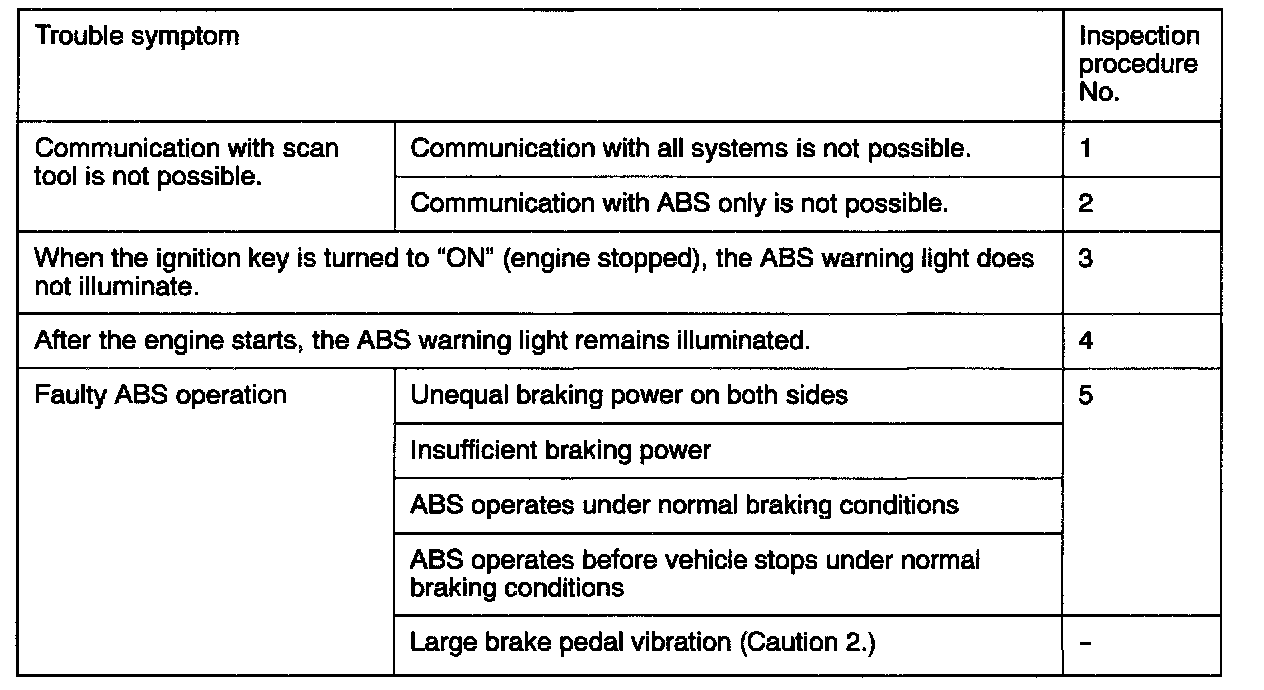

INSPECTION CHART FOR TROUBLE SYMPTOMS
Get an understanding of the trouble symptoms and check according to the inspection procedure chart.





Caution:
1. If steering movements are made when driving at high speed, or when driving on road surfaces with low frictional resistance, or when passing over bumps, the ABS may operate even through sudden braking is not being applied. Because of this, when getting information from the customer, check if the problem occurred while driving under such conditions as these.
2. During ABS operation changes in the feeling of the brake pedal (vibration may occur). Such changes are due to intermittent changes in hydraulic pressure inside the brake line to prevent the wheels from locking, and considered normal.
