Component Tests and General Diagnostics

ACTUATOR TEST REFERENCE TABLE

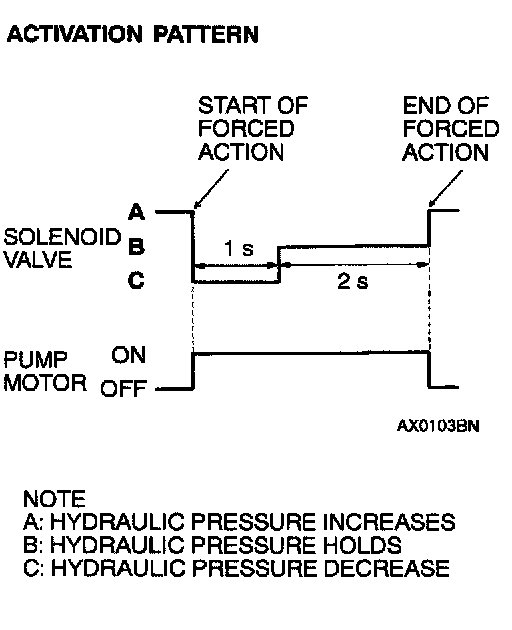

The scan tool activates the following actuators for testing.








NOTE:
1. If the battery runs down, actuator testing cannot be carried out.
2. Actuator testing is only possible when the vehicle is stationary. If the vehicle speed during actuator testing exceeds 10 km/h (6 mph), forced actuation will be cancelled.
3. During the actuator test, the ABS warning light will illuminate and the anti-lock control will be disabled.
