Sunroof / Moonroof: Adjustments

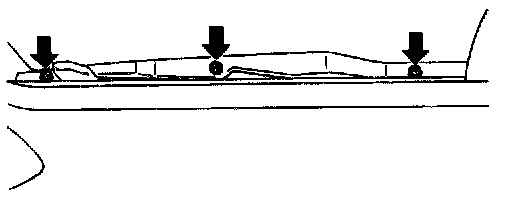

With the sunroof in the closed position, adjust the sunroof glass to 1 mm (0.04 in.) below roof surface at front of the glass and 1 mm (0.04 in.) above roof surface at rear of the glass and tighten the sunroof glass attaching screws.
