Mirrors: Service and Repair

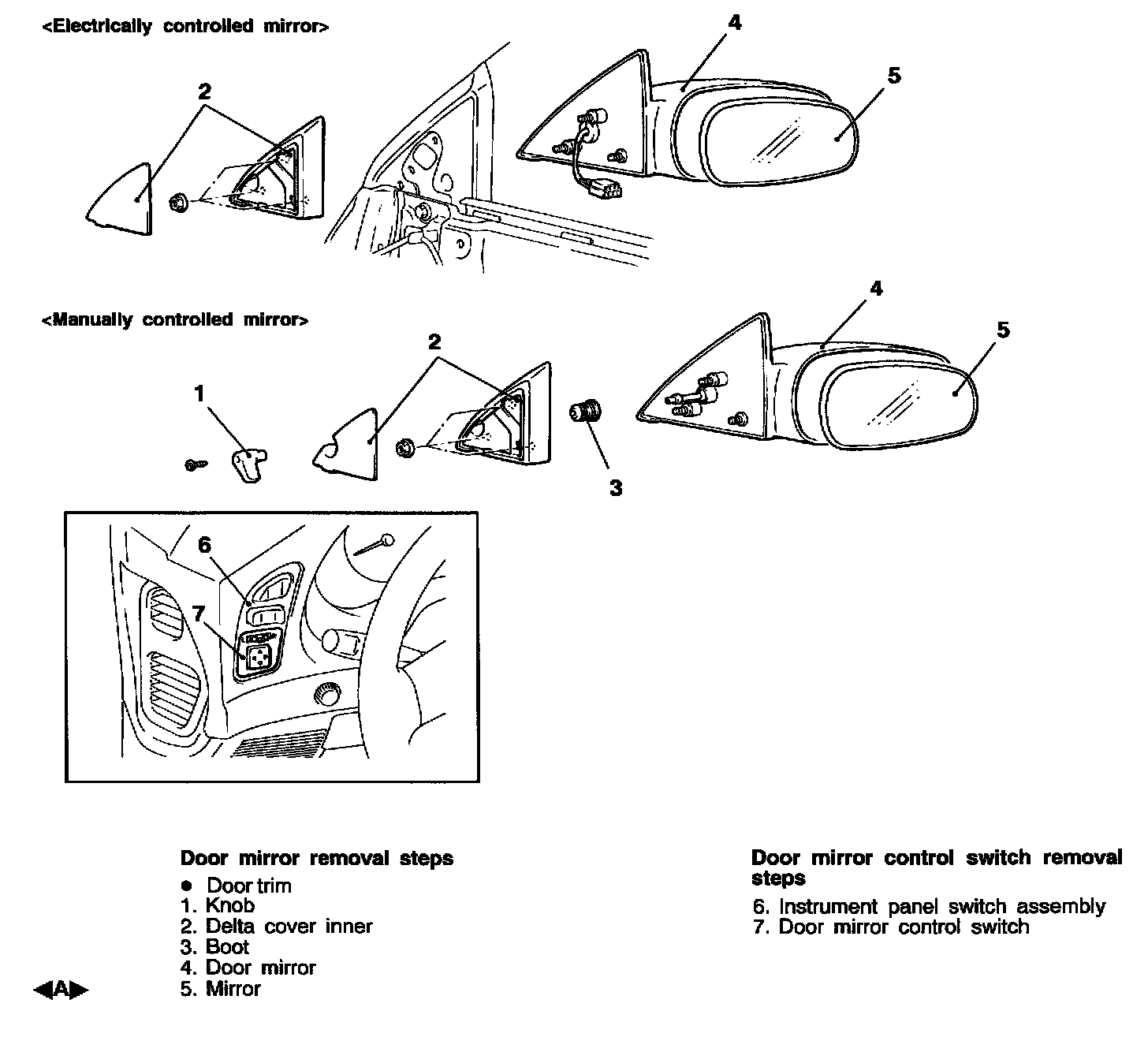

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

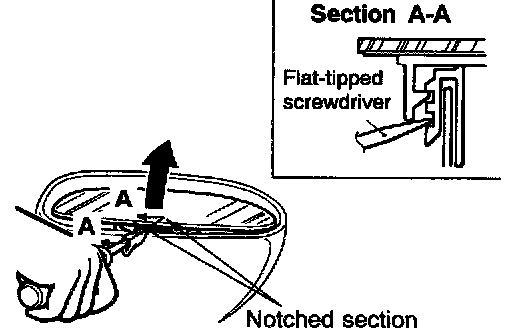

[A] MIRROR REMOVAL

Turn the mirror by hand so that it faces upwards, insert the flat tipped screwdriver wound with masking tape into the notched section, and lever out the mirror to remove it.
