Vehicle Without Keyless Entry System

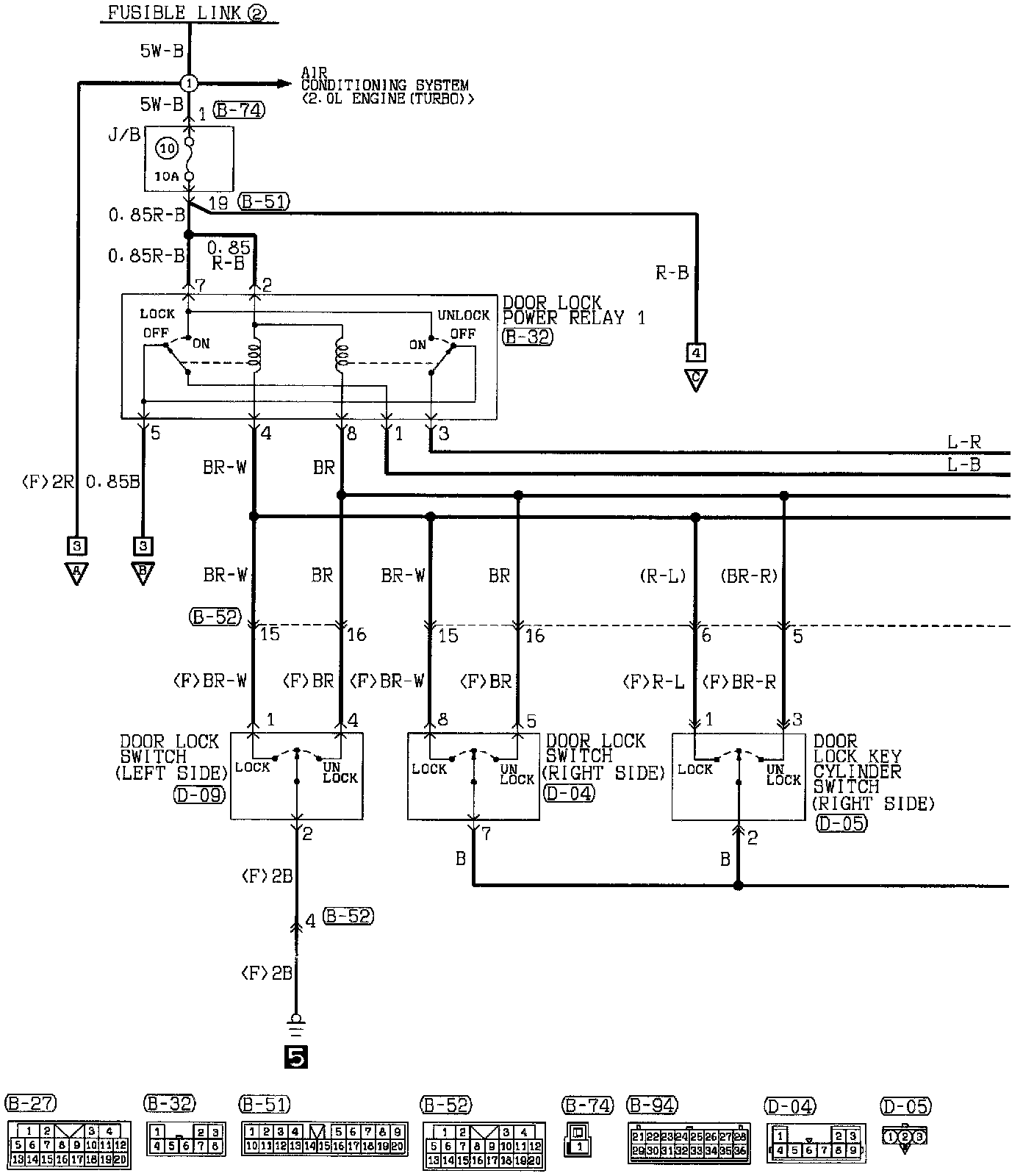

Central Door Locking System (Part 1 Of 4):

Door Lock Key Cylinder Switch (Right Side)
Door Lock Power Relay 1
Door Lock Switch (Left & Right Side)
J/B

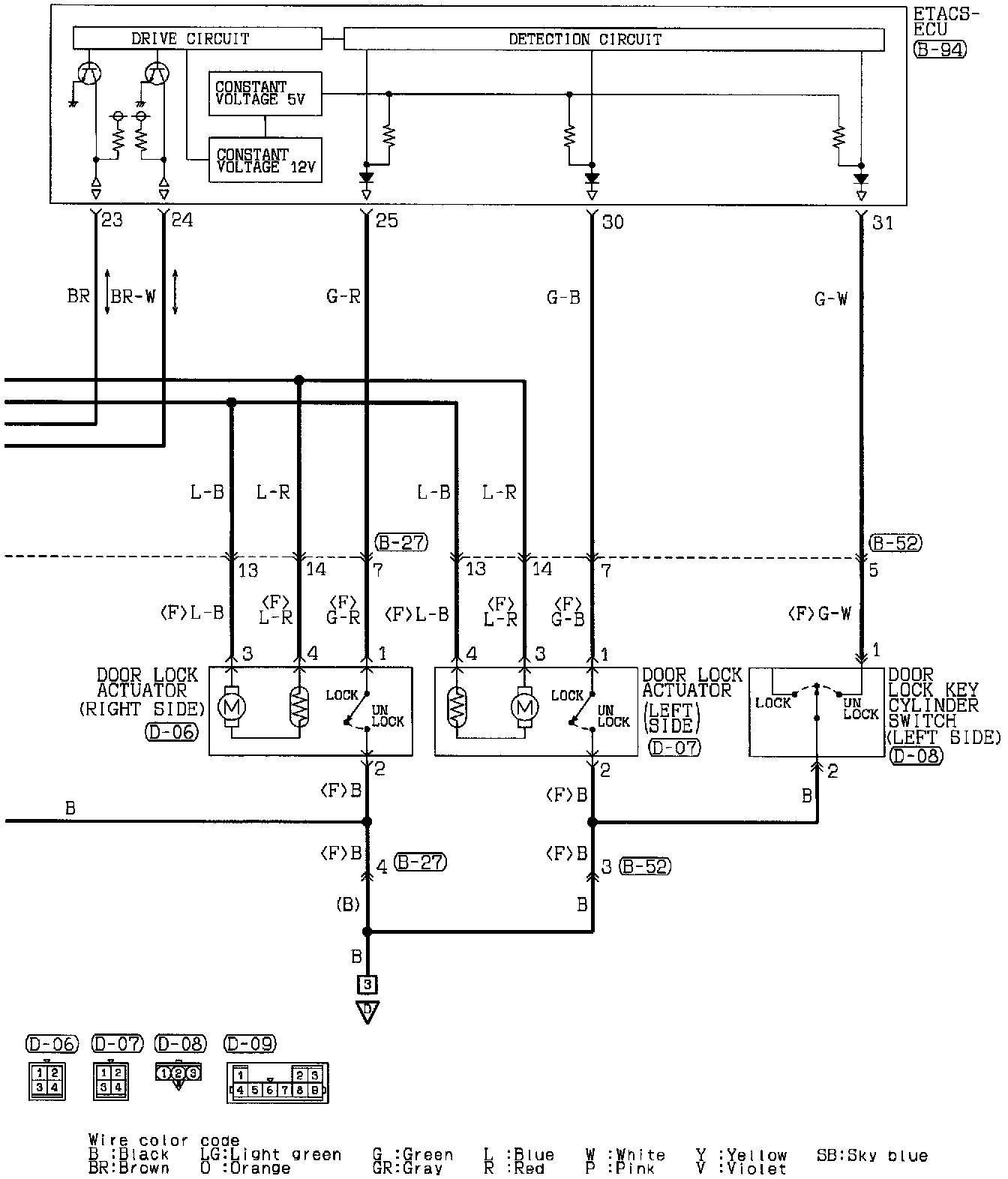

Central Door Locking System (Part 2 Of 4):

Door Lock Actuator (Left & Right Side)
Door Lock Key Cylinder Switch (Left Side)
ETACS-ECU

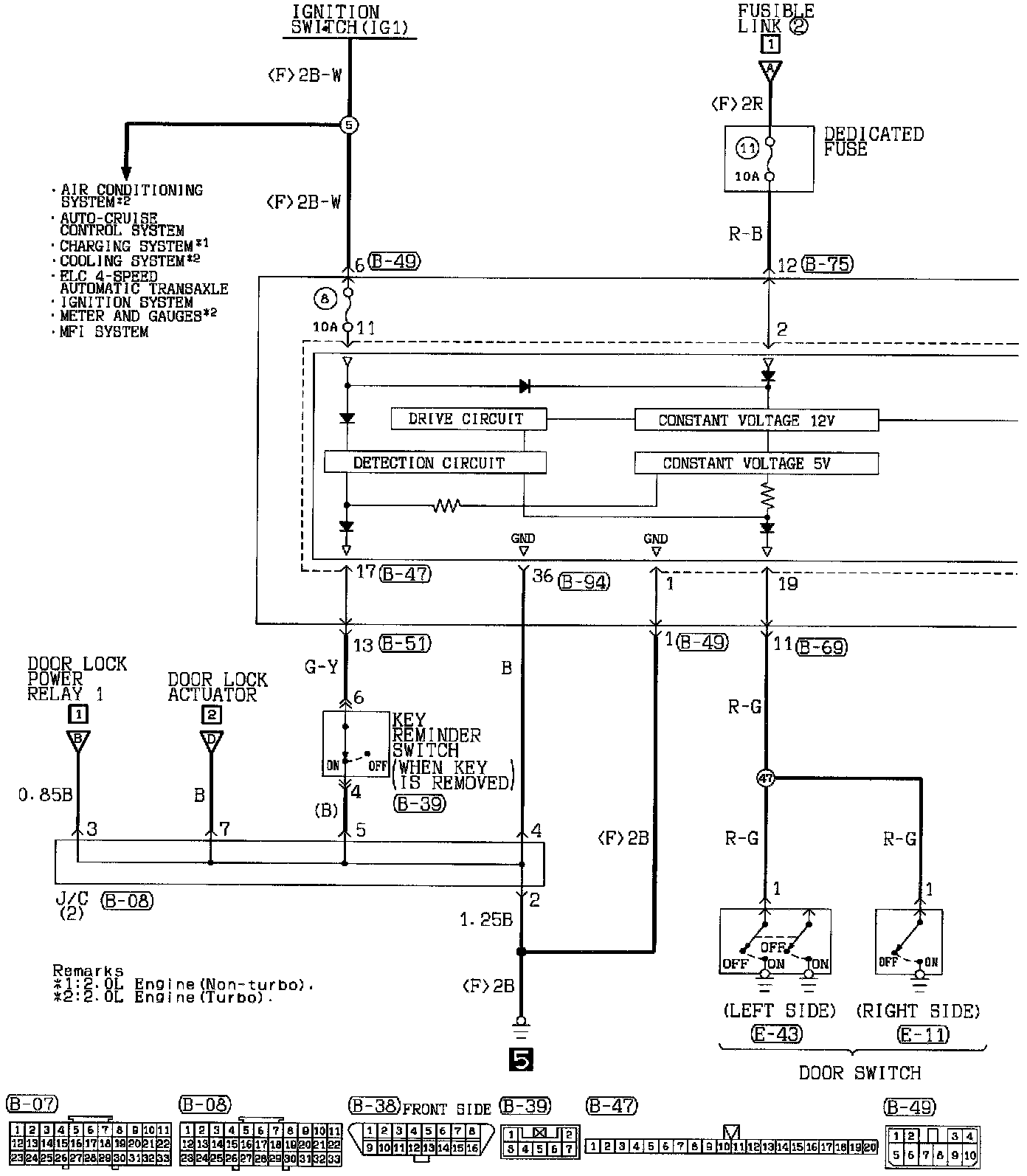

Central Door Locking System (Part 3 Of 4):

Dedicated Fuse
Door Switch (Left & Right Side)
J/B
J/C (2)
Key Reminder Switch(When Key is Removed)

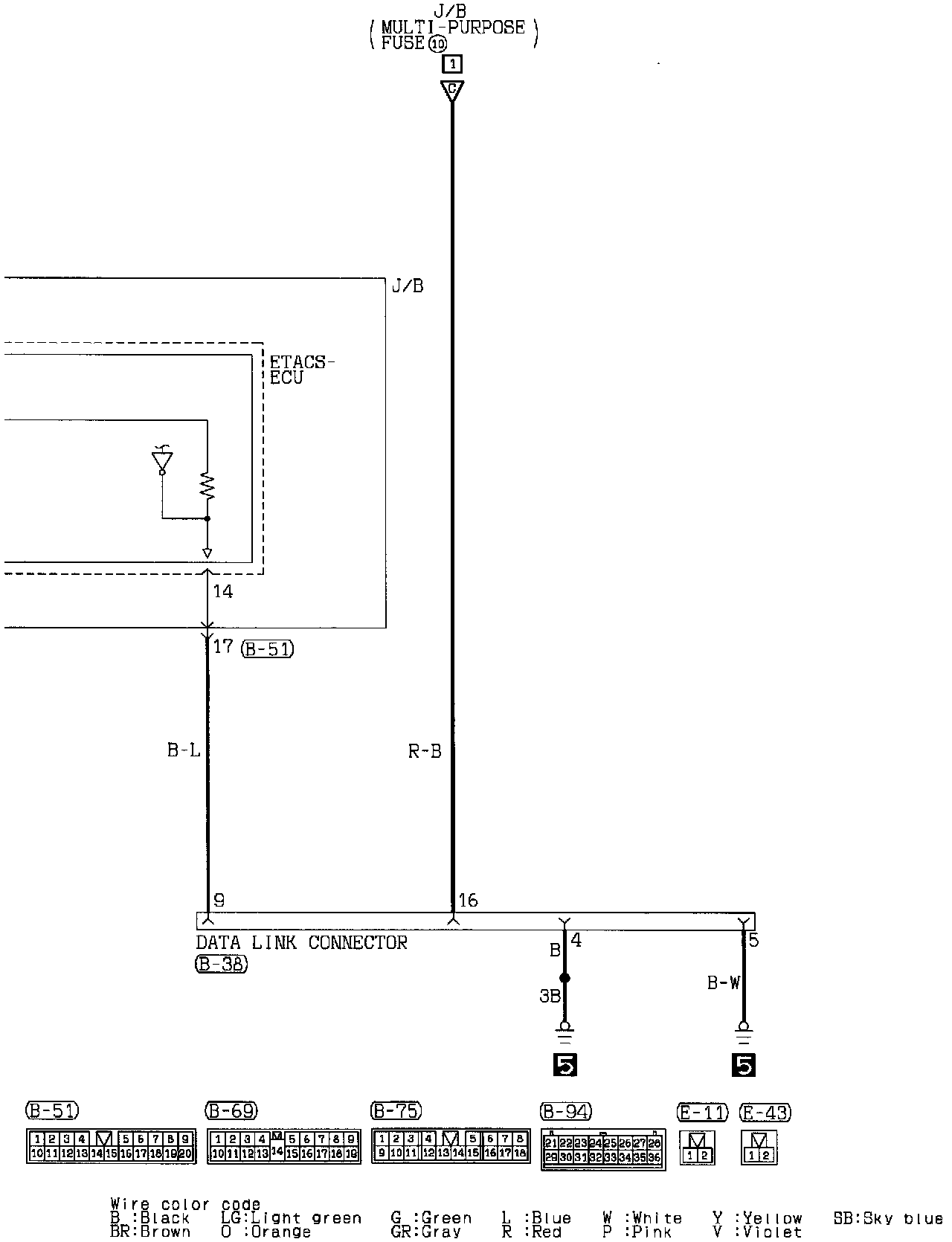

Central Door Locking System (Part 4 Of 4):

Data Link Connector
J/B
- ETACS-ECU
