Headliner: Service and Repair

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS

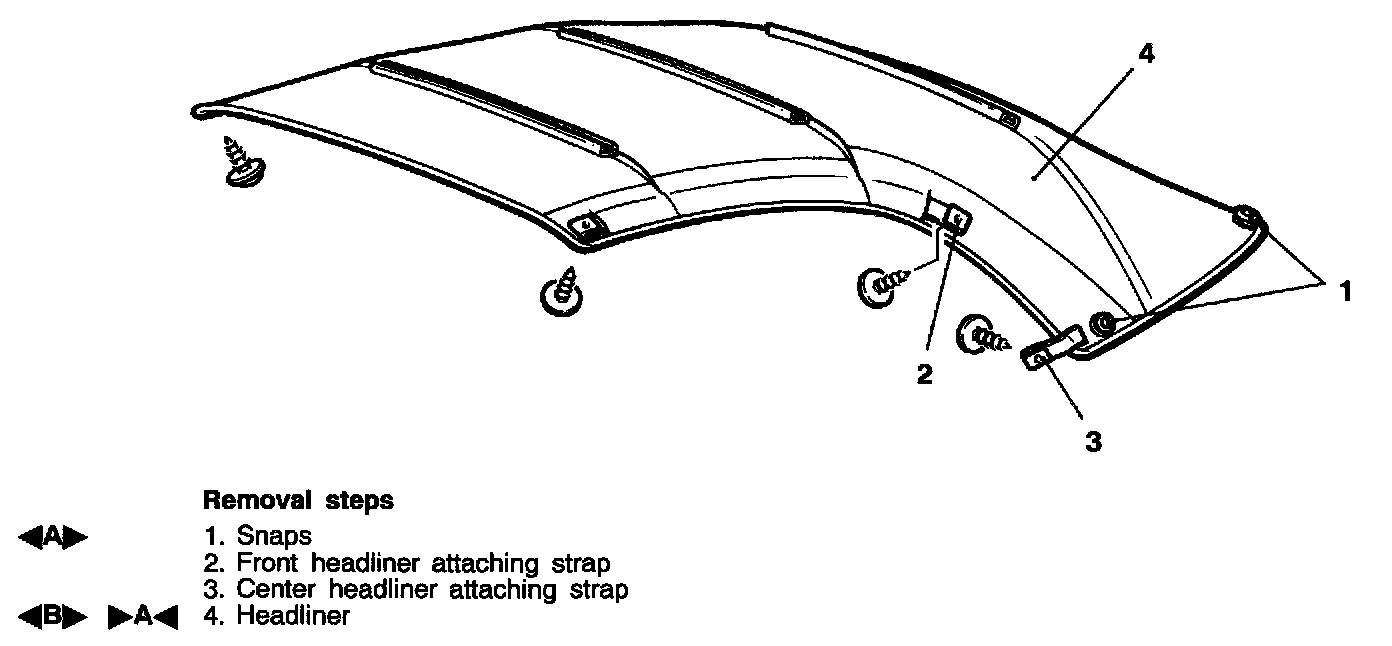

FRONT HEADLINER ATTACHING STRAP REMOVAL
From a completely closed position, open the convertible top half-way.




HEADLINER REMOVAL
Mark the bows lightly at the end of each retainer, then pry the retainer from the bow. Remove the headliner.

INSTALLATION SERVICE POINT

>A< HEADLINER INSTALLATION

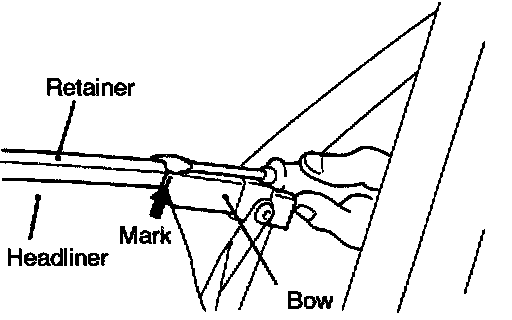

Hook headliner retainer to back side of bow, then align the end of the retainer with the mark and snap front of retainer onto bow completely.
