Hood: Service and Repair

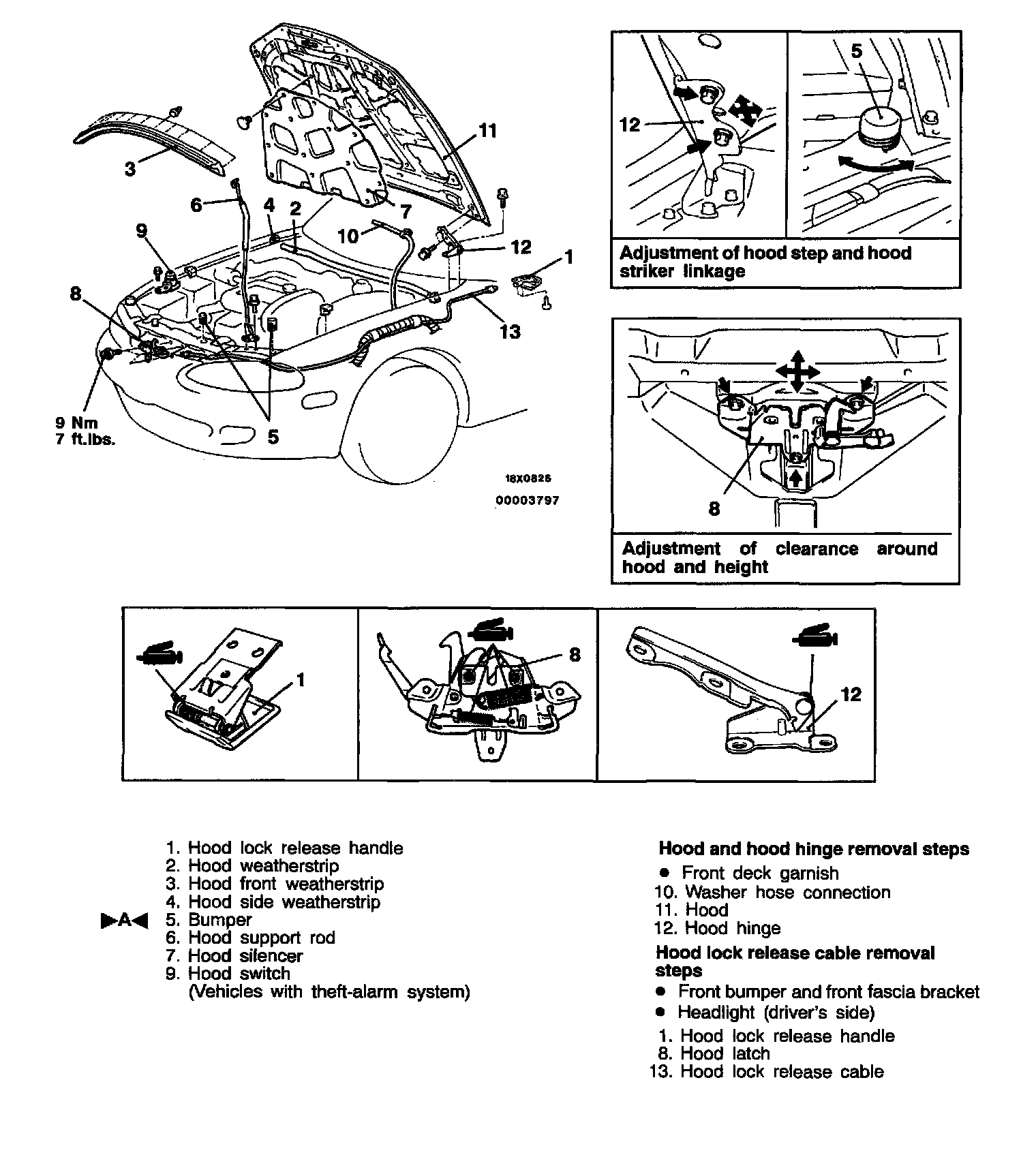

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

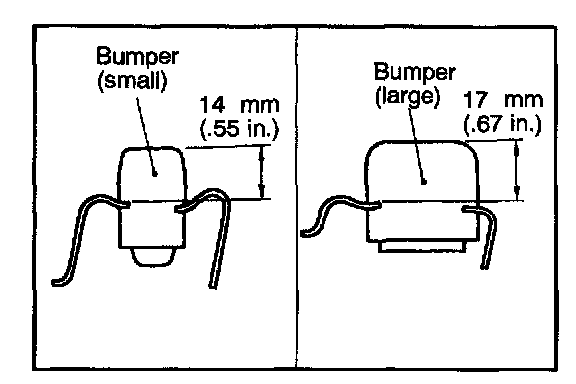

]A[ BUMPER INSTALLATION
Install the bumper as shown in the diagram.
