Front Door: Adjustments

DOOR FIT ADJUSTMENT

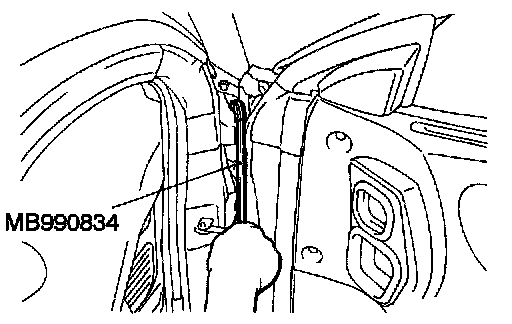

1. Use the special tool to loosen the hinge mounting bolts on the body side.
2. When there is a stepped section in the door and body, use the special tool to loosen the door hinge mounting bolt on the door side and adjust the door fit.

CAUTION: Attach protection tape to the fender edges where the hinge is installed.

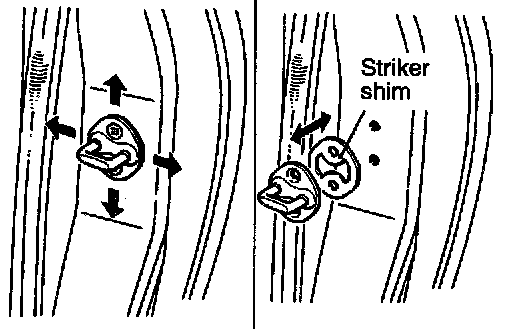

3. if the door is hard to open or close, use the shim or move the striker up and down or left and right to adjust the linking of the striker and the door latch.
