Antenna Cable: Service and Repair

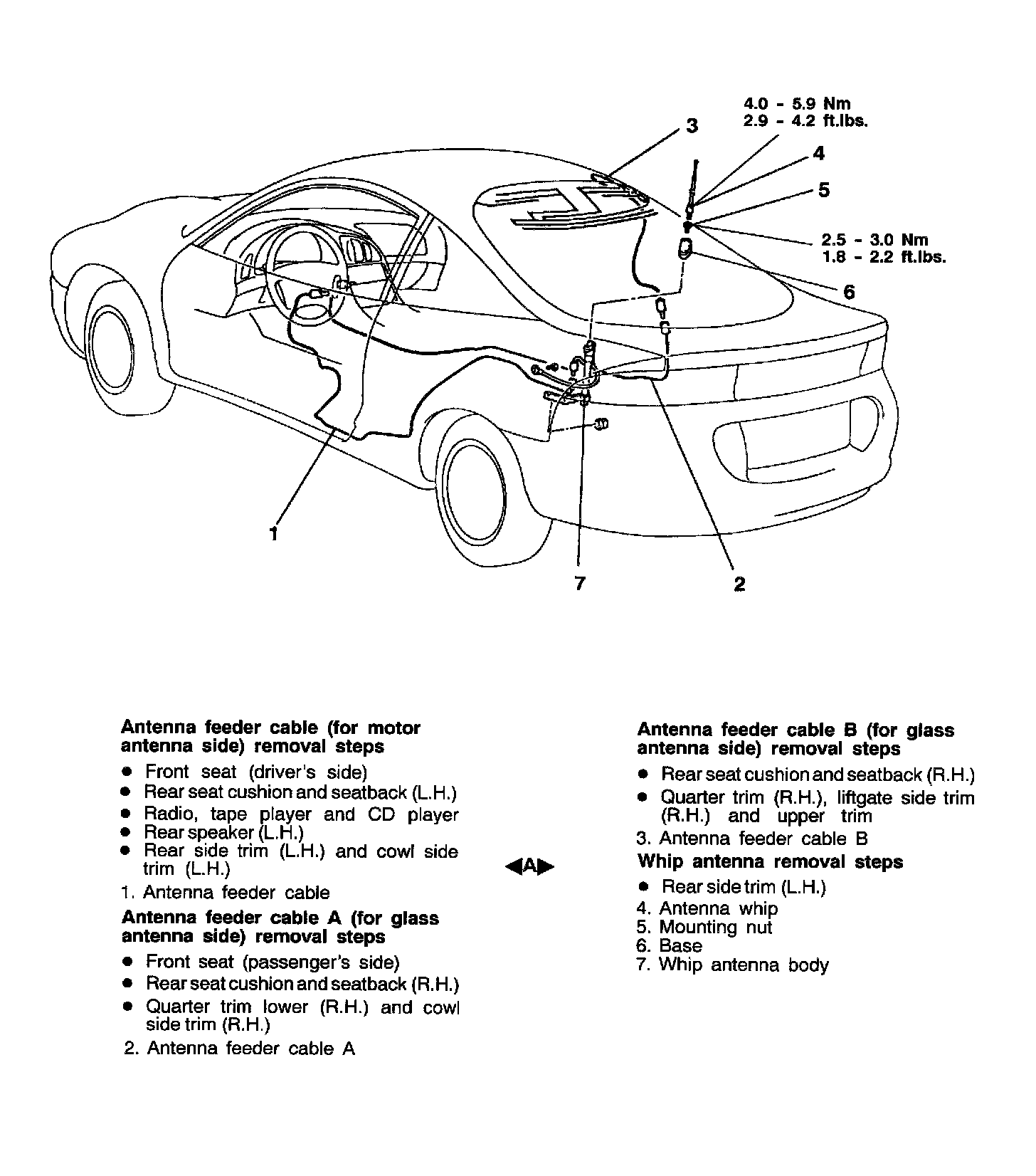

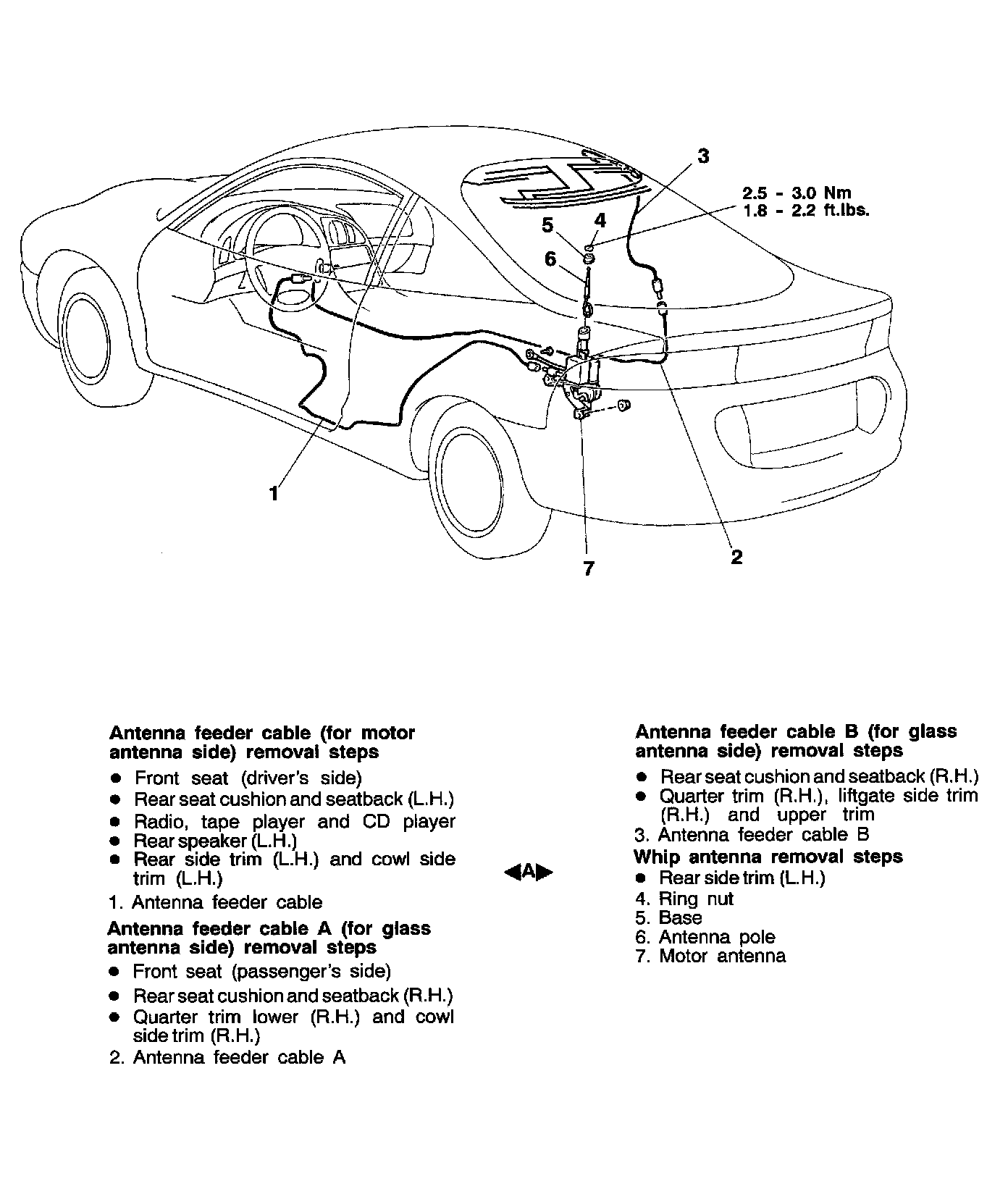

REMOVAL AND INSTALLATION



















REMOVAL SERVICE POINTS
ANTENNA FEEDER CABLE B REMOVAL

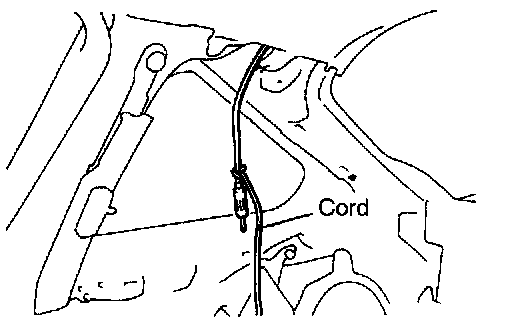

1. Tie a cord to the end of the antenna feeder cable.

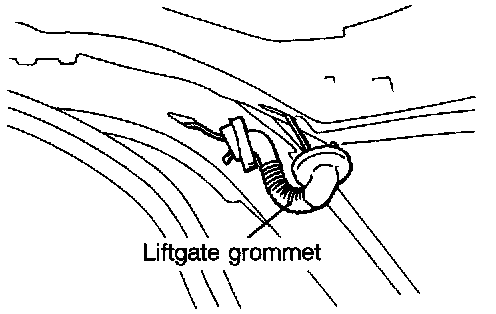

2. Remove the liftgate grommet.
3. Pull out the antenna feeder cable little by little to remove it.
