Home >> Mitsubishi >> 1999 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Air Bag Systems >> DTC 43 >> SRS Warning Light Drive Circuit System Fault 1 (Light Does Not Illuminate)

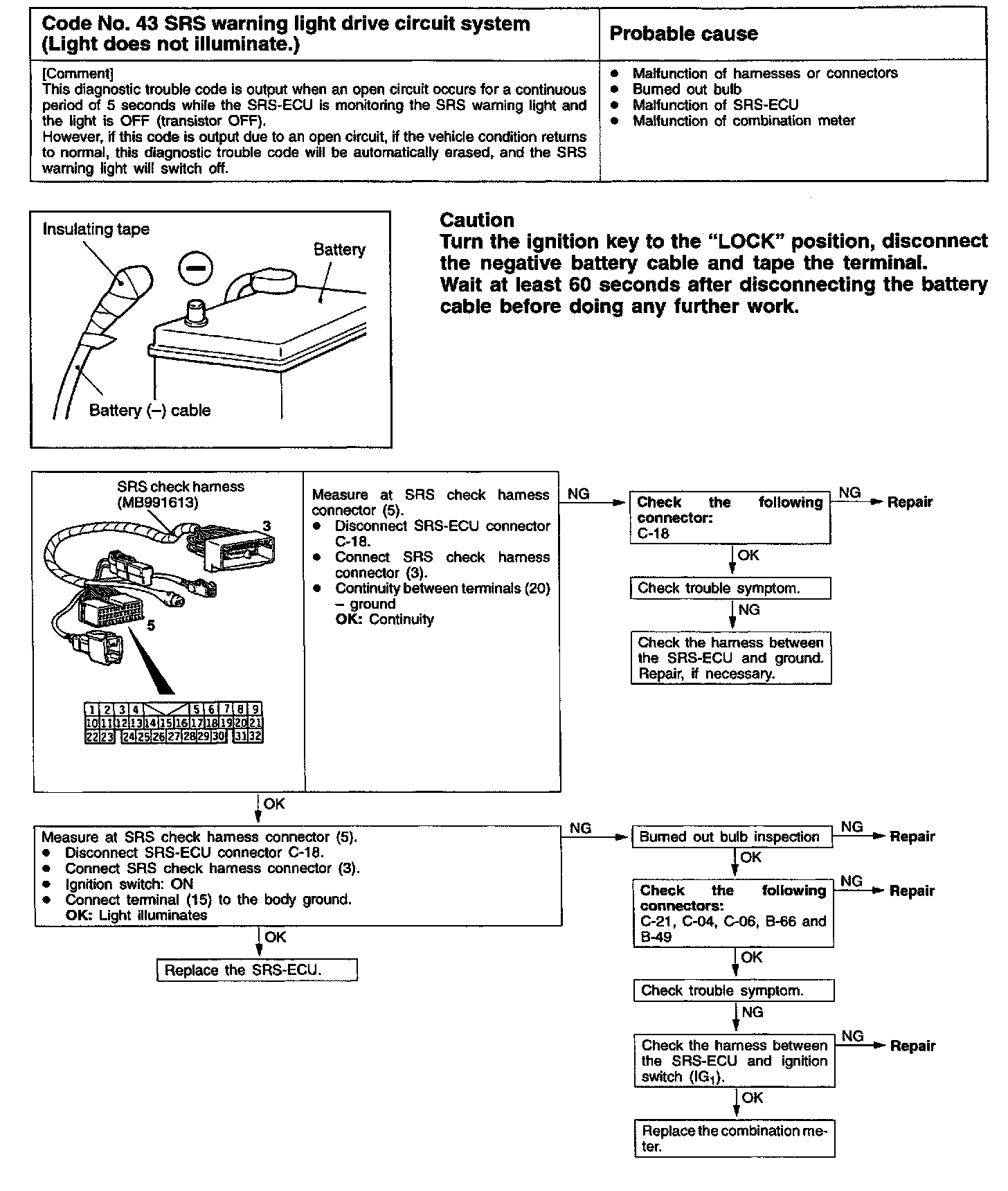

SRS Warning Light Drive Circuit System Fault 1 (Light Does Not Illuminate)

Code 43 / Light Does Not illuminate:
