Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Anti-Lock Braking System (ABS)
Anti-Lock Braking System (ABS)

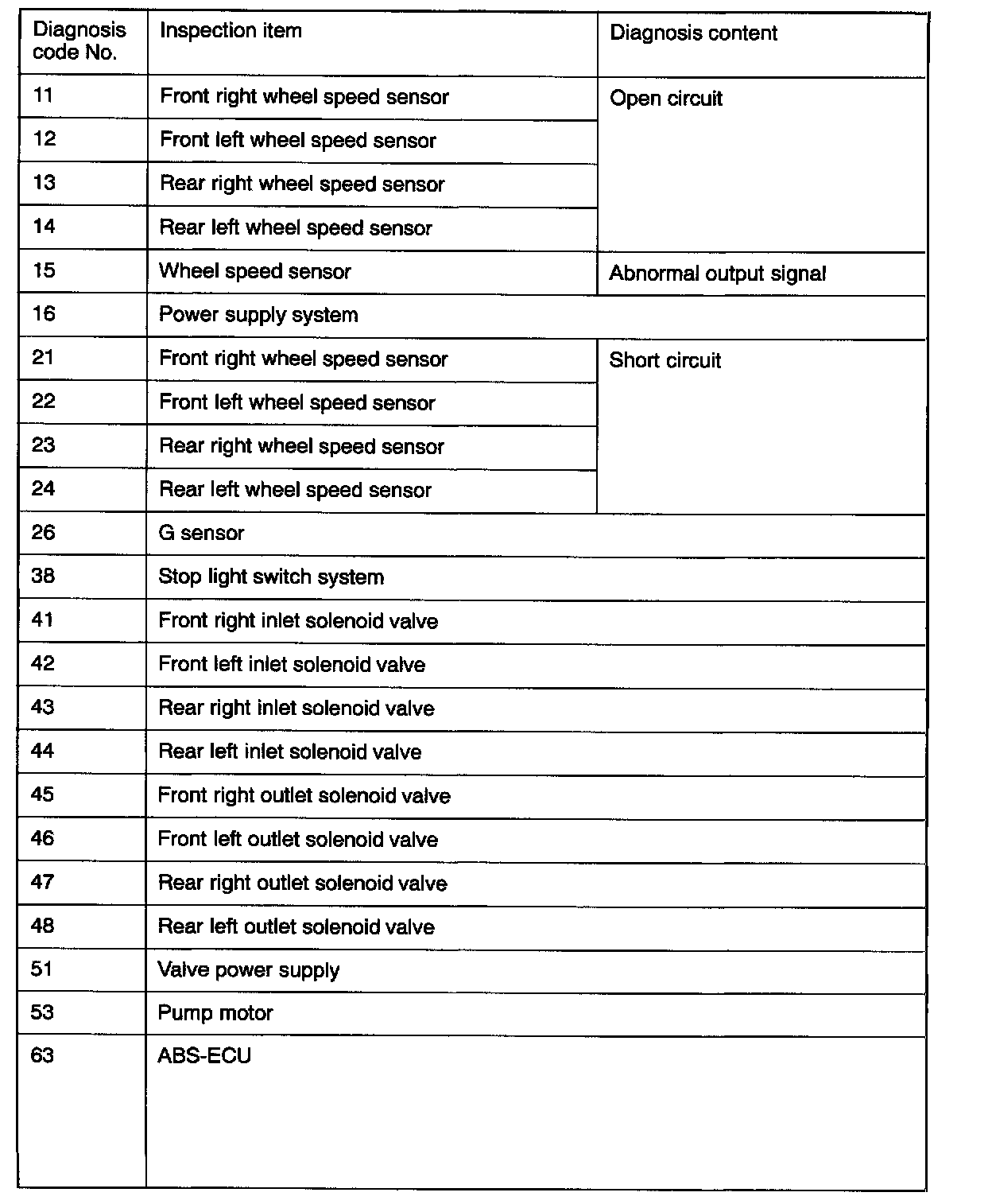

INSPECTION CHART FOR DIAGNOSTIC TROUBLE CODES
Check according to the inspection chart that is appropriate for the diagnostic trouble code.
