Water Leak Test

WATER TEST
1. Close the roof lid tightly.

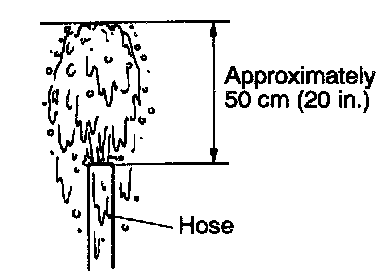

2. Hold the hose upward and adjust water fountain to approximately 50 cm (20 in.) high.

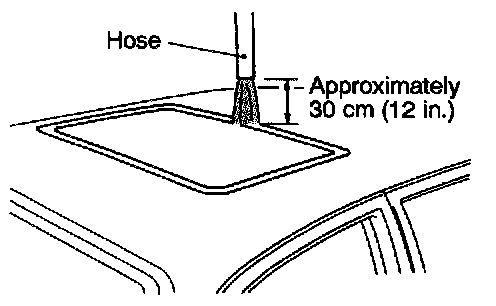

3. Pour water over the roof from approximately 30 cm (12 in.) above roof for more than 5 minutes.
4. While pouring water, check for leak around the roof lid.
5. In the event of leakage, check the drain pipe, weather strip contact and others.
