Shift Linkage: Service and Repair

REMOVAL AND INSTALLATION
INSTALLATION SERVICE POINTS
>A< SHIFT CABLE AND SELECT CABLE CONNECTION (TRANSAXLE SIDE)
SELECT CABLE





1. Connect the select cable to the transaxle side select lever.
2. Set the select lever of the transaxle side at the neutral position.

SHIFT CABLE

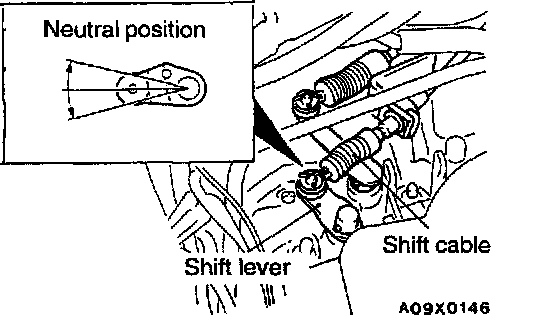

1. Connect the shift cable to the transaxle side shift lever.
2. Set the shift lever of the transaxle side at the neutral position.

>B< SHIFT CABLE AND SELECT CABLE CONNECTION (PASSENGER COMPARTMENT SIDE)

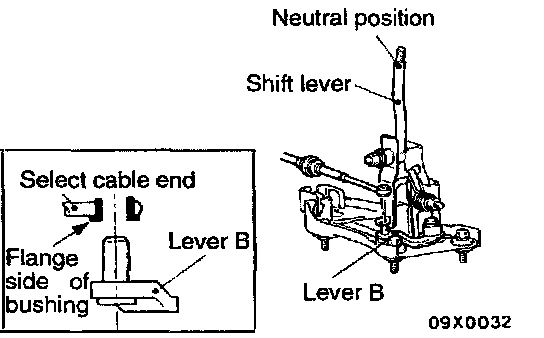

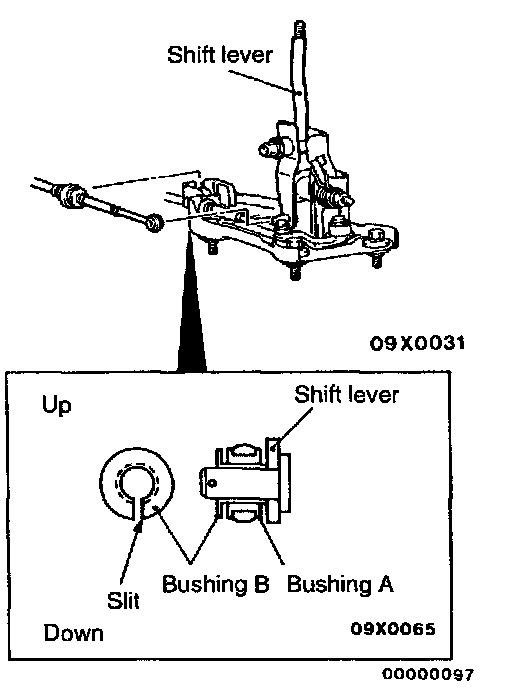

1. While leaving the shift lever inside the passenger compartment in the neutral position, install the shift cable to the passenger compartment side of the shift lever. Install so that the slit section of the bushing B is facing either up or down. 2. Put the shift lever to all the positions and make sure that the operation is smooth.

SHIFT CABLE





1. While leaving the shift lever inside the passenger compartment in the neutral position, install the shift cable to the passenger compartment side of the shift lever. Install so that the slit section of the bushing B is facing either up or down.
2. Put the shift lever to all the positions and make sure that the operation is smooth.
