Manual Transmission/Transaxle: Description and Operation

GENERAL INFORMATION
The F5MC1 transaxle internal components can only be serviced by separating the gear case from the bellhousing case. The transaxle output shaft is serviced as a unit, no disassembly and reassembly is possible. Damage to the transaxle may results.

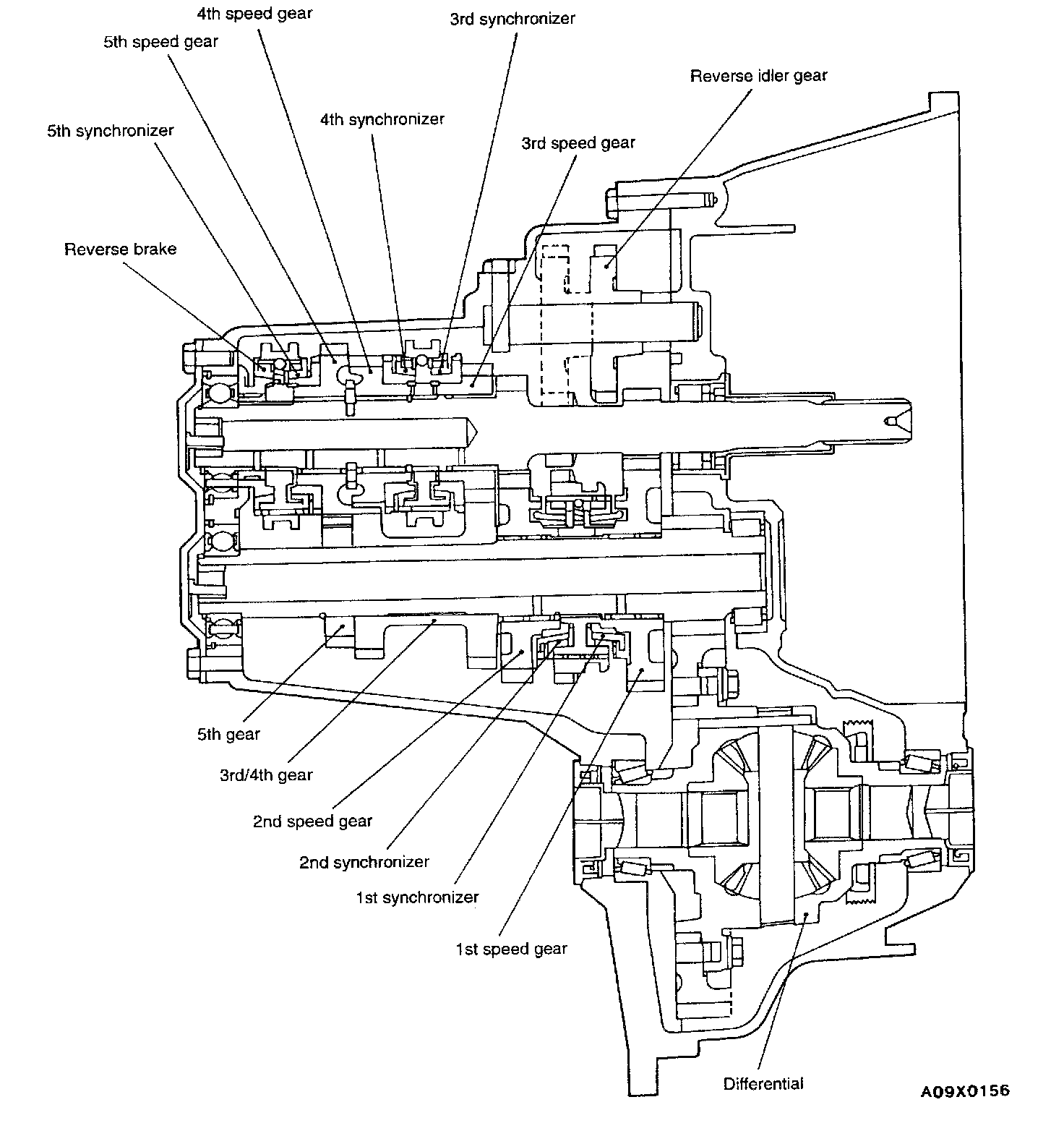

SECTIONAL VIEW
