Oil Pump Seal

DISASSEMBLY

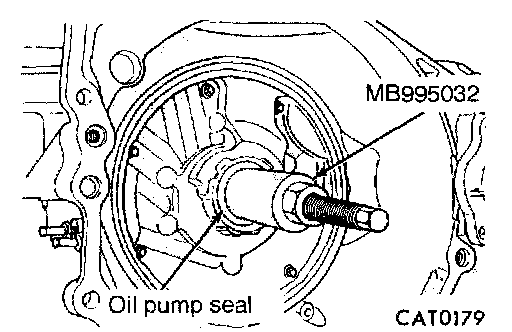

1. Remove oil pump seal with Seal Remover MB995032.

REASSEMBLY

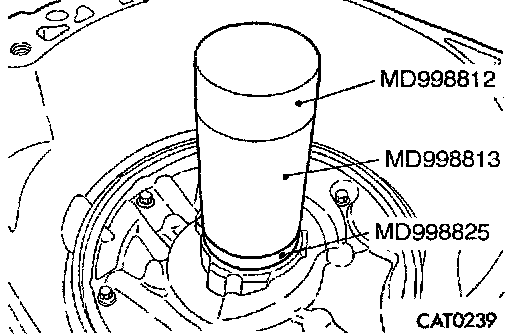

1. Install new oil pump seal with Installer Cap MD998812 Installer 100 MD998813 and Installer Adapter (52) MD998825.
