Thrust Plate, Thrust Washer, Reaction Plate, Snap Ring

THRUST PLATE, THRUST WASHER, REACTION PLATE, SNAP RING, SHIM FOR ADJUSTMENT

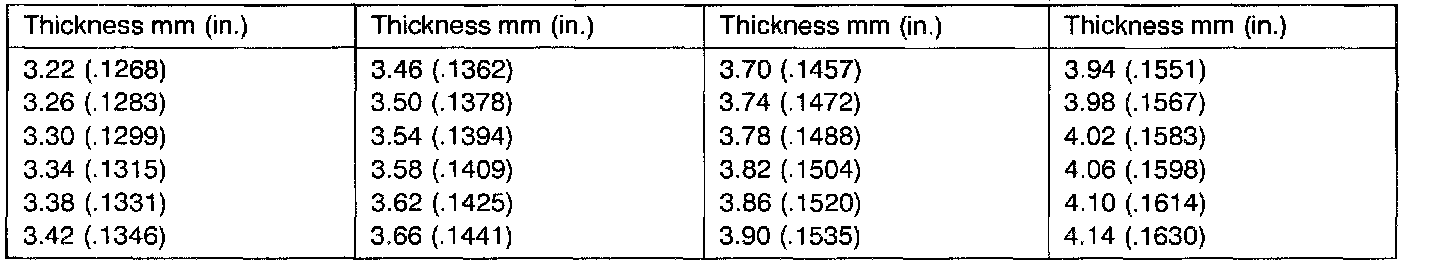

Thrust washer (For adjustment of differential side gear end play)

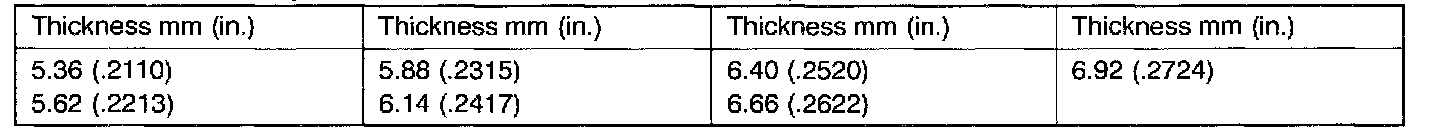

Reaction plate (For adjustment of low/reverse clutch clearance)

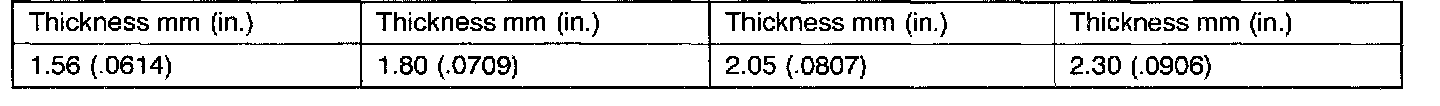

Thrust plate (For adjustment of input shaft end play)

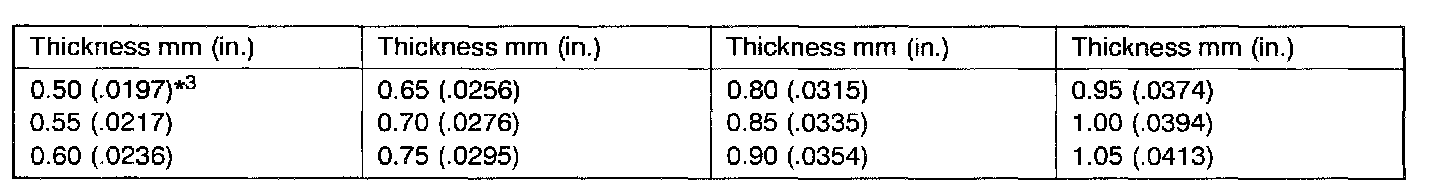

Reaction plate (For adjustment of underdrive clutch clearance)

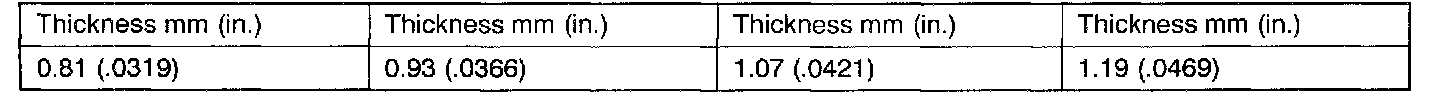

Snap ring (For adjustment of reverse clutch clearance)

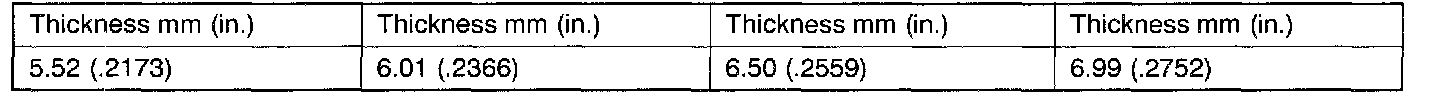

Shim (For adjustment of output gear bearing preload, transfer shaft bearing end play)

Shim (For adjustment of output gear bearing preload, transfer shaft bearing end play)

*1: Also used as "test" shim. (Output gear)
*2: Also used as "test" shim. (Transfer shaft)

Shim (For adjustment of differential bearing preload)

*3: Also used as "test" shim. (Differential bearing)
