General Information

The automatic transaxle comes in one model, namely, F4AC1.

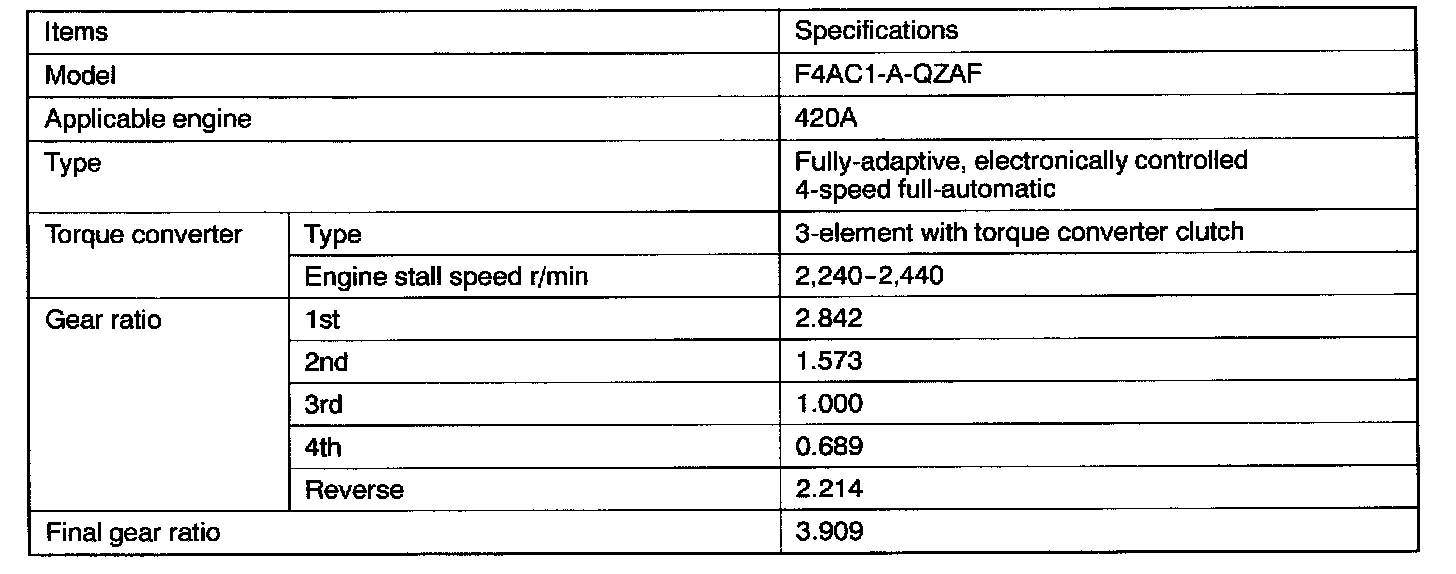

Description

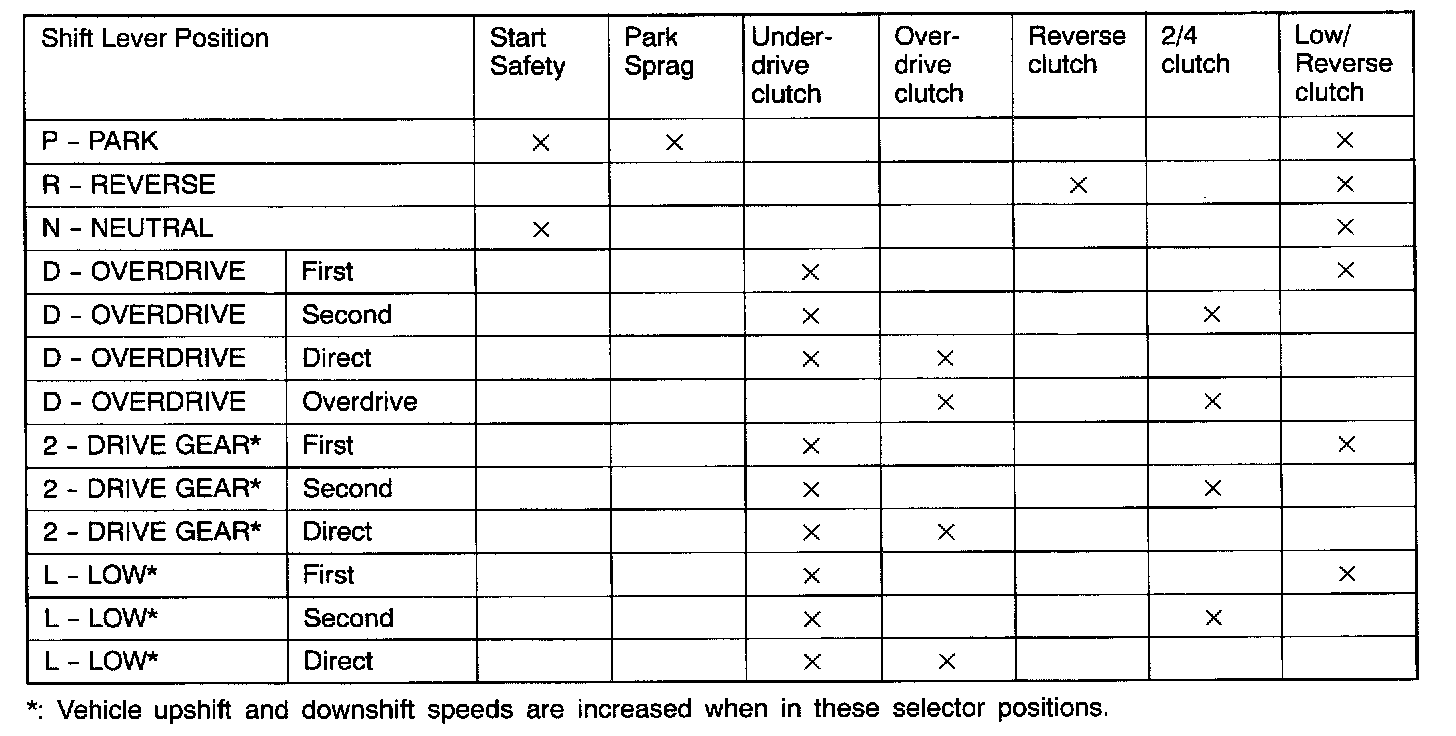

Function Element Table

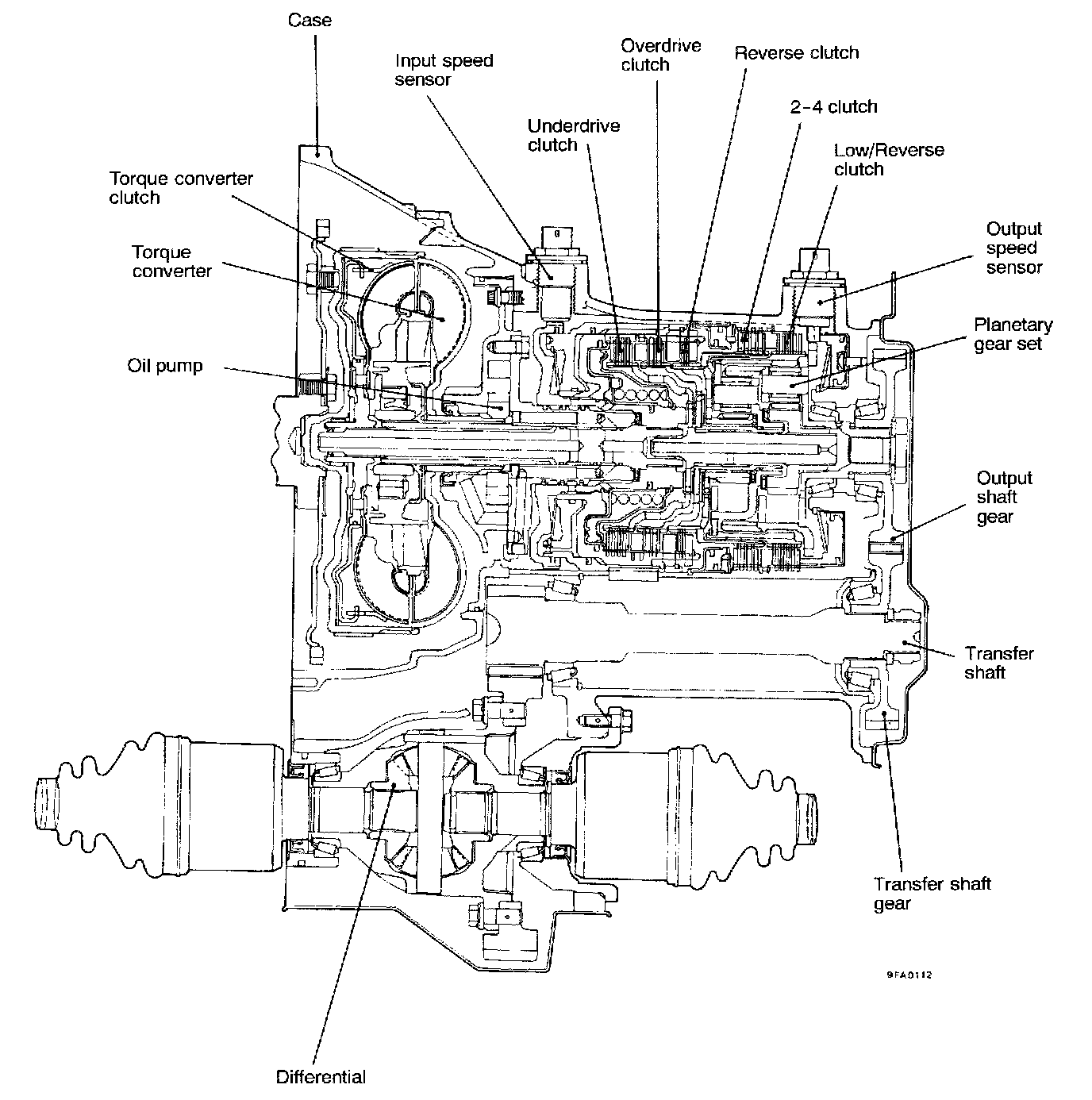

Sectional View
