Removal and Replacement

REMOVAL

Removal Service Point

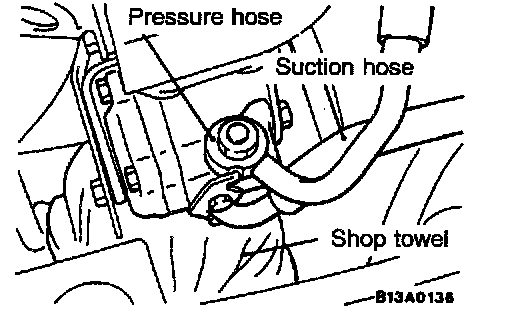

[A] Suction Hose/Pressure Hose Removal





CAUTION: A/C compressor is below the oil pump, so cover the A/C compressor with a shop towel before removing any hose.

INSTALLATION

Installation Service Point
]A[ Oil Pump Assembly Installation





For the vehicles with air conditioning, install the oil pump assembly to the bracket so that it faces toward the vehicle front. Then use the air conditioning tension pulley to adjust the belt tension.

INSPECTION
- Check the drive-belt for cracks.
- Check the pulley assembly for uneven rotation.
