Camshaft Position Sensor: Service and Repair

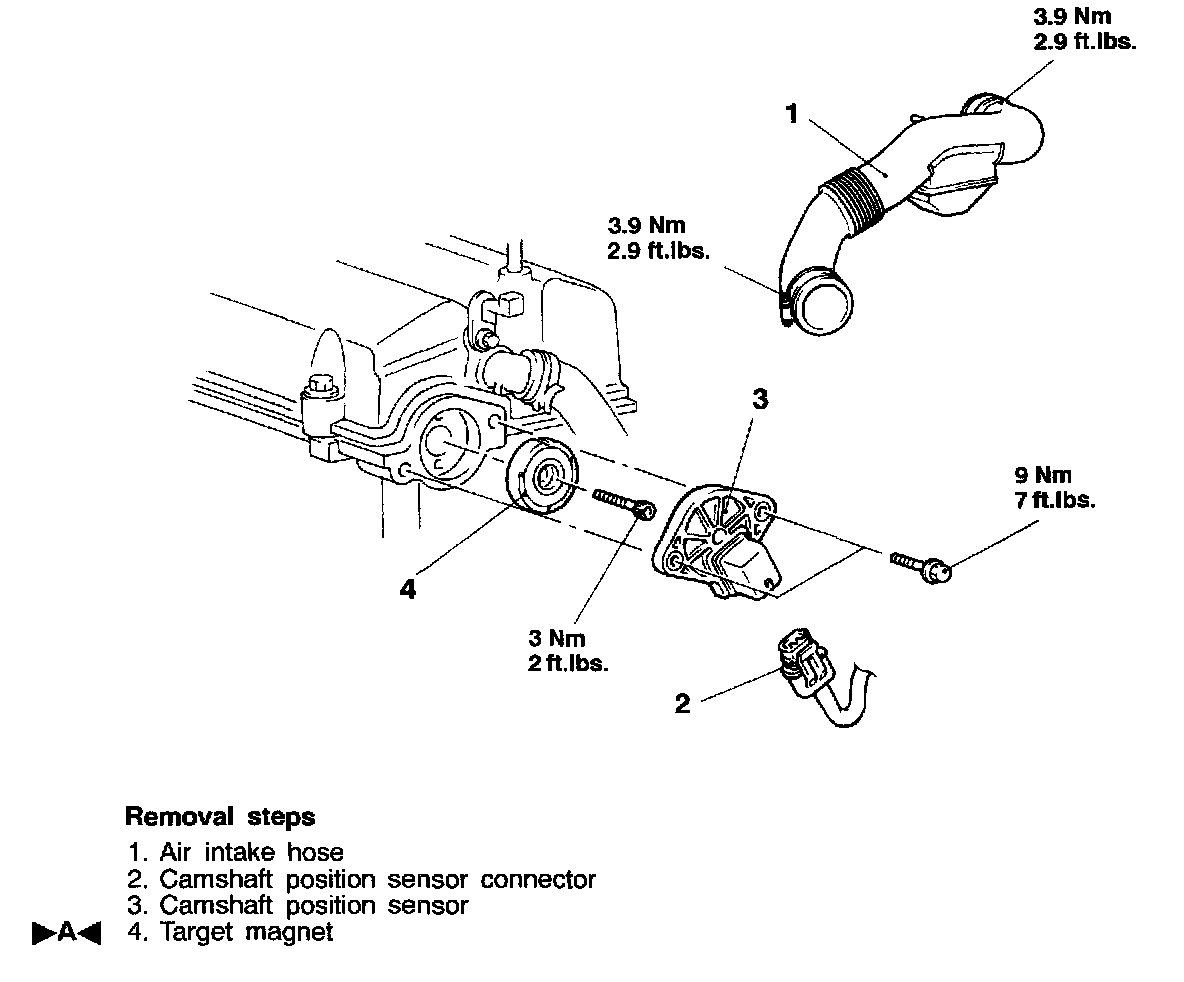

REMOVAL AND INSTALLATION




INSTALLATION SERVICE POINT

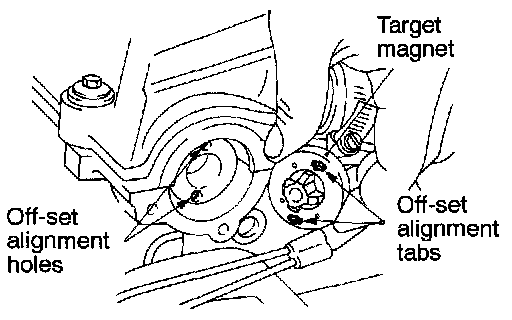

>A< TARGET MAGNET INSTALLATION
To install the target magnet, align the off-set tabs of the magnet with the off-set holes of the camshaft.
