Oil Temperature Sensor

OIL TEMPERATURE SENSOR CONTINUITY CHECK
1. Disconnect the transaxle range sensor connector.

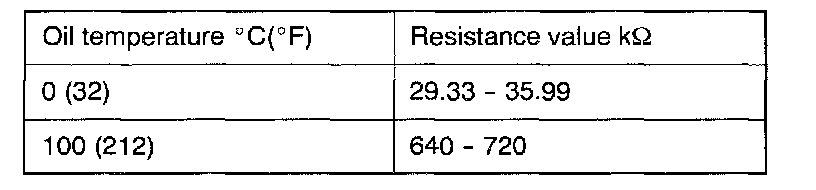

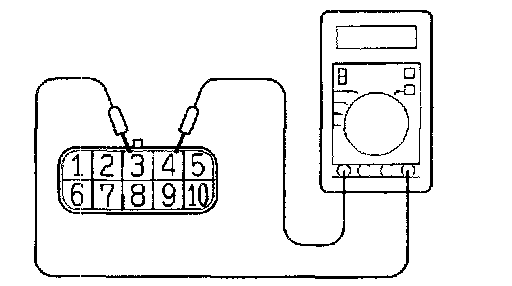

2. Measure the resistance between terminals 3 - 4 and check that the values are as shown in the table provided.
3. If the values are outside the standard values, replace the transaxle range sensor.
