Electrical Diagrams

ELC 4-Speed Automatic Transaxle (Part 1 Of 7):

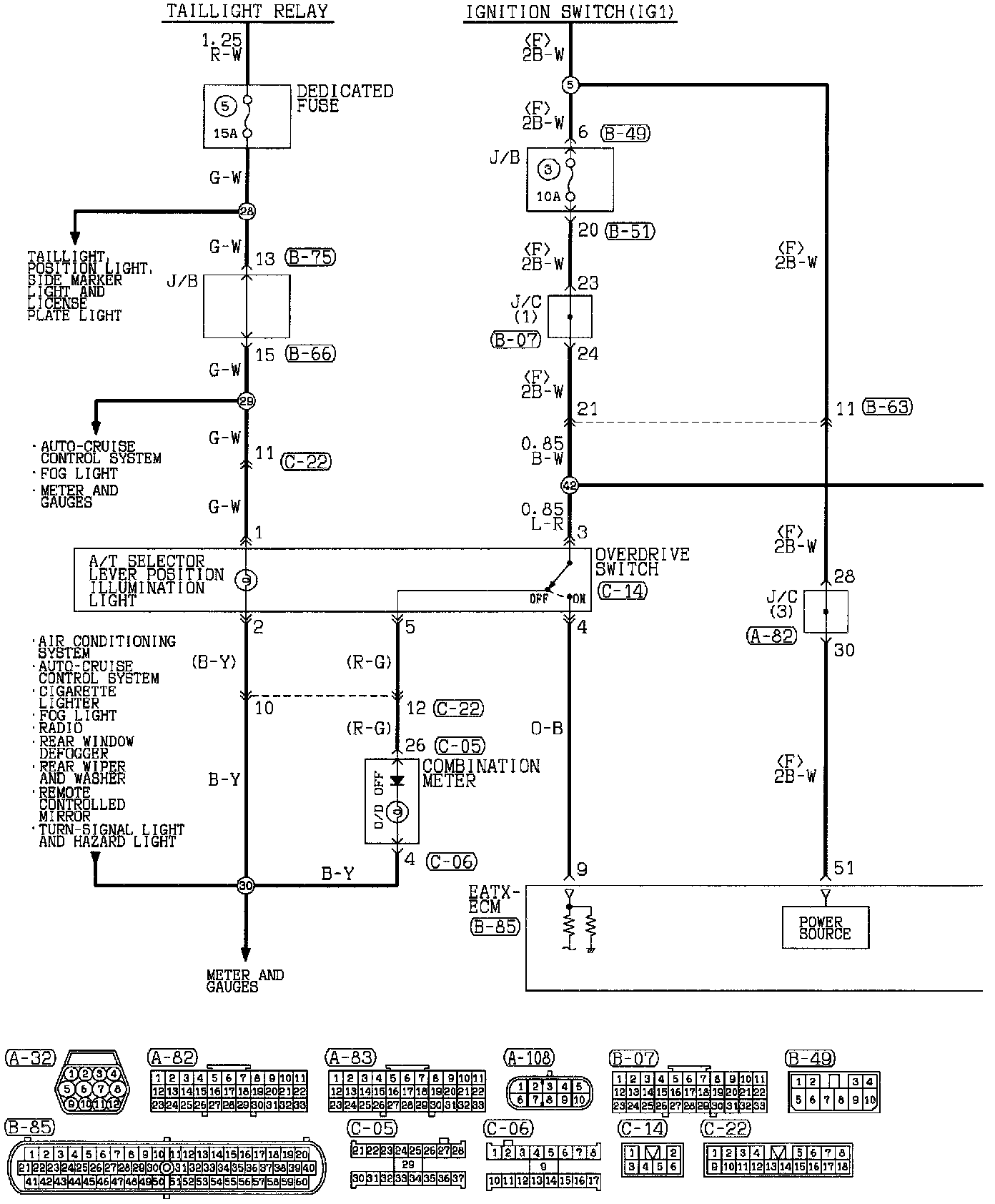

Combination Meter
Dedicated Fuse
EATX-ECM
- Power Source
J/B
J/C (1,3)
Overdrive Switch

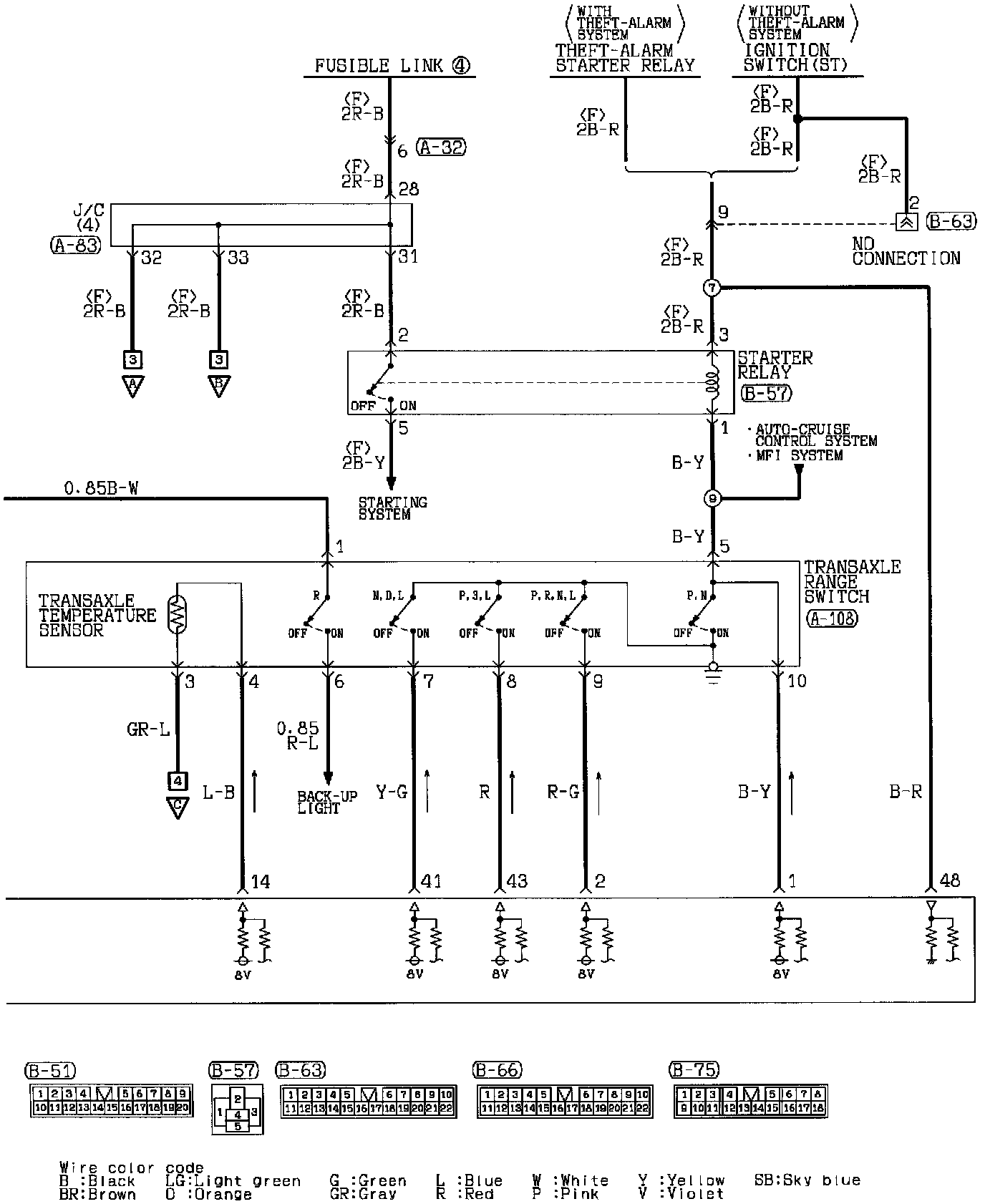

ELC 4-Speed Automatic Transaxle (Part 2 Of 7):

EATX-ECM
J/C (4)
Starter Relay
Transaxle Range Switch

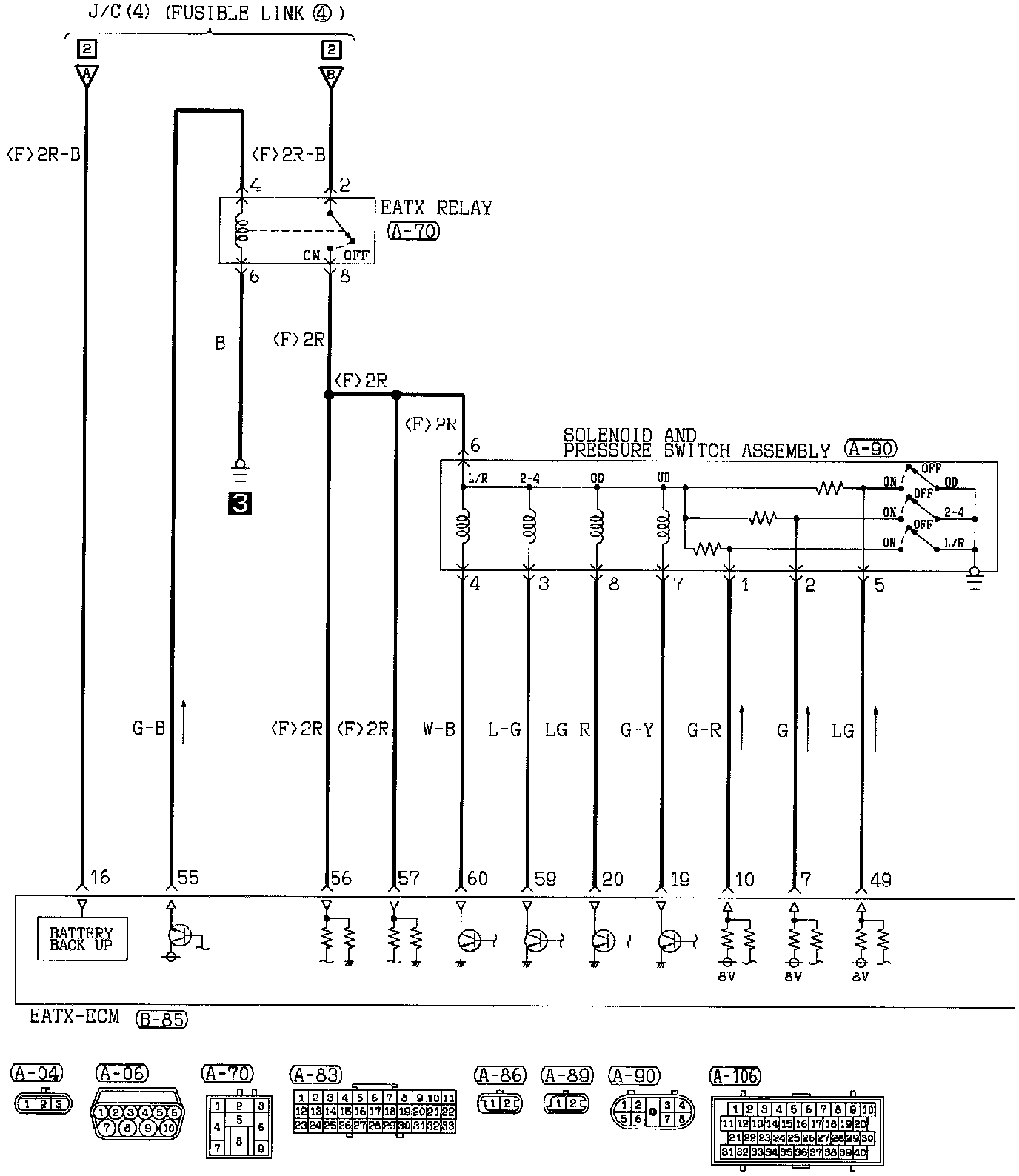

ELC 4-Speed Automatic Transaxle (Part 3 Of 7):

EATX-ECM
- Battery Back Up
EATX Relay
Solenoid And Pressure Switch Assembly

ELC 4-Speed Automatic Transaxle (Part 4 Of 7):

Crankshaft Position Sensor
EATX-ECM
Input Speed Sensor
J/C (4)
Output Seed Sensor
Powertrain Control Module

ELC 4-Speed Automatic Transaxle (Part 5 Of 7):

EATX-ECM
Engine Coolant Temperature Sensor
J/C (2,3 & 4)
MAP Sensor
Powertrain Control Module
Stop Light Switch
Throttle Position Sensor

ELC 4-Speed Automatic Transaxle (Part 6 Of 7):

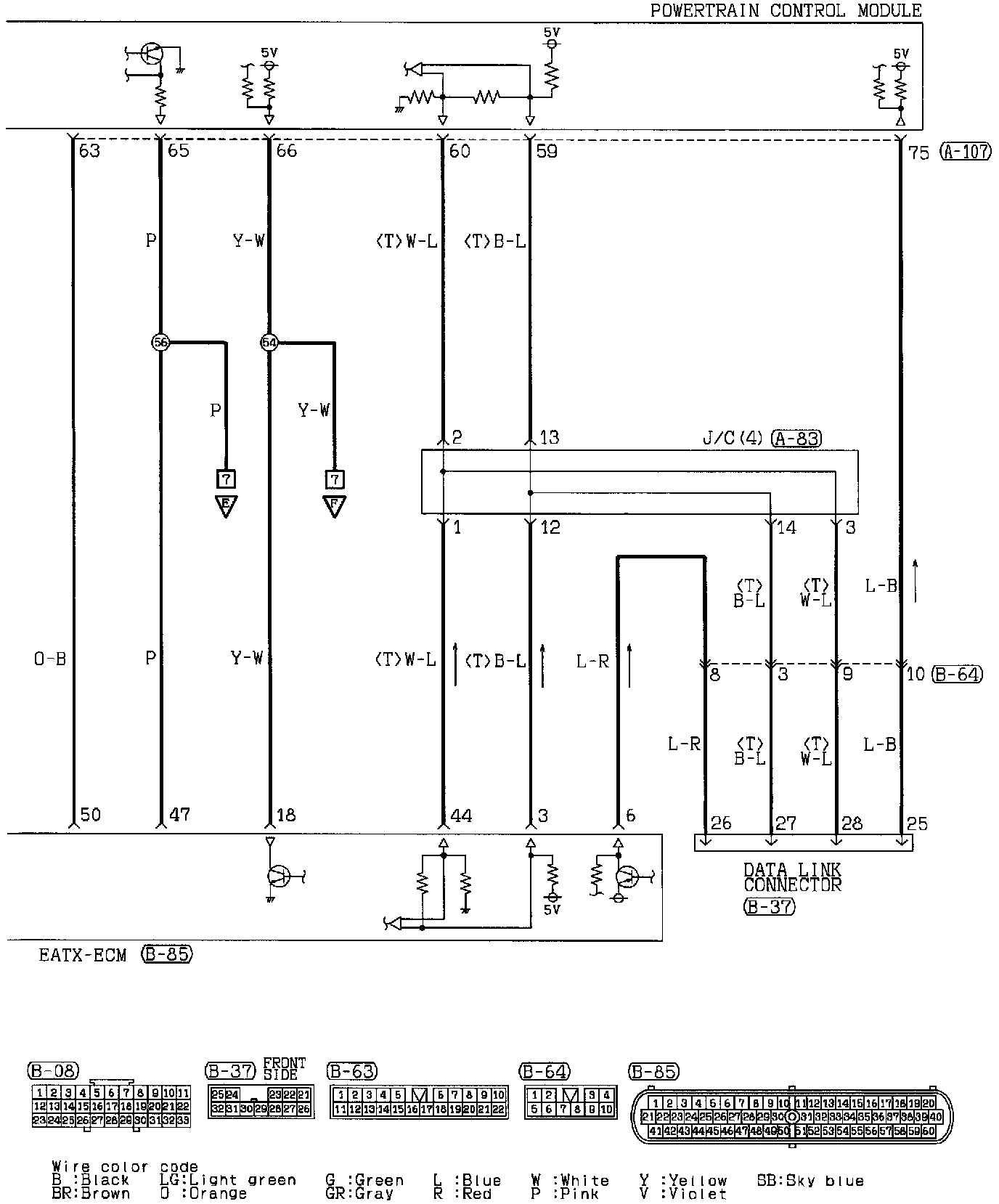

Data Link Connector
EATX-ECM
J/C (4)
Powertrain Control Module

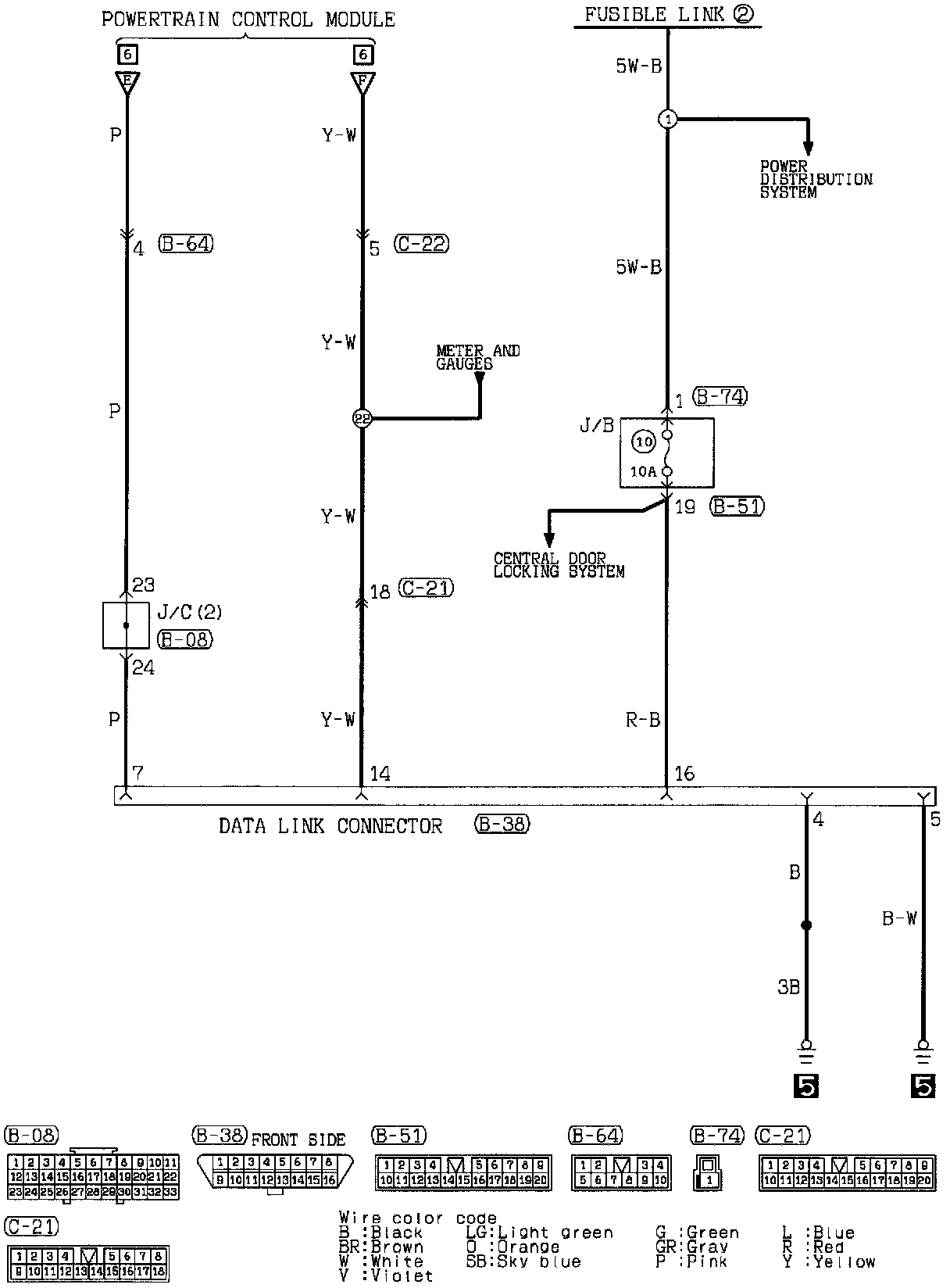

ELC 4-Speed Automatic Transaxle (Part 7 Of 7):

Data Link Connector
J/B
J/C(2)
