Removal and Installation

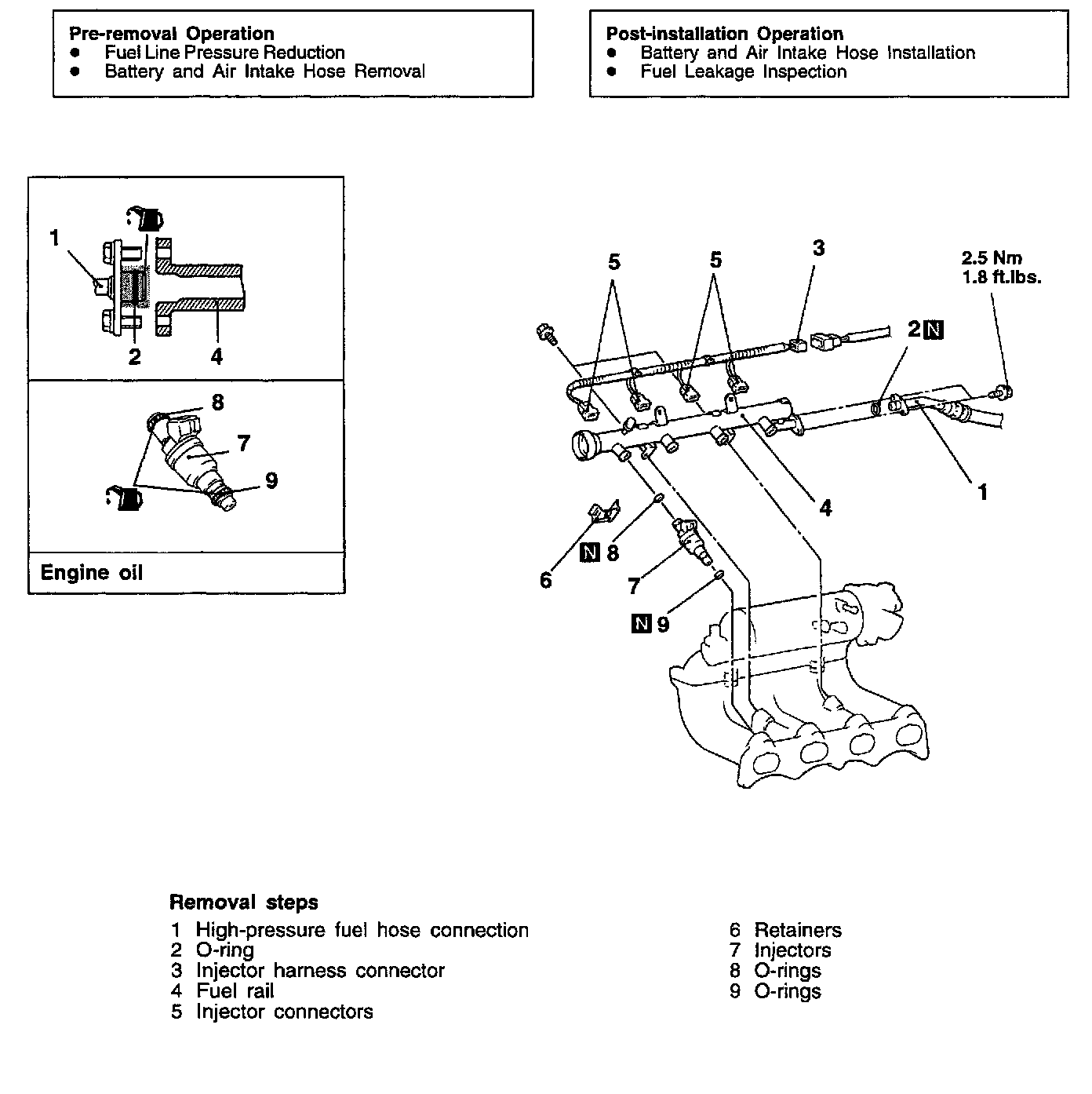

COMPONENTS

REMOVAL STEPS
1. High-pressure fuel hose connection
Remove the fuel rail (with the injectors attached to it)

CAUTION: Do not drop the injector.

2. O-ring
3. Injector harness connector
4. Fuel rail
5. Injector connectors
6. Retainers
7. Injectors
Remove the fuel rail (with the injectors attached to it)

CAUTION: Do not drop the injector.

8. O-rings
9. O-rings

INSTALLATION STEPS
Installation is in the reverse order of Removal.

1. High-pressure fuel hose connection
When connecting the high-pressure fuel hose to the fuel rail, apply a small amount of engine oil to the hose union, and then insert, being careful not to damage the O-ring.

CAUTION: Do not let the engine oil get into the fuel rail.

2. O-ring
3. Injector harness connector
4. Fuel rail
5. Injector connectors
6. Retainers

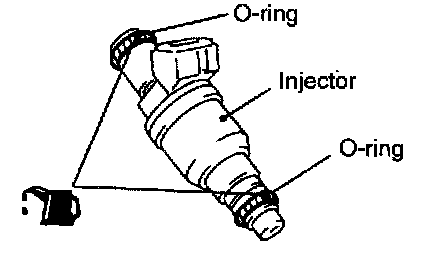

7. Injectors




1. Apply a small amount of clean engine oil to the O-ring.

CAUTION: Do not let the engine oil get into the fuel rail.

2. While turning the injector to the left and right, install it to the fuel rail.
3. Check to be sure that the injector turns smoothly.
If it does not turn smoothly, the 0-ring may be trapped, remove the injector and then reinsert it into the fuel rail and check again.

8. O-rings
9. O-rings
