Input/Output State Tests Reference Tables

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

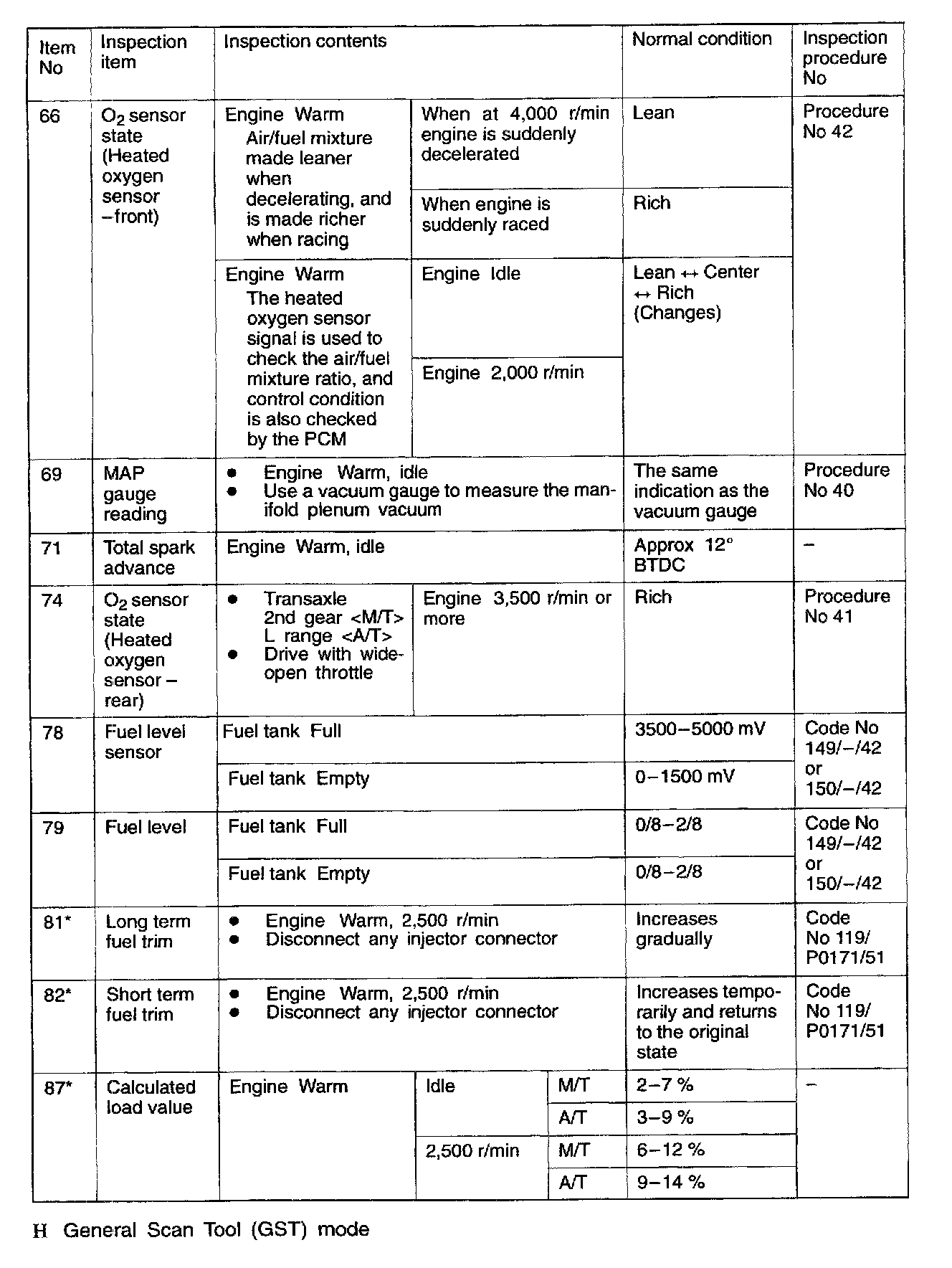

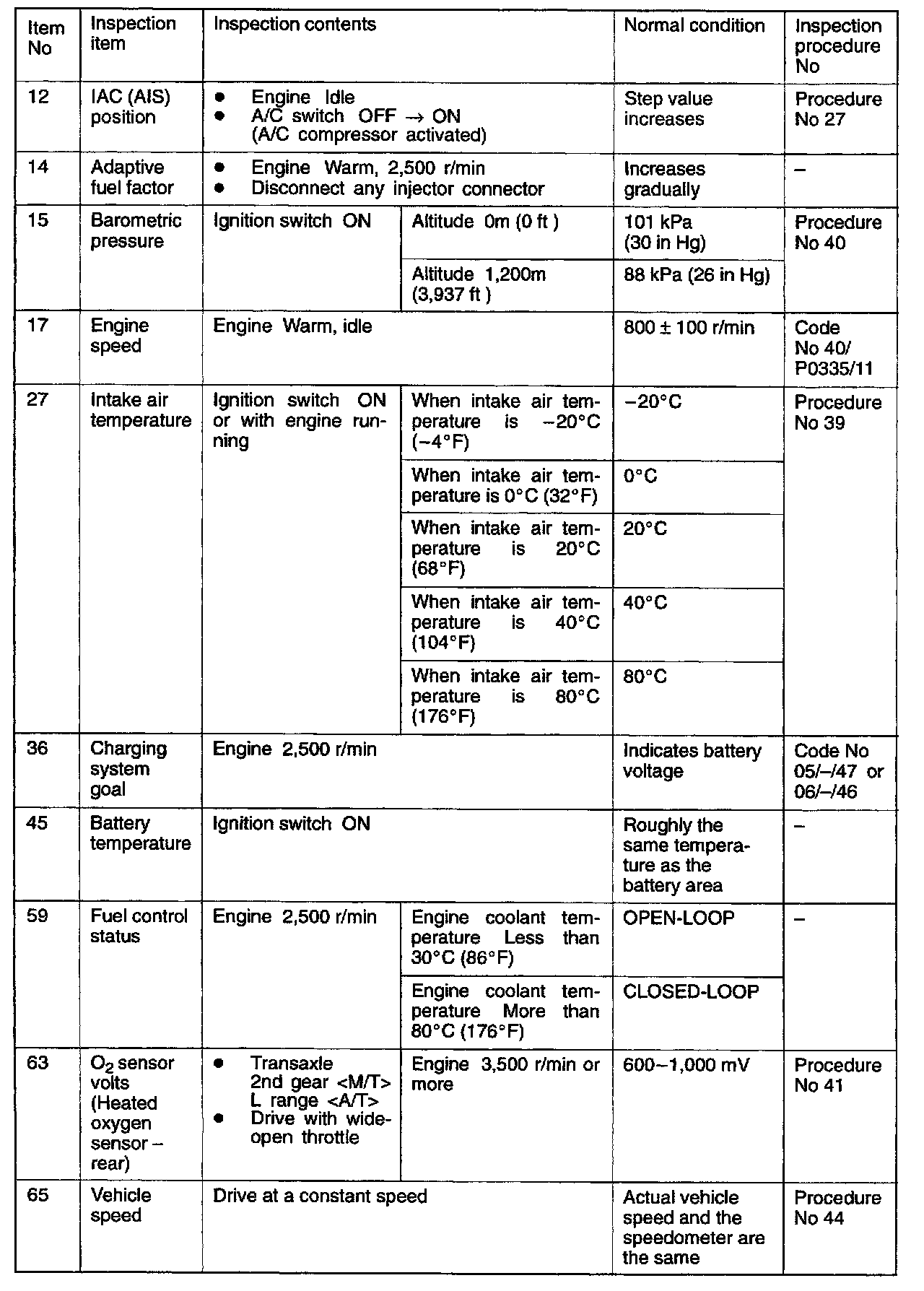

SENSOR READ TESTS (DATA LIST) REFERENCE TABLE

CAUTION:
1. When shifting the select lever to D range, the brakes should be applied so that the vehicle does not move forward.
2. When checking while driving the vehicle, always be sure to have two people riding in the vehicle.

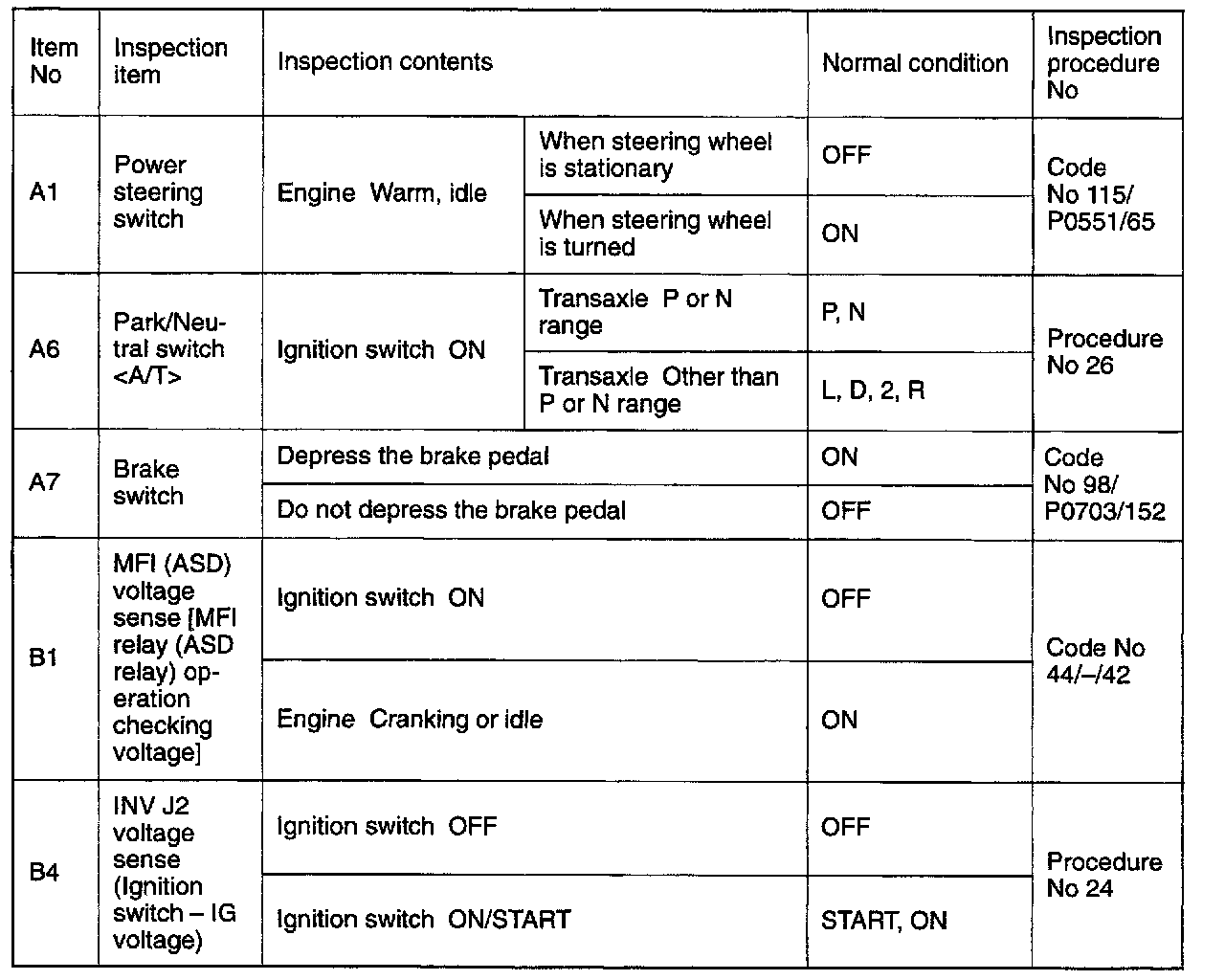

INPUT STATE TESTS (DATA LIST) REFERENCE TABLE

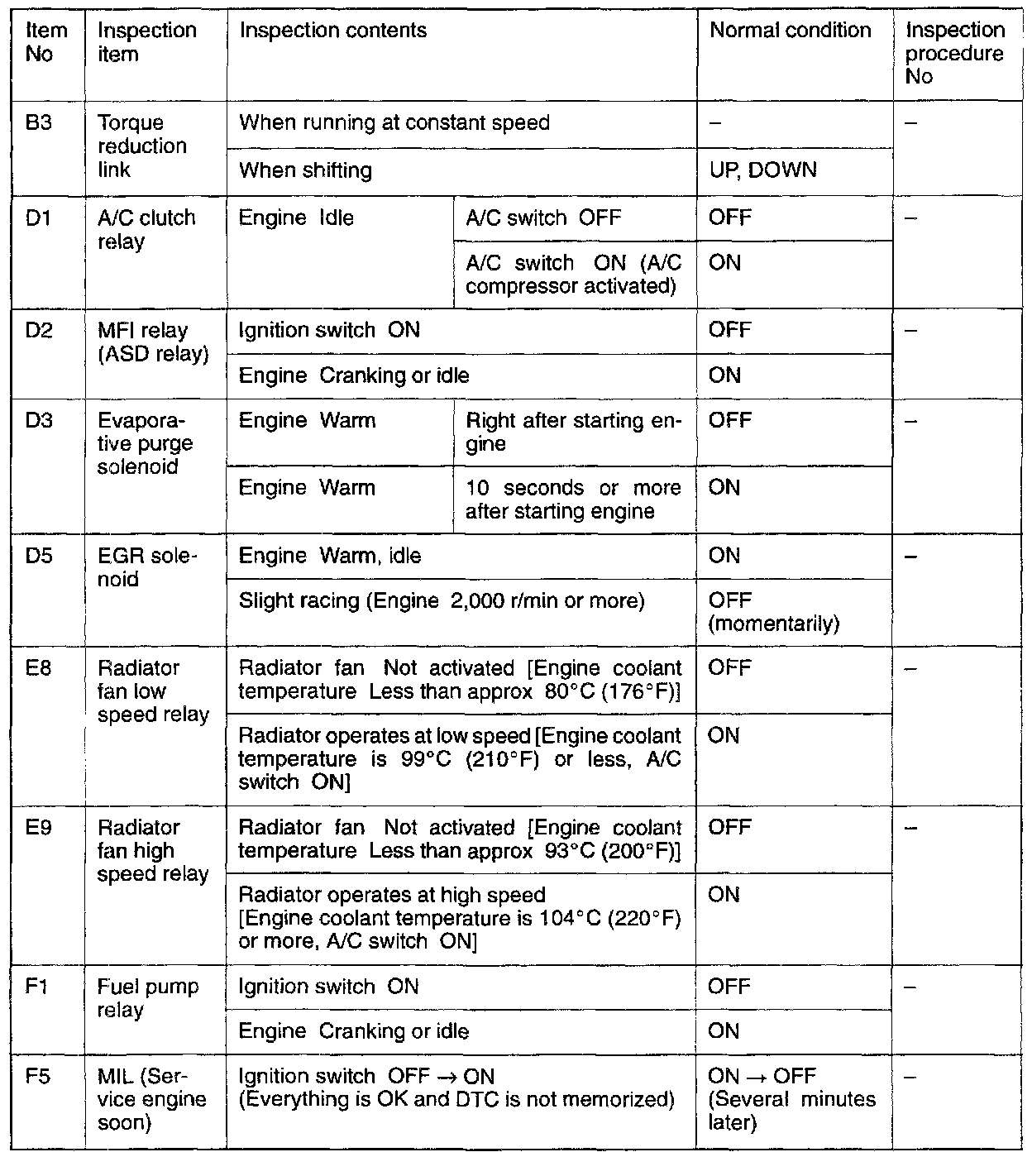

OUTPUT STATE TESTS (DATA LIST) REFERENCE TABLE
