Mode 6 Data
Mode 6 Data
CAUTION:

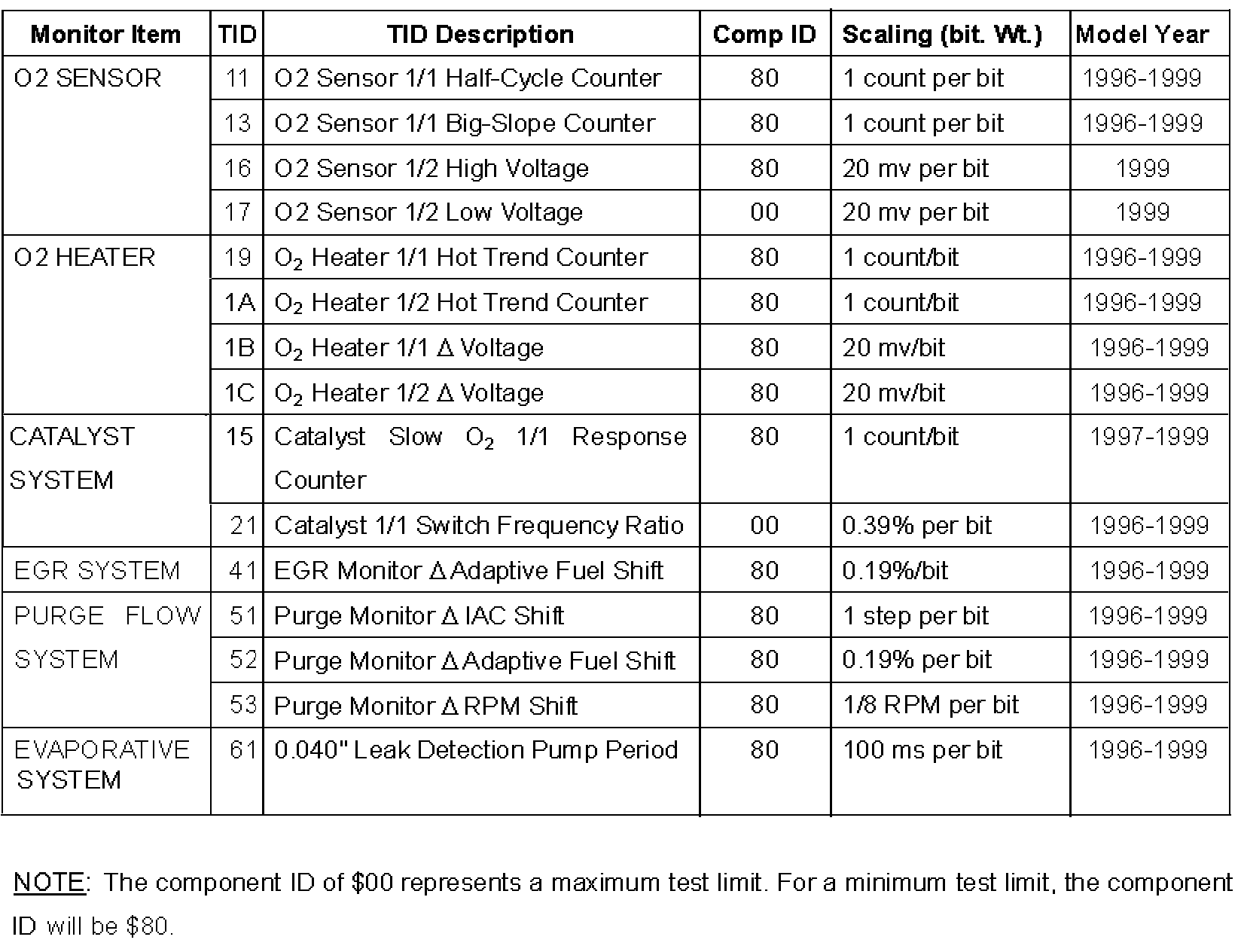

The following table lists the supported test IDs for the 420A engine ONLY.
Test IDs 11 - 61:
