Fail-Safe Function Reference Table

Part 1 Of 2:

Part 2 Of 2:

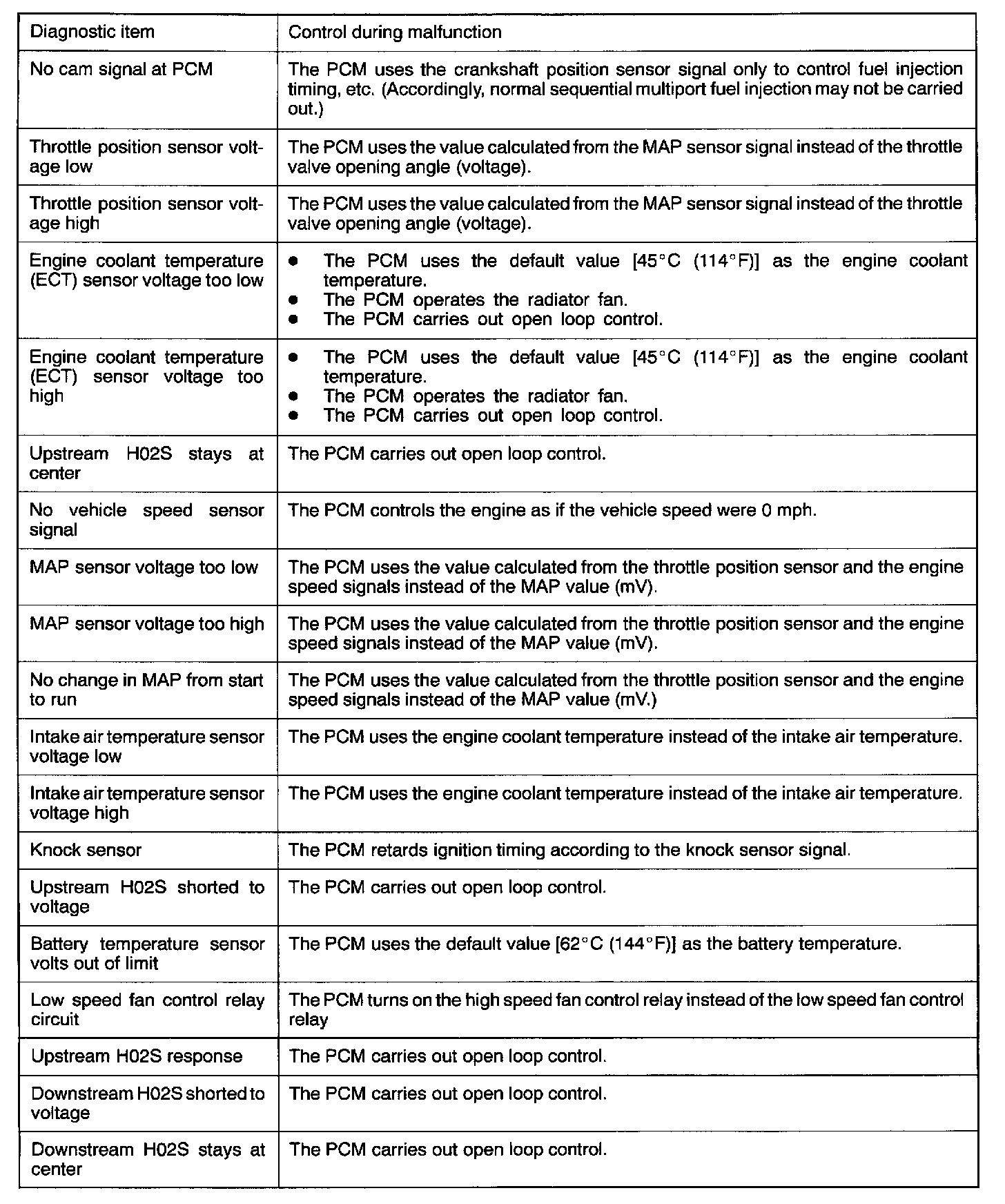

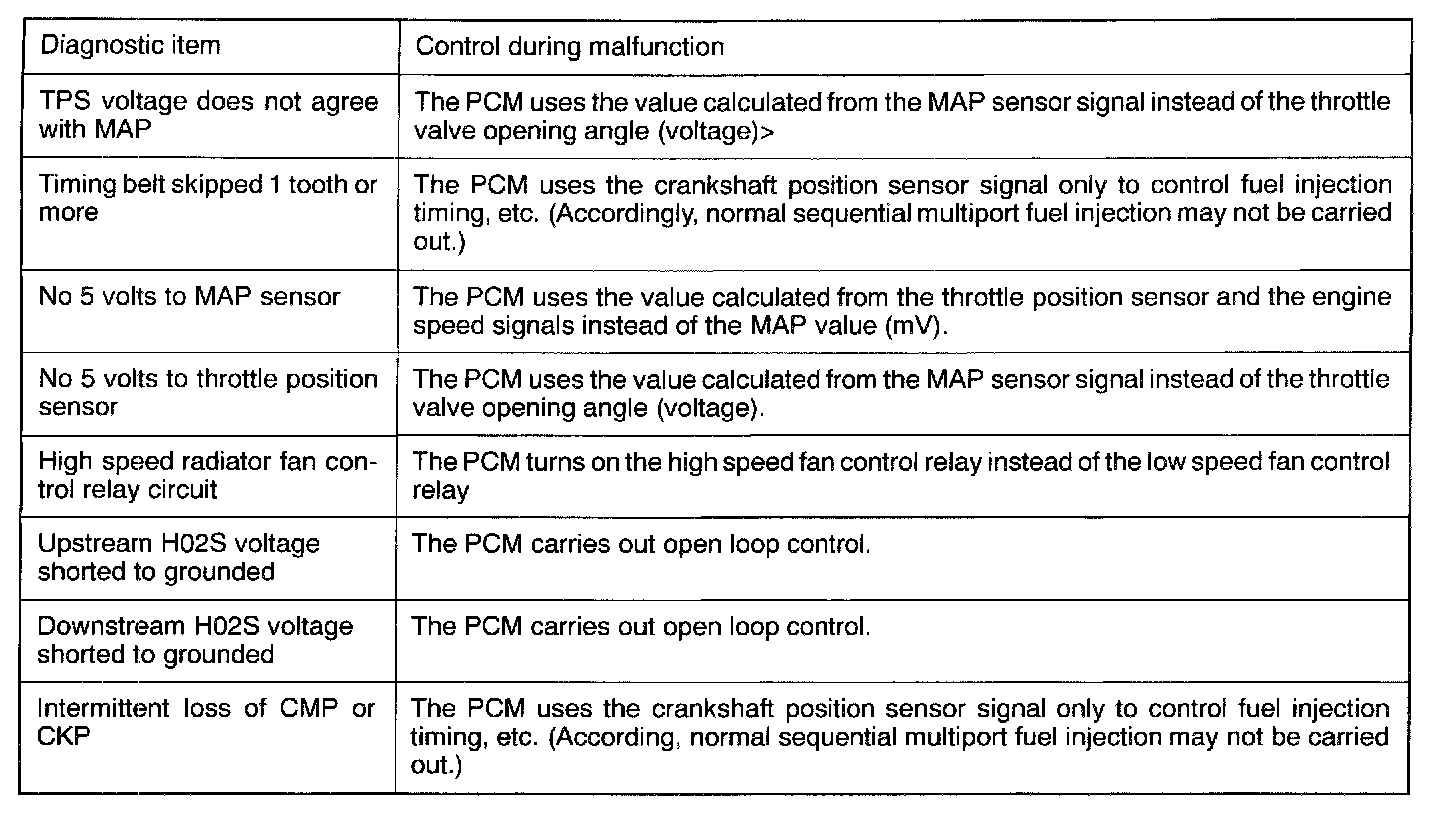

FAIL-SAFE-BACKUP FUNCTION (Limp-In Mode) TABLE
When the PCM detects the following malfunction (s), the PCM carries out fail safe/back-up control. In addition, the corresponding DTC number (s) can be identified by using the scan tool.
