Component Inspection

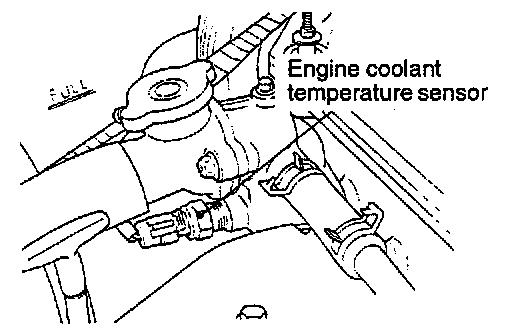

ENGINE COOLANT TEMPERATURE SENSOR CHECK

1. Disconnect the engine coolant temperature sensor connector.

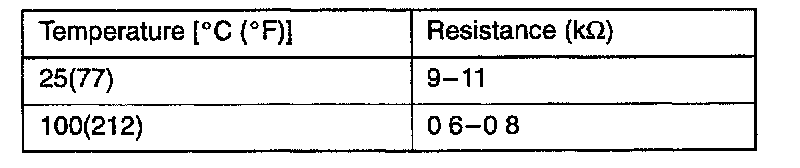

2. Measure the resistance between the sensor terminals.
