Component Inspection

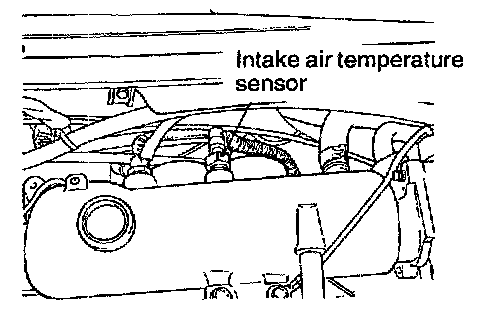

INTAKE AIR TEMPERATURE SENSOR CHECK
1. Disconnect the intake air temperature sensor connector

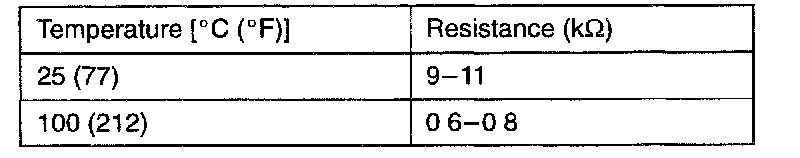

2. Measure the resistance between the sensor terminals

INSTALLATION
1. Apply sealant to threaded portion.
Specified sealant: Loctite 24200 or equivalent
2. Install intake air temperature sensor and tighten it to specified torque.
Sensor tightening torque: 7 Nm (5 ft.lbs.)
3. Fasten harness connectors securely.
